SECTION 3 - CHASSIS, PLATFORM & SCISSOR ARMS
3-70
– JLG Lift –
3121249

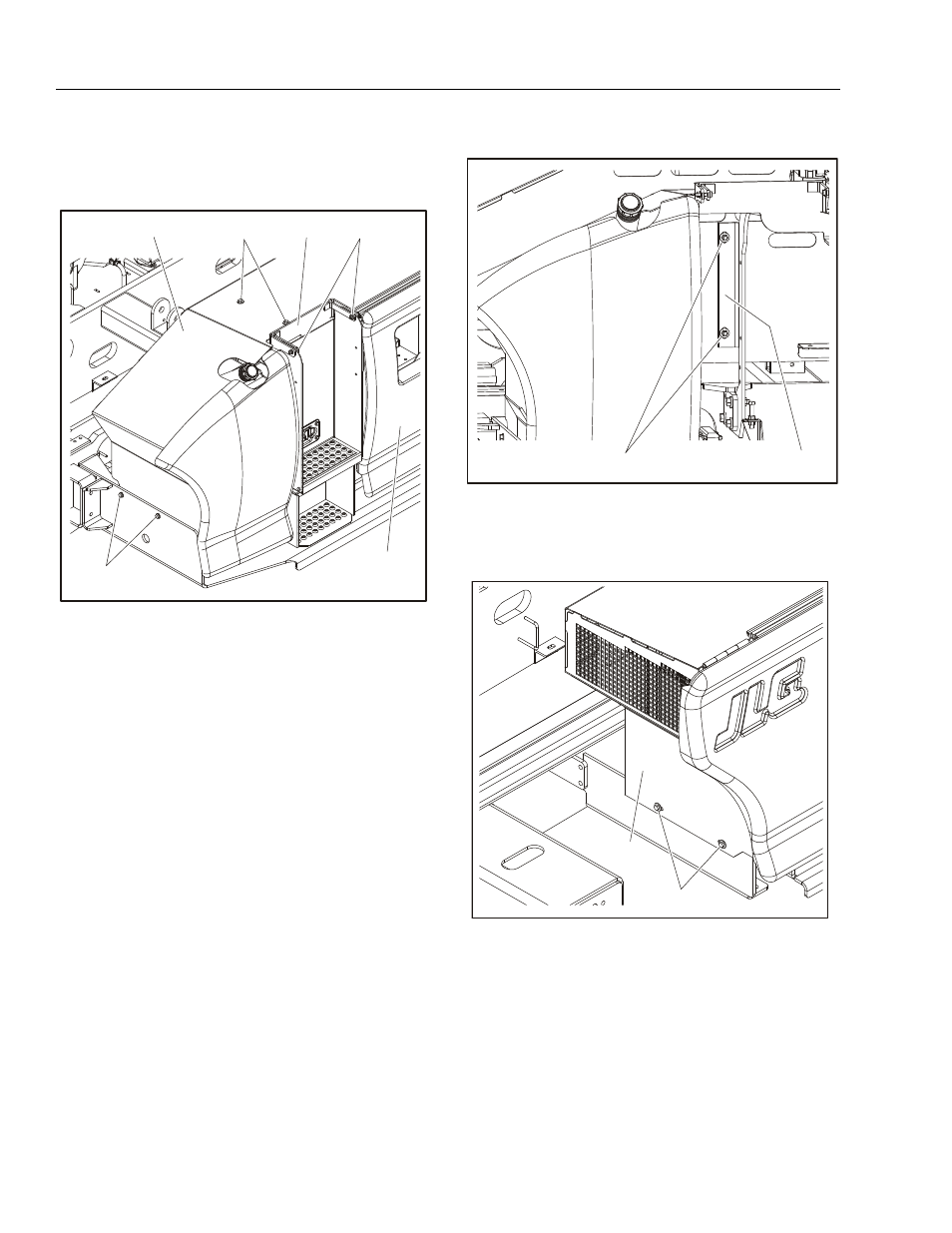

3.10 SIDE COMPARTMENT COVERS
REMOVAL:
Front:
NOTE: Procedures apply to both left and right side compart-
ment hoods.
1. Elevate the platform to a height where, when
removed and lifted, the compartment covers (1)
clear the underside of the platform. Engage the arm
safety prop and/or block the scissor arms to prevent
lowering.
2. Disable machine operation.
3. Attach lifting straps to each end of the hood and
support with an overhead lifting device.
4. Remove the four bolts (2), washers, (3) and nuts (4)
from the front and top of the cover.
NOTE: On engine side only, remove the exhaust tail pipe
from the cover by removing the bolts, washers, and
nuts.
5. Disconnect the the ladder from the bracket (9) by
removing the two screws (5) washers (6) and nuts
(7).
Inside:
6. Open the hood (8).
7. Remove the two bolts (2), washers, (3) and nuts (4)
attaching the cover to the bracket (9).
Rear:
8. Remove the two bolts (2), washers, (3) and nuts (4)
from the rear of the cover.
9. Carefully lift the cover up and away from the
machine.
10. Remove the bolts on the two hinges (not shown)
and detach the gas springs to remove the hood from
the cover (not shown).
INSTALLATION:
1. Follow Removal Steps in reverse.
1
2, 3, 4
2, 3, 4
5, 6, 7
8
9
1. Compartment Cover
2. Bolt, 3/8"-16NC x 1 1/8"
3. Washer
4. Nut
5. Screw, 3/8" x 1"
6. Washer
7. Nut
8. Hood
9. Bracket
2, 3, 4
9
2, 3, 4
1
