Product Overview 24
WLA-AWCG User Manual
AirStation Pro ports
On the side panel of the AirStation Pro are a number of ports see “LED Indicators”
on page 22 .
3.2.1 Access point to access point communication
External access point communication
The AirStation Pro enables numerous variations of communication, including
Wired communication, Wireless communication and communication utilising an
external antenna. The following diagrams illustrate some possible connection
configurations.

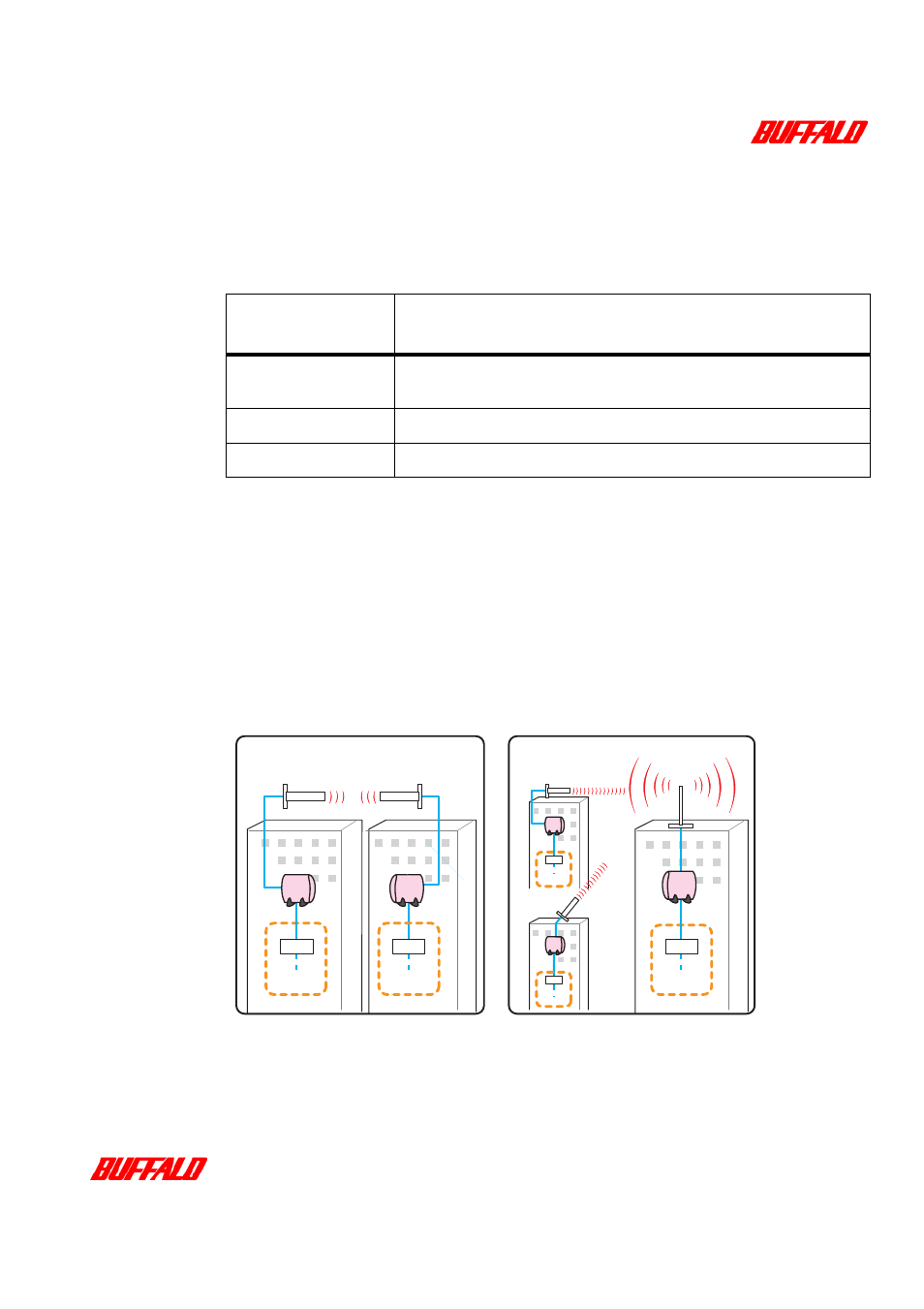

Figure 19: AP to AP communication between buildings using an external antenna
AirStation Pro
ports
User
INIT The initialise button, if held for three seconds, the AirStation Pro
settings will revert to the original factory settings.
10/100M Connect the network cable to this port.
DC Connect the DC power adapter to this port.
Table 8: AirStation Pro ports
LAN LAN
LAN
1.5km
Hub Hub
LAN
300‘- 500m
Hub
LAN
LAN LAN
Hub
Hub
WLE-HG-DYG
WLE-HG-DYG
WLE-HG-DYG WLE-HG-DYG
WLE-HG-NDC
WLE-CC WLE-CC WLE-CC
AirStation Pro
AirStation Pro
AirStation Pro AirStation Pro
AirStation Pro
