Product description
Multipette ® /Repeater ® (X)stream
English (EN)
2 Product description
2.1 Main illustration

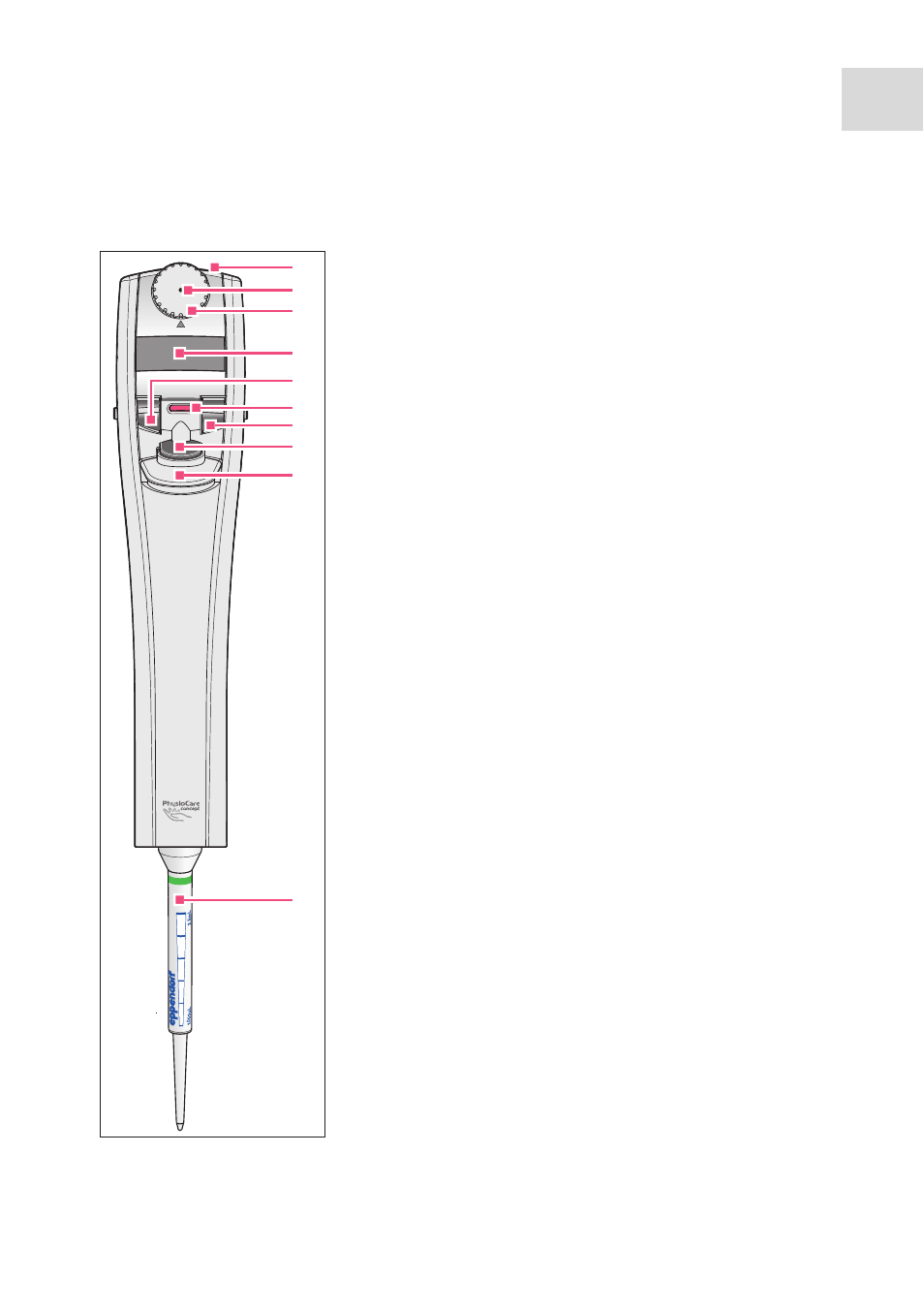

Abb. 2-1:Front view
Fig. 2-1: Front view
1 Connector socket
For connecting the charging plug of an Eppendorf
Multipette stream/Repeater stream power supply
device.
2 Hardware reset button
Triggering a hardware reset interrupts the power
supply (see p. 40).
3 Selection dial
For setting the operating mode.
Depending on the Multipette stream/Repeater
stream version, different operating modes are
available. The illustration shows the Xstream.
4 Display (illuminated)
Displays the parameter settings (volume, dispensing
steps, speeds) and provides feedback and
information on the operating steps.
5 Select rocker switch
For switching between the execution and editing
displays.
6 Reset key
For stopping or canceling dispensing operations
(see p. 34).
7 +/- rocker switch
For changing parameters. Higher speed level with
volume change when you press the +/- rocker switch
more firmly.
8 Actuate key
For triggering dispensing operations. For saving
entries during editing and for returning to
dispensing.
9 Ejector
Releases the inserted Combitip.
10 Combitip advanced
Dispenser tip
