• Menu navigation and structure:
Menu navigation
 Press the "Menu" key (M).
 Select the menu by turning the right rotating/pressing knob (J) to the right
or left.
 Open the menu item by pressing the right rotating/pressing knob (J).
 Turn the rotating/pressing knob (J) to select the desired menu option and edit
the values or settings.
 Press the rotating/pressing knob (J) to get into sub menu items to active/inac-
tive to switch settings or to confirm settings ("OK").
 Press the "Back" button (N) to a setting or cancel to return to the previous
menu.
 Press the "Menu" button (M) to return directly to the working screen.
Control elements for
menu navigation
J
M
N
Note: If you press the “Menu“ key (M), the system skips directly back to the working screen.
If you press the “Back“ key (N), the system skips back to the previous screen.
Menu
Menu navigation:  Press the “Menu“ key (M) and rotate rotating/pressing knob (J)
 Press the ”Back” key (N) or the ”Menu” key (M)
A
0.00
int °C
ext °C
int 0.00 1000
set °C Pump rpm
Safe Temp °C
TEMPERING
Heating
Control
Limits
Temperature Sensor
> Heating
Control
Control Mode
Control Parameters
Fluids
> Heating > Control
Control Mode
Internal (int)
External (ext)
Menu
Back Back Back Back
MENU

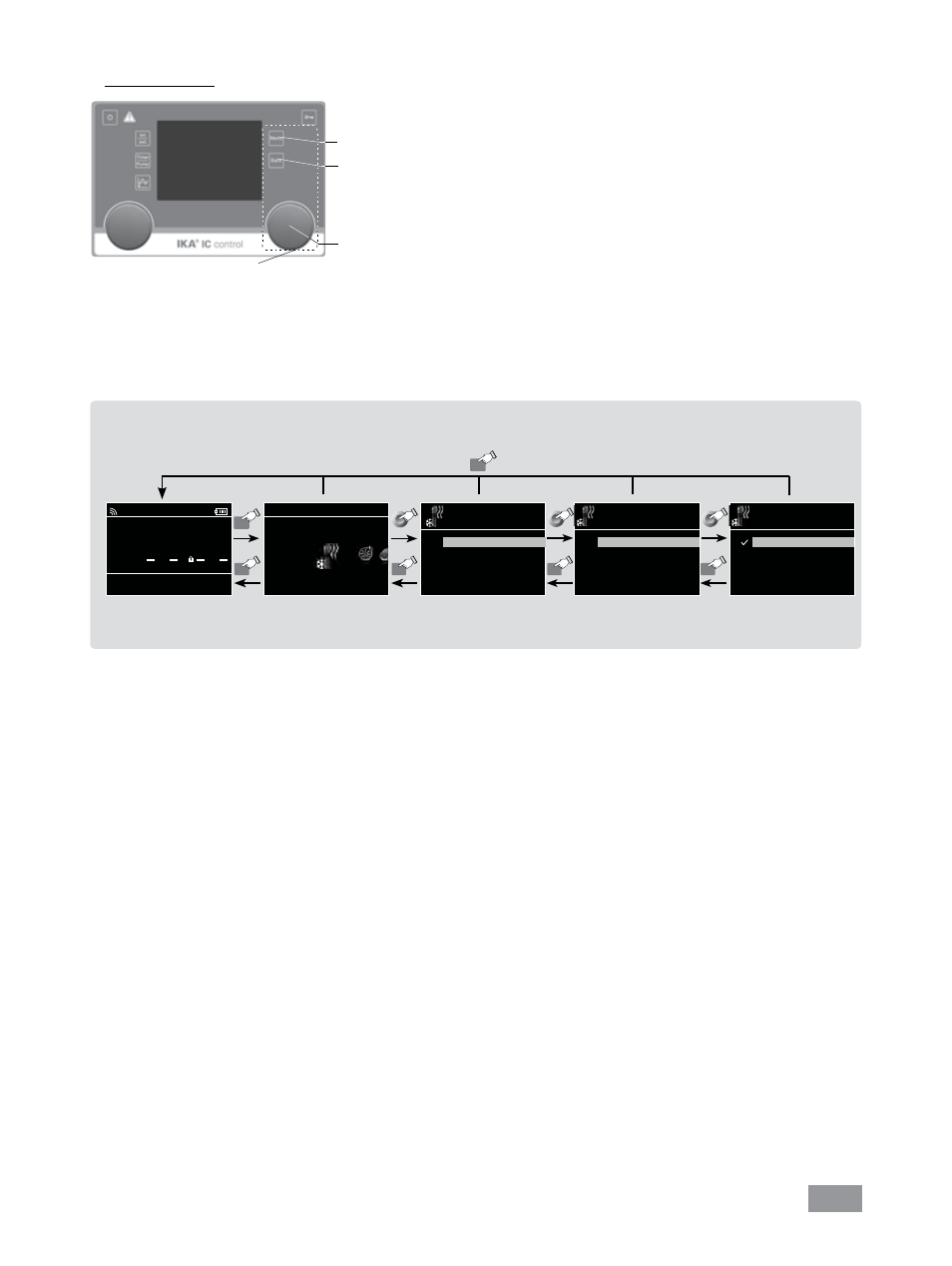

Fig. 24
Fig. 25
Note: When the tempering or pump functions are active, the menu is locked. On the display, the active menu option is
highlighted in yellow. The active status of a menu item is marked with a check (√).
