39

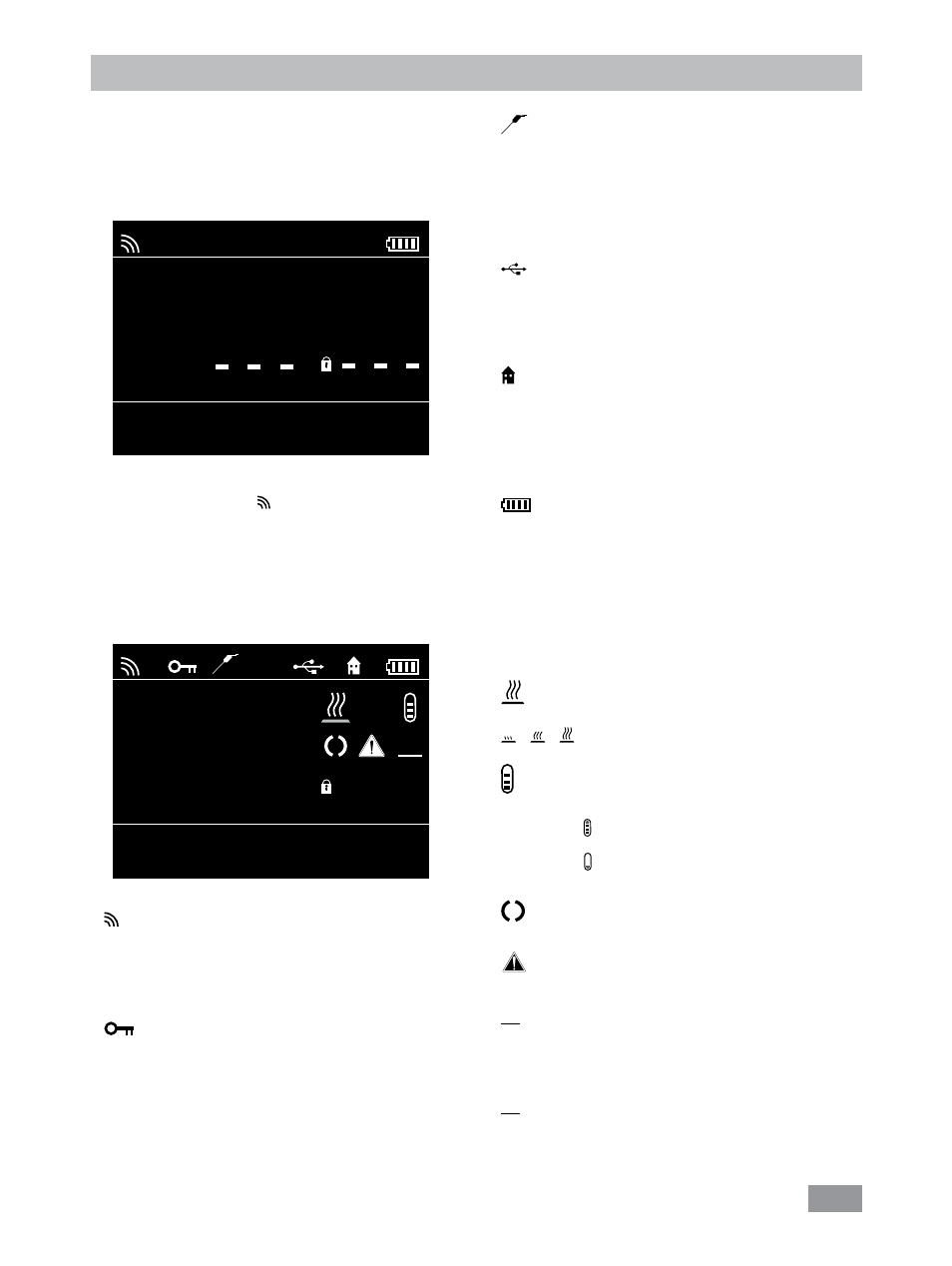

Working with Wireless Controller (WiCo)
• Working screen at the time of delivery:
The start and information screen (see section "Commis-
sioning") appears for a few seconds after the WiCo is
switched on. After this, the following working screen ap-
pears automatically in the display.
A
0.00
int °C
ext °C
int 0.00 1000
set °C Pump rpm
Safe Temp °C
• Explanation of symbols on the working screen:
The symbols displayed change depending on the status
and settings of the WiCo and the station. The screen
below shows the most significant symbols on the work-
ing screen.
A
200.00
int °C
ext °C
int 250.00 1000
set °C Pump rpm
Safe Temp °C
PC
200.00
260
Bluetooth ® :
This symbol means the station and the WiCo are com-
municating via Bluetooth ® .
The symbol no longer appears if no Bluetooth ® commu-
nication is being performed.
Key:
This symbol means that the function of the keys and the
rotary knobs for controlling the WiCo are disabled.
The symbol no longer appears if the functions are en-
abled once again by pressing the key button a second
time.
Temperature Sensor:
This symbol appears when the external temperature
sensor is connected.
A Operating Mode:
This symbol indicates the operating mode currently se-
lected (A, B, C).
USB:
This symbol means the WiCo is communicating or the
battery is charged via a USB cable. The symbol no longer
appears if no USB cable is being used for communicat-
ing with the station.
Home:
This symbol means that the WiCo is connected to the
station and is communicating with the station via the
contacts.
The symbol no longer appears if the WiCo is removed
from the station.
Battery pack:
This symbol indicates the charging status of the RB 1
battery pack within the WiCo.
The charging symbol appears if the WiCo
- Is connected to a PC via a USB cable
- Is connected to a Circulation station via a USB cable
- Is connected to the power supply unit OS 1.0 via a
USB cable
- Is connected to the station via the charger contacts.
Heating
This symbol indicates that the heating function is active.
  indicate active heating process.
Fluid level
This symbol indicates fluid level.
The symbol means the fluid is above the maximum
fluid level. Excess fluid should be drained out.
The symbol means the fluid is below the minimum
fluid level. Please add fluid.
Rotation:
This symbol indicates that the pump is activated.
Warning:
This symbol indicates that warning is active.
PC PC Control:
This symbol means that either the station or the WiCo
is connected to a computer and is being controlled from
the computer.
PR Program Control:
This symbol indicates that the WiCo is controlled by a
program (see "PROGRAMS").
Note: The wireless symbol appears only when the station
is switched on.
Fig. 22
Fig. 23
