34
control

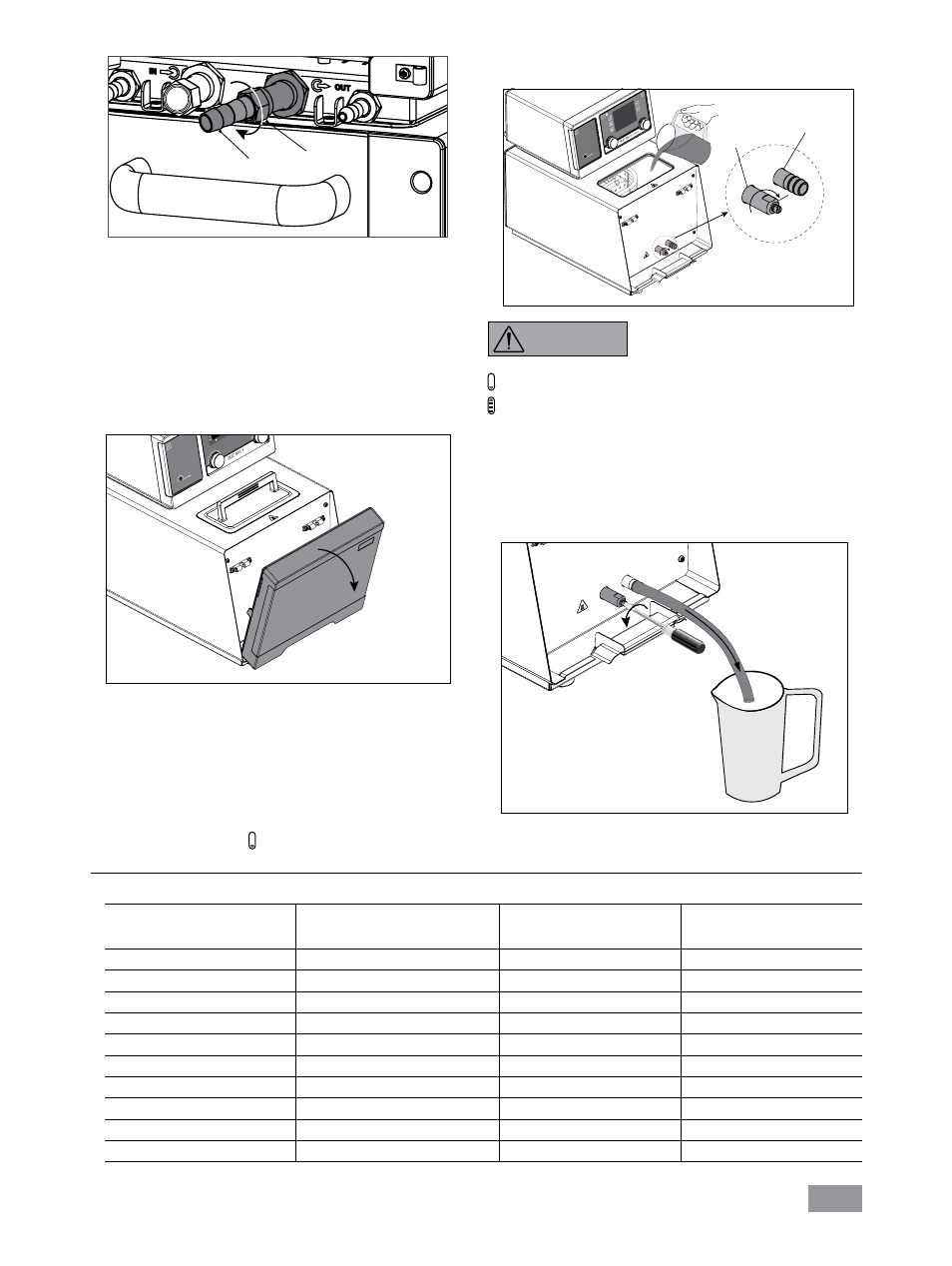

Fig. 11
Note: Pay attention to the fluid
level information on the display:
— Low level
— High level
(see "Fluid level" in section " Working with Wireless
Controller (WiCo)").
Drain valve
Drain port
- To drain the fluid from the bath, connect a hose to the drain
port and turn the drain valve in counter clockwise direction
with a straight screwdriver.
• Fluids
IKA ® Designation Operating temperature range
(°C)
Safety temperature
(°C)
Flash point
(°C)
EG19_N10.100 (H
2
0 + Glycole) - 10 ... 100 100 125
EG34_N20.100 (H
2
0 + Glycole) - 20 ... 100 100 125
EG40_N25.100 (H
2
0 + Glycole) - 25 ... 100 100 125
EG45_N30.100 (H
2
0 + Glycole) - 30 ... 100 100 125
SI_P20.275 (Silcone Oil) 20 ... 275 275 300
SI_N30.145 (Silicone Oil) - 30 ... 145 145 170
SY_N10.100 (Synthetic Oil) - 10 ... 100 100 125
H
2
O (Water*) 5 ... 95 95 —
Customized 1
Customized 2
WARNING
Fig. 10
Note: Please note the permissible temperature range of
hoses. For hot fluids we recommend the IKA ® LT 5.20
hoses. When the external system is not necessary, please
seal the pump connectors IN and OUT with the existing
union nuts and stoppers.
• Filling and draining
- Before filling the fluid into the bath, open the front
cover as indicated in following figure.
- Check and make sure that the drain valve is closed (the
stop position in clockwise direction, see Fig. 11).
Note: Please note information in chapter “Commis-
sioning”.
- Connect the mains plug and turn on the device with
mains switch (2).
- The low level icon ( ) appears on the display of the
Wireless Controller (WiCo).
Hose olive
Union nut
Fig. 9
- Open the lid (16) and fill fluid to the bath.
Stop position
Fig. 12
