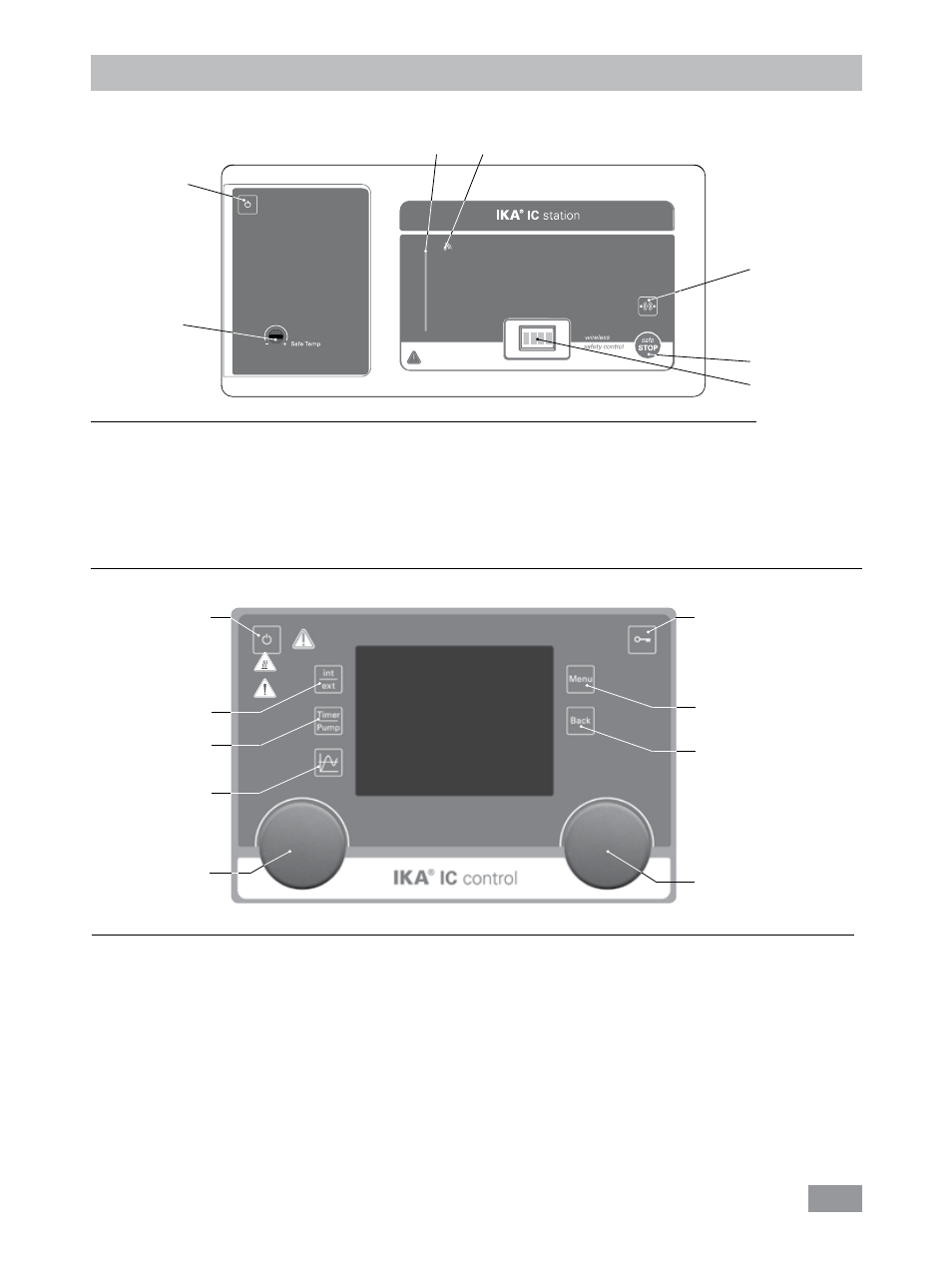

• Wireless Controller (WiCo)
Fig. 16
Operator panel and display
• Station (IC station/HBC station)
A
B
D
E
F
C
G
Item Designation
Function
A
ON/OFF button:
Switch on/off the station.
B
Adjustable safety circuit:
Adjust the safety temperature limit with delivered screwdriver.
C
"safe STOP" button:
Safe stop the working of the circulator in emergency.
D
LED bar:
Display different status of the circulator with different color.
E Bluetooth
®
searching button:
Search the Wireless Controller (WiCo) when the Bluetooth
®
is active.
F Bluetooth
®
LED:
Bluetooth
®
indicator.
G Contacts:
Communicate and charge the WiCo.
Fig. 15
Item Designation
Function
J
Rotating/pressing knob:
Navigation, selecting and changing the settings in the menu
Set the pump speed value
Start/Stop
the
pump
function
K
Rotating/pressing knob:
Set the temperature value
Start/Stop
the
heating
function
L
ON/OFF button:
Switch
the
WiCo on and off
M
"Menu" button:
Press it once: main menu is displayed
Press it a second time: back to the working screen
N
"Back" button:
Return to the previous menu level
O
Key button:
Lock/Unlock the knobs and keys
P
"int/ext" button:
Switch between the internal and external temperature display and control
R
"Timer/Pump" button:
Switch between the timer and pump display
S
Graph button:
Display time/temperature graph
