10
LUBRICATION
Refer to service manual for lubrication chart and guide-
lines.
BATTERY MAINTENANCE
Hazard of explosive gas mixture. Keep sparks,
flame and smoking materials away from batter-
ies.
Always wear safety glasses when working with
batteries.
Battery fluid is highly corrosive. Rinse away any
spilled fluid thoroughly with clean water.
Check battery fluid level daily, especially if work platform
is being used in a warm, dry climate.
If electrolyte level is lower than 10 mm (3/8 in.) above
plates add distilled water only. DO NOT use tap water it
will shorten battery life.
Keep terminals and top of battery clean.
TIRES
Tire selection can affect the stability of the machine.
Use only tires supplied by UpRight unless approved by
the manufacturer in writing. Check air filled tire air
pressure daily 7 bar (100 psi).
Do not operate machines with Elev8 option
unless machine is equipped with foam filled
tires. Remove machine from service and install
proper tire/wheel combination before operating
machine.

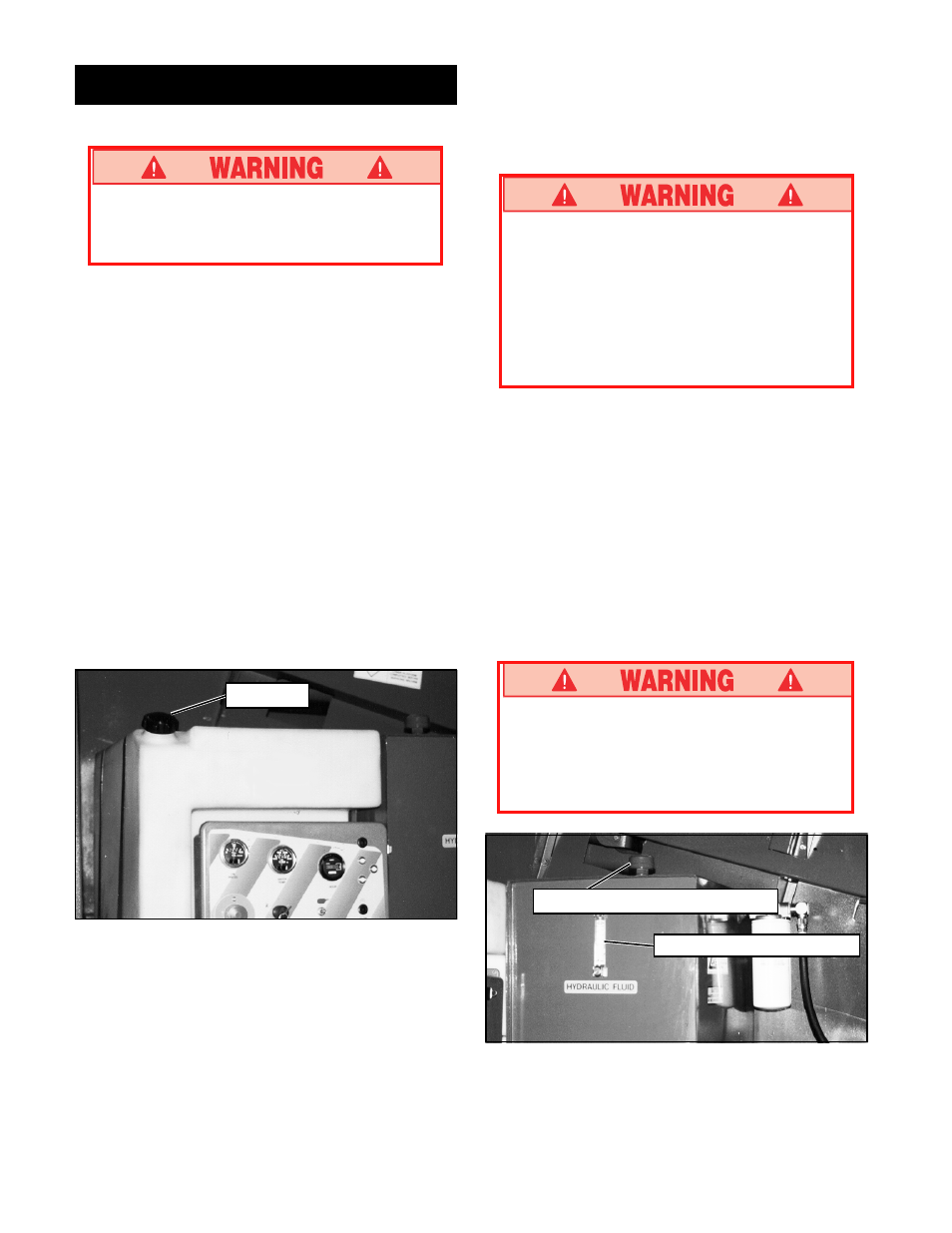

Figure 14: Hydraulic Oil Tank
Figure 13: Fuel tank
Maintenance
FUELING
Use a ladder or platform when fueling SB80.
DO NOT stand on tires when fueling the
machine.
Diesel
1. Open left turret cover, open fill pipe cap. (See
figure 13)
2. Fill to capacity with diesel motor fuel. Use diesel fuel
as per EN950, do not use residual or blend.
3. Fuel tank full capacity is 159 L (42 US gallons).
HYDRAULIC FLUID
1. Open left turret cover and check oil level at sight
gauge with the boom stowed and retracted. Engine
running or stopped. (See Figure 14)
2. If necessary, fill to capacity with clean ISO compat-
ible hydraulic fluid (ISO 46 summer/ ISO 32 winter).
Refer to Routine Service Table on page 11.
3. Clean area around cap before opening.
4. Open filler / breather cap to add hydraulic fluid.
5. Replace cap.
Fuel cap
Hydraulic Oil Level Gauge
Hydraulic Oil Filler / Breather Cap
