6. Wiring

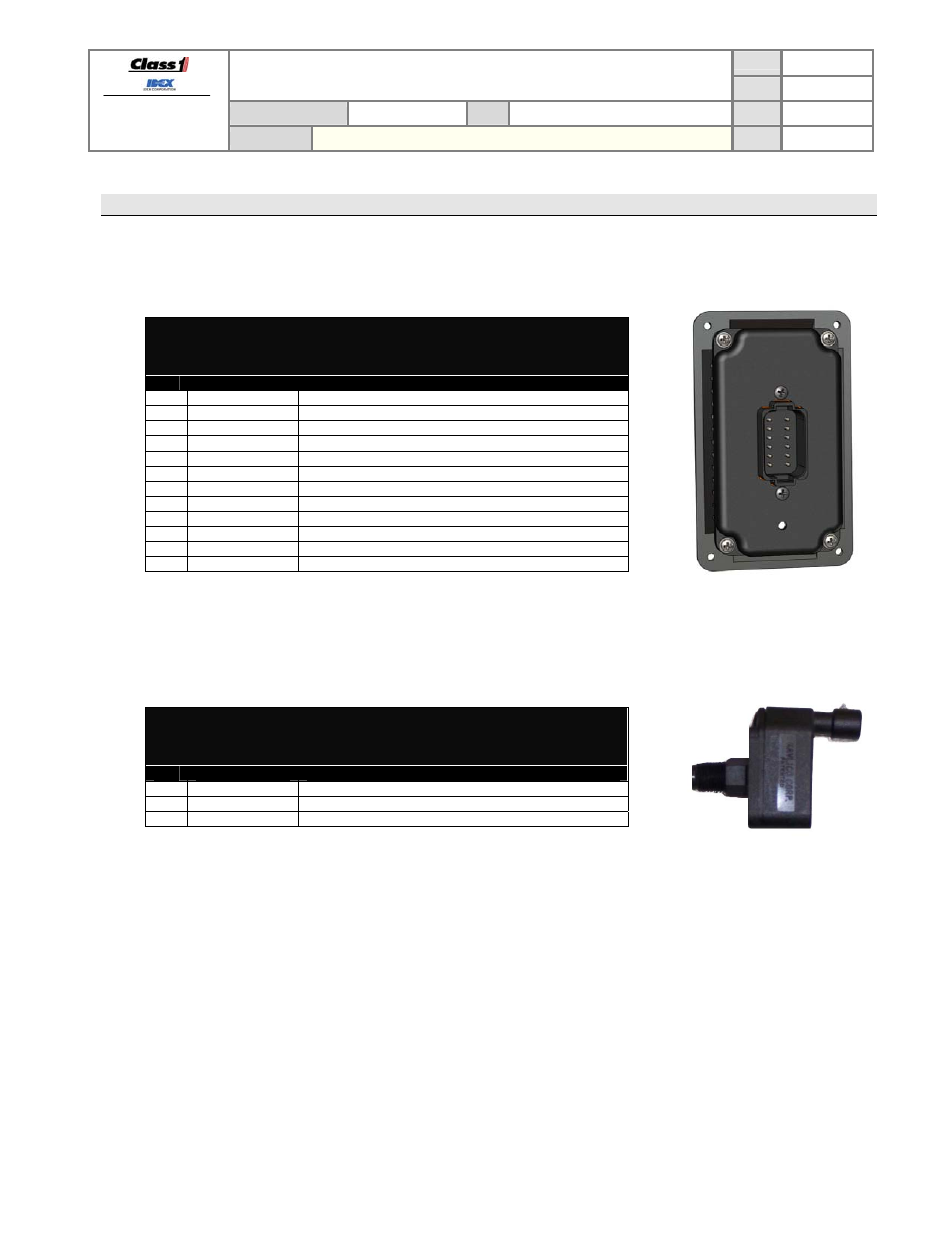

6.1. ITL40 connector
The ITL40 has one connector and the following definitions apply:
Mating connector: Deutsch DT06-12SB BLACK
Mating sockets: Deutsch 0462-201-16141
Wedge lock: W12S Recommended wire gage: 16-18 AWG
PIN
CIRCUIT
DESCRIPTION
1 SUPPLY
(+)
(
INPUT
) – battery voltage
(+9VDC…+32VDC)
2 CAN
HIGH
(
DATA
)
– SAE J1939 CAN 2.0B, 250Kbits/s
3 CAN
SHIELD (
DATA
)
– SAE J1939 CAN 2.0B, 250Kbits /s
4 DIM
DISPLAY (
INPUT
) – Dim display input
(positive polarity)
5 Sensor
REF
(
OUTPUT
) – pressure sensor supply
(+5VDC)
6 Sensor
SIGNAL (
INPUT
) – pressure sensor signal
(+0.5VDC to +4.5VDC)
7 Sensor
GND
(
OUTPUT
) – pressure sensor ground
8 ----
----
9 1-WIRE
SIG
(
DATA
)
– Class 1proprietary communication
10 GROUND
(
OUTPUT
) – common ground
11 CAN
LOW
(
DATA
)
– SAE J1939 CAN 2.0B, 250Kbits /s
12 SUPPLY
(-)
(
INPUT
) – battery ground
6.2. Pressure sensor connector
The pressure sensor has one connector and the following definitions apply:
Mating connector: Packard Metri-Pack 150 series, 12047909
Mating sockets: Packard Metri-Pack 150 series, 12103881
Recommended wire gage: 18-20 AWG
PIN
CIRCUIT
DESCRIPTION
A SUPPLY
(+)
(
INPUT
) – pressure sensor supply
(+5VDC)
B SUPPLY
(-)
(
INPUT
) – pressure sensor ground
C Signal
(
OUTPUT
) – pressure sensor signal
(+0.5VDC to +4.5VDC)
