Page 32: Manifold pressure
32
© 2014 AEM Performance Electronics

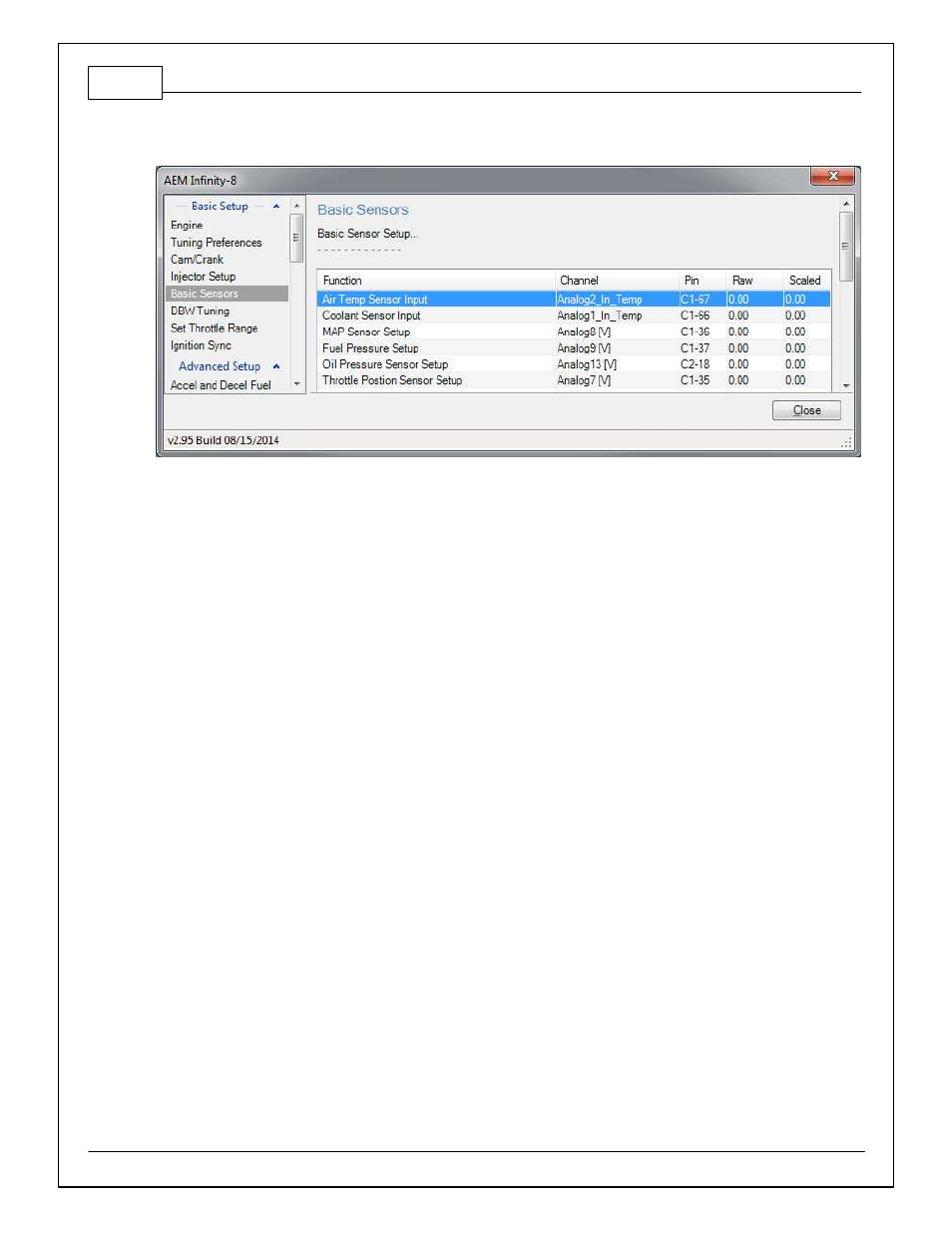

Basic Sensors
Air/Coolant Temperature
Select the air and coolant temperature sensors being used.
Fuel Pressure
Set the Static Fuel Pressure value. If using a fuel pressure sensor, check Calculate Fuel Pressure from
Sensor and then browse to select the correct Fuel Pressure Sensor wizard setting. If not using a
preselected pressure sensor, input sensor calibration values. If not using a fuel pressure sensor at all,
uncheck Calculate Fuel Pressure from Sensor, check Fuel Pressure Sensor Failsafe On, and set Fuel
Pressure Sensor Failsafe to your base fuel pressure value. Using a fuel pressure sensor is highly
recommended, however it is not a requirement for the ECU to function correctly.
Manifold Pressure
Select MAP Sensor Setup. If not using a preselected MAP sensor, enter in sensor calibration values.
