AEM 30-6053 Series 2 Plug & Play EMS User Manual
Page 8
Page 8 of 21
i)
Connect provided adapter harness to factory wiring harness and stock ECU. Then
route the harness from the stock ECU through the driver’s side door sill and
underneath the driver’s side seat. Take note of the bends that the harness will
require so that the plastic cover that protects the harness will fit over the AEM
wiring harness. A few zip ties will hold the harness against the stock ECU so that
the clutch pedal will not contact it. See photo above to get an idea of the stock
clearance of the ECU and clutch pedal.

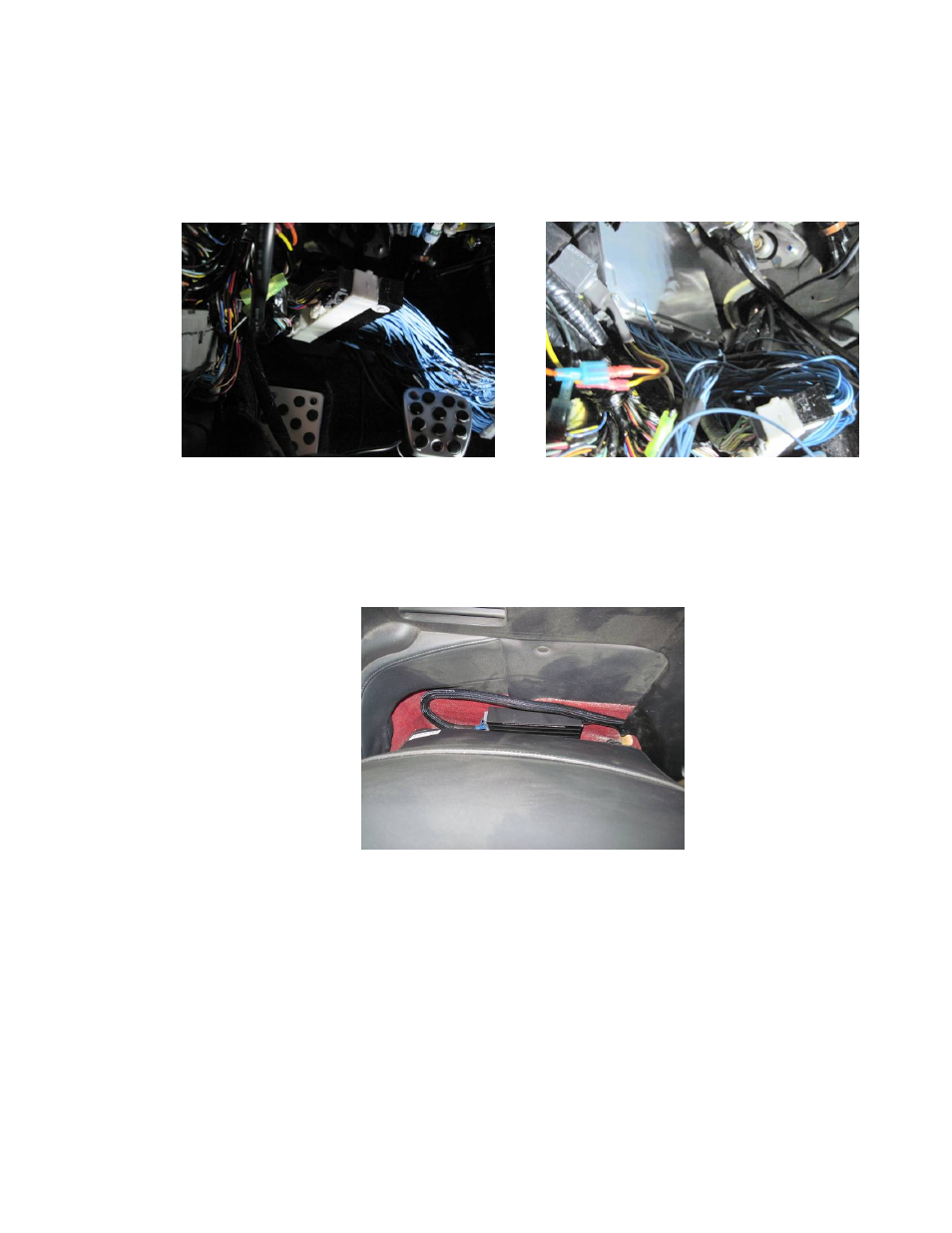

Plug in adapter harness to stock wiring
Plug in adapter harness to stock ECU
j)
Mount the AEM EMS behind the seat in the upright position to maximize seat
adjustment using the Velcro strips provided. Make sure the EMS is not impacted
by the seat when moving it back into place.
EMS location
k)
Reinstall the covers in the reverse of removal. Make sure that the cover that goes
over the original ECU and now the adapter harness fits so that it is not contacting
the clutch pedal.
