AEM 30-6053 Series 2 Plug & Play EMS User Manual
Page 7
Page 7 of 21
g)

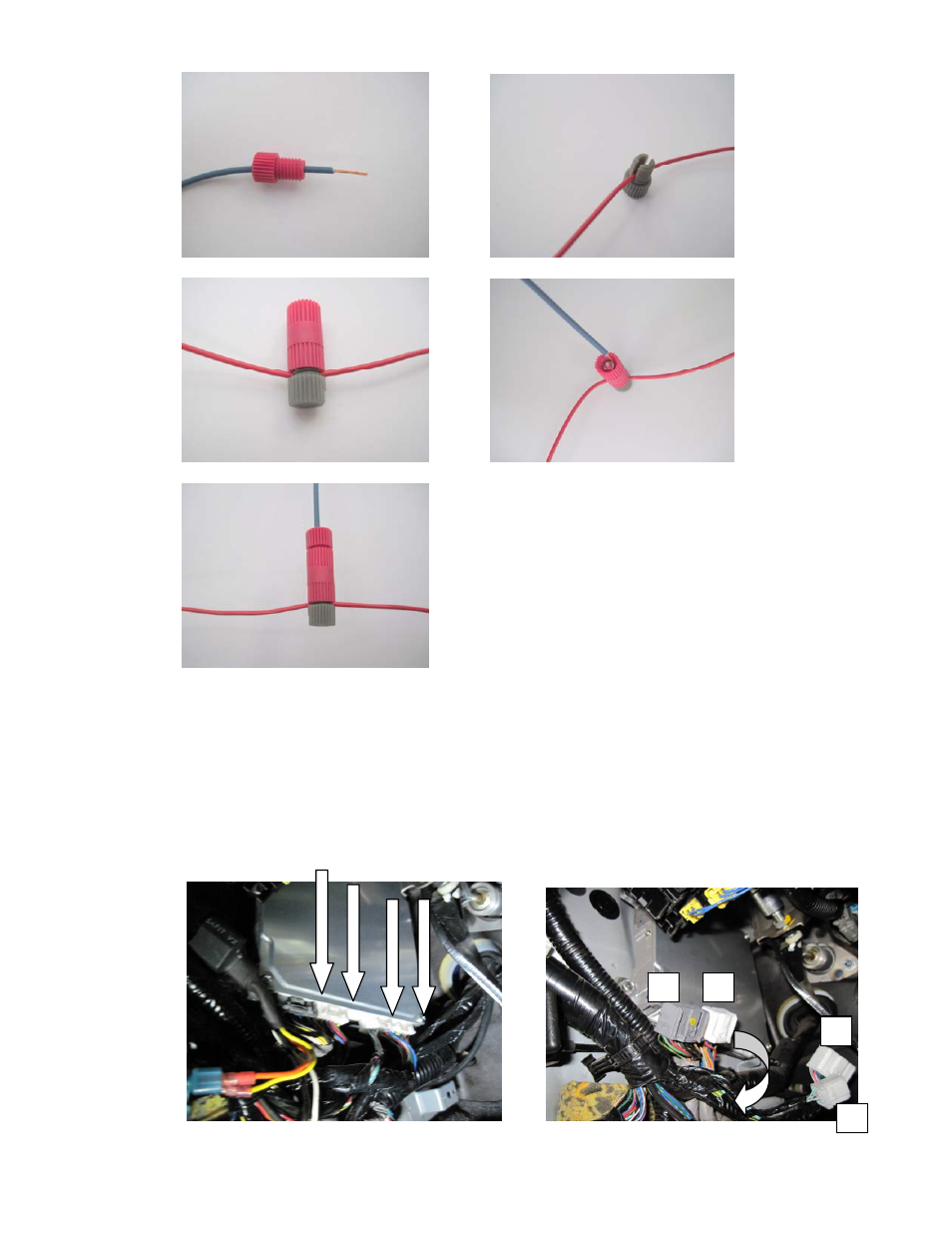

How to use provided wire taps:
Run harness TPS wire through
Place vehicle wire in tap
Screw in tap onto vehicle wire
Place harness TPS wire as shown
Screw TPS wire into tap
h)
Carefully disconnect the wiring harness from the ECU. Avoid excessive stress or
pulling on the wires, as this may damage the wiring harness. All connectors must
be removed without damage to work properly with the AEM ECU. Do not cut any
of the wires in the factory wiring harness to remove them. Next to the stock ECU
on the stock wiring harness, the A and B connectors should be routed underneath
the D and E connectors to make them easier to install.
Carefully remove ECU connectors
Reroute connectors
A
B
D
E
