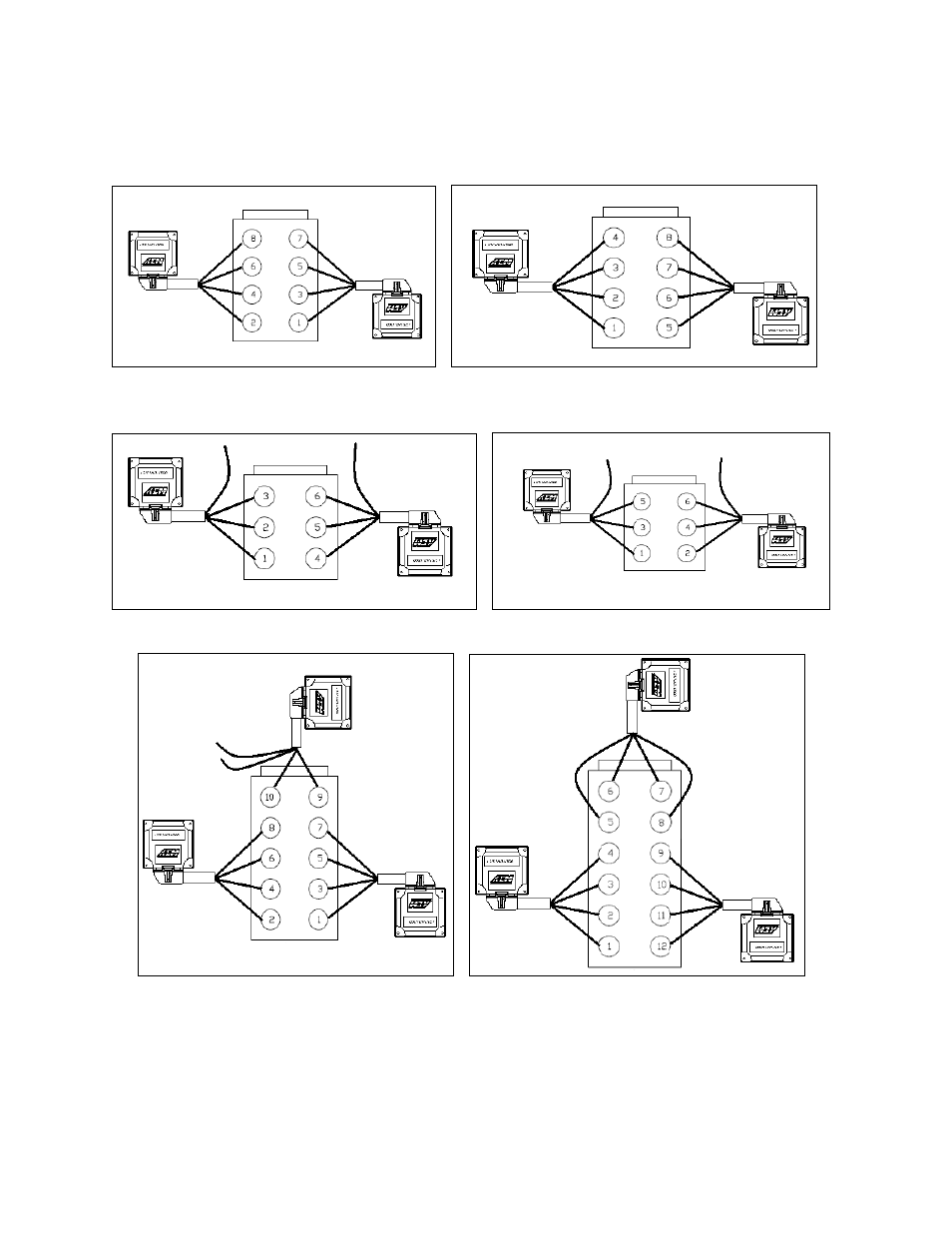

There are 7 different cylinder numbering combinations available on the AEM network.
The different combinations allow for easy installation and data analysis, and allow users
to connect up to three 4 Channel UEGO modules on the AEM network. See Table 3
and the figures below for recommended connections on some of the more common
engine configurations.
CHEVROLET/ DODGE/ TOYOTA
FORD
HONDA / ACURA
NISSAN / TOYOTA
VIPER
V12
MODE 3
MODE 4
MODE 2
MODE 4
MODE 3
MODE 5
MODE 1
MODE 1
MODE 5
MODE 2
MODE 3
MODE 4
MODE 7
MODE 6
