warm up. Once the UEGO sensor reaches operating temperature, usually within 30
seconds, the Status LED will turn off and the Ready LED will remain on solid. If a
UEGO sensor error is detected, analog output will switch to approximately +5V and both
LEDs will flash. The Status LED will flash on and off a number of times, followed by a
short pause, signifying an error code. The error codes are listed below in Table 1.

# of Flashes

Fault

Corrective Action

1

UEGO sensor heater open


Check sensor cable for

broken wires/shorts

2

Virtual Ground (VM) Error

3

Nernst Cell (UN) Error

4

Pump current (IP) Error

5

UEGO sensor heater time out

6

UEGO sensor heater short

7

System voltage below 10 volts dc

Check electrical system

for good connections

and proper function




When there is no UEGO sensor connected to a particular channel, the Status LED of
that channel will remain on solid and the Ready LED will turn off after a few minutes.
The remaining channels with UEGO sensors connected will function properly.

When the exhaust back pressure kit (30-2064) is used, the 4 CH UEGO controller will
monitor exhaust back pressure. (NOTE: The 4 CH UEGO controller is designed to
work with a specific AEM pressure sensor. Do not use any sensor other than the
one included in the Exhaust Back Pressure Kit.)
If a pressure sensor error is
detected, the 4 CH UEGO controller turns off all Ready LEDs and flashes Status LEDs,
starting with CH1 and ending with CH4. The analog output voltage level for all 4
channels switches to approximately +5V to signify an error.



TABLE 1. Error Codes

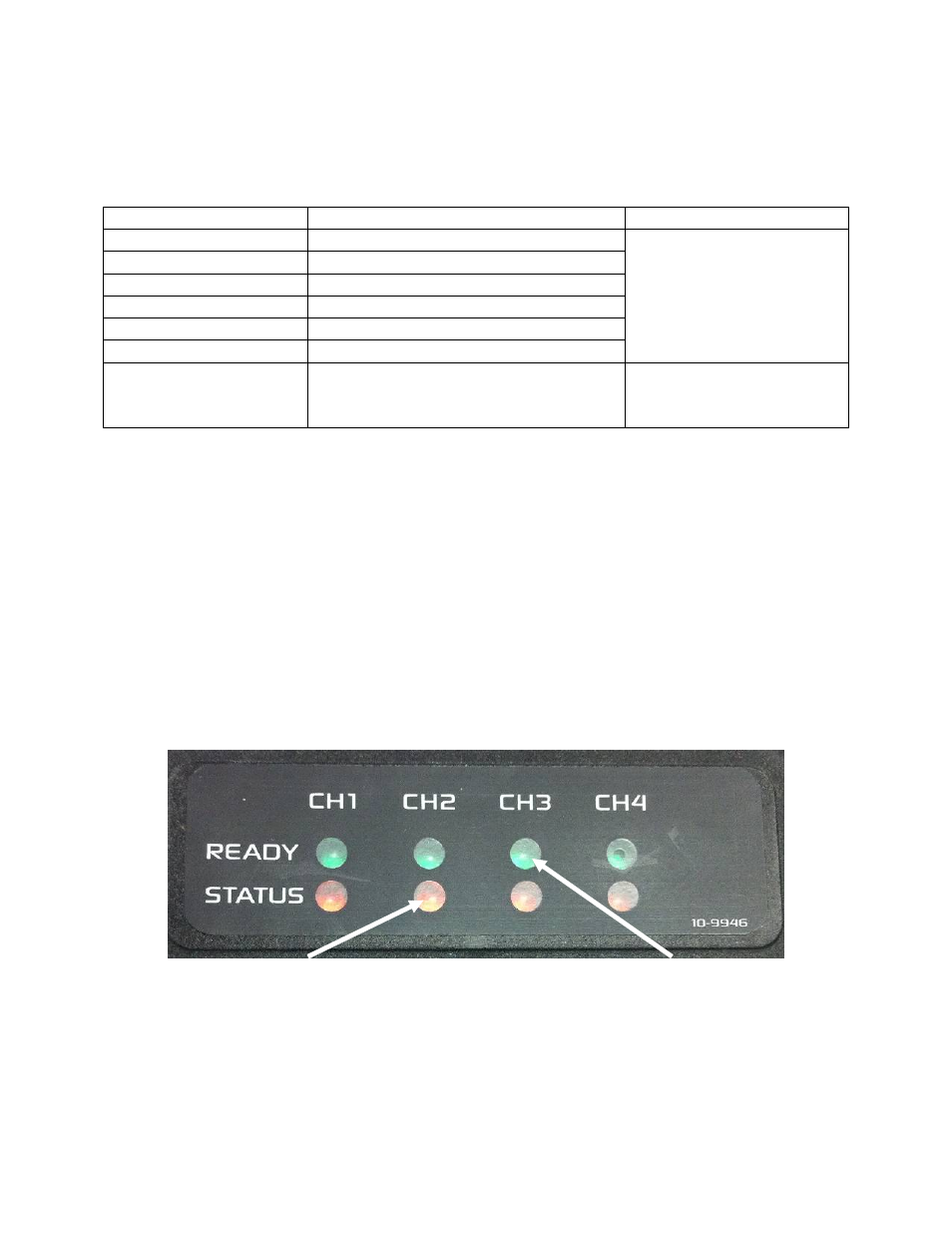

FIGURE 5. Indicator Lights

Status Indicator
LED

Ready Indicator
LED
