Section 5 - Attachments
5-21 31200148
6 ft (1,8 m) - 100° Swing Mast W/Side Shift
Description P/N
Mast w/ 48 in Fork .........................................................91405070
Mast w/ 60 in Fork .........................................................91415026
Use 6 ft Swing Mast Attachment Capacity Chart
To determine maximum capacity, refer to “Telehandler/Attachment/Fork Capacity” on
page 5-3.

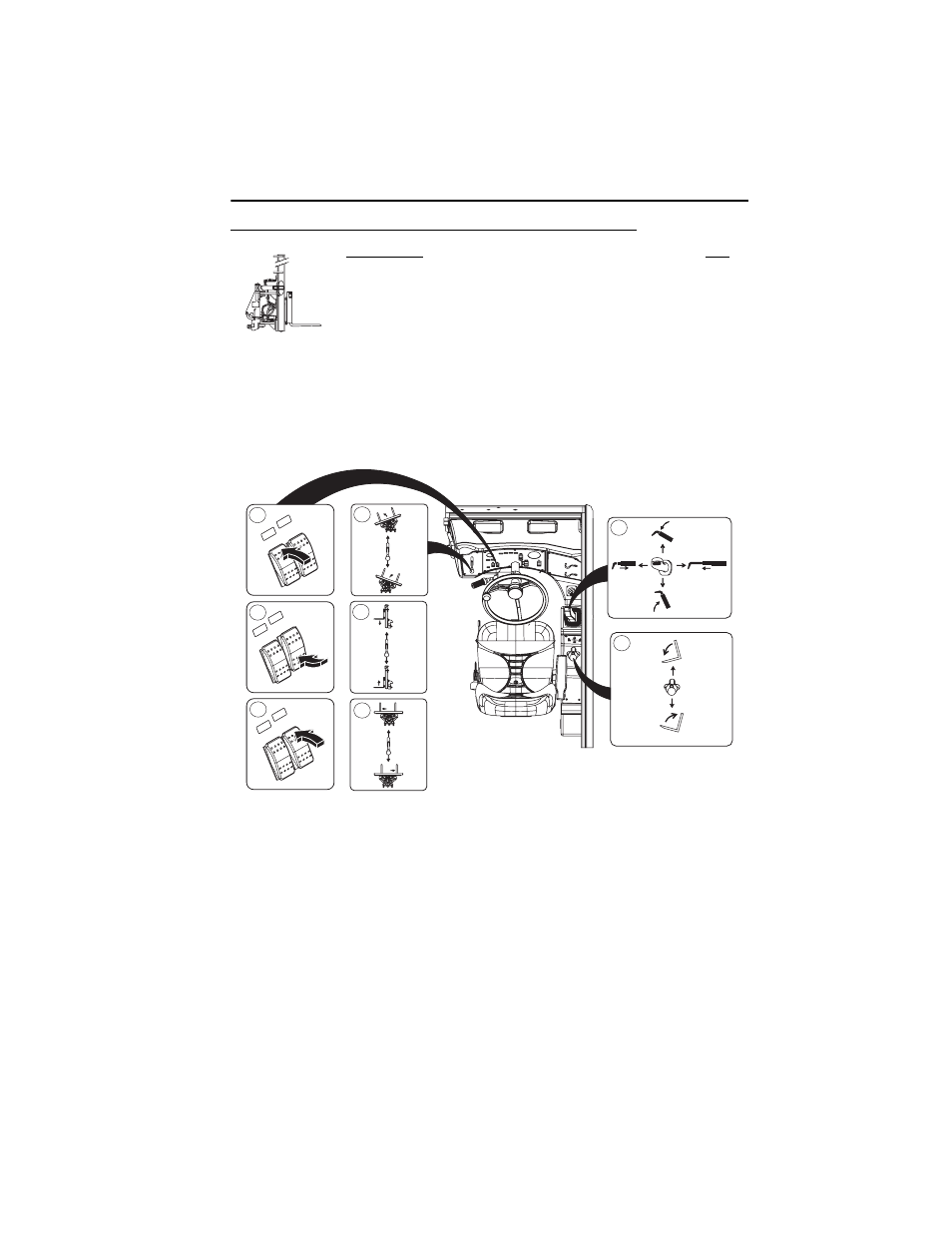

The joystick (1) controls lift/lower and the extend/retract movement of the boom.
The rear joystick (2) controls the mast tilt.
• Move joystick forward to tilt down.
• Move joystick back to tilt up.
OY0590
WA R N IN G
OY0371
TILT SPEED CONTROL
1
3
3
3
2
SW ING
SIDE SHI FT
MA ST
4
SW ING
SIDE SHI FT
MA ST
5
SW ING
SIDE SHI FT
MA ST
6
+
+
+
