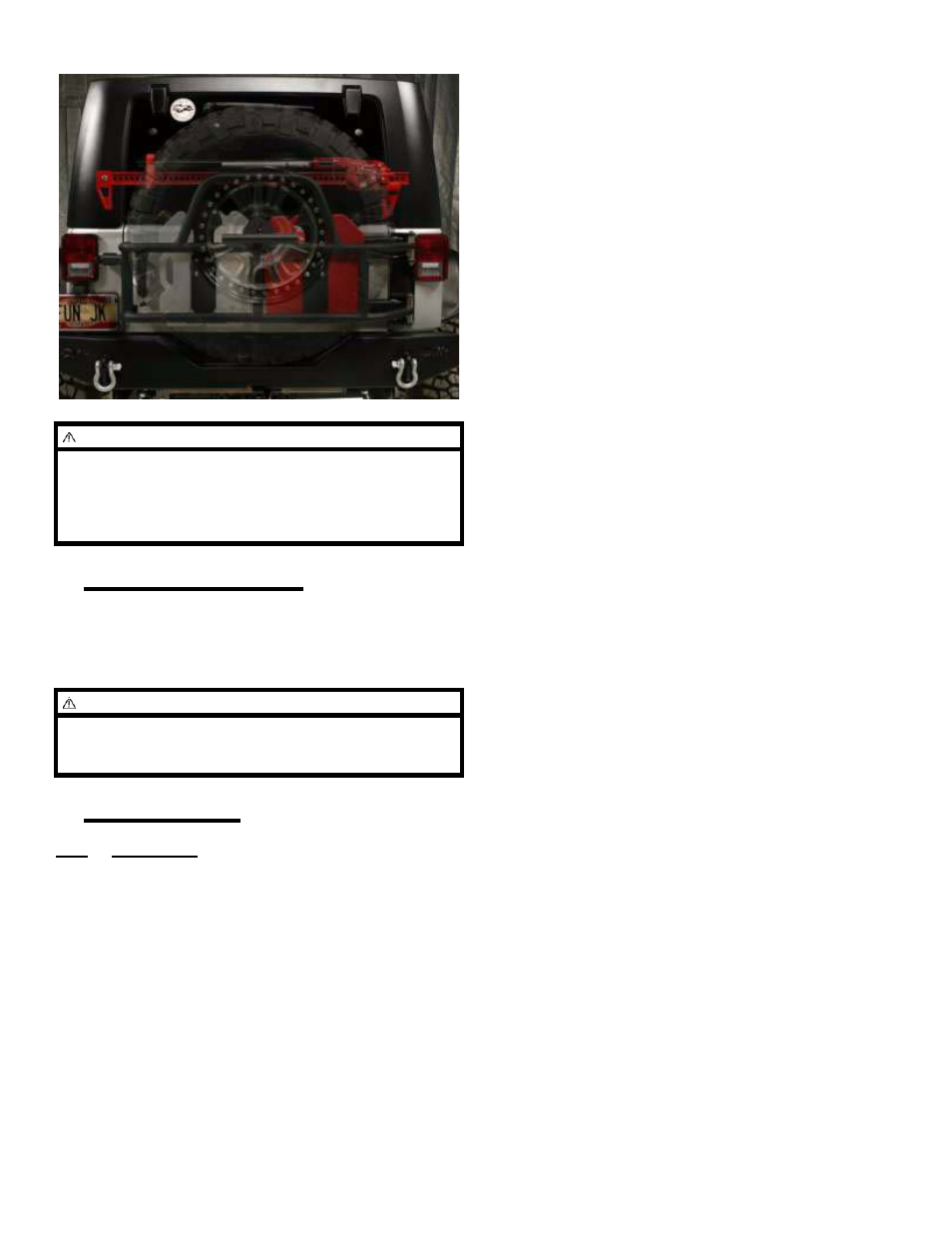

ROTOPAX Swing-Away Tire/Can Carrier w/Gas Cans 9 Kit # 85209
Accessories
The following accessories are also available:
Kit # 87017:.Third brake light kit
Parts list
QTY Description
1 Rack, Rotopax Carrier
1 Bracket, Hinge plate
1 Bracket, Landing block mount
1 Bracket, Support mount upper
1 Spacer, Tail gate hinge lower
1 Spacer, Tail gate hinge lower
2 Spacer, Hinge plate block
1 Landing block, Welded
1 T-Handle
1 Aluminum Disc
1 Spacer, urethane disc
1 Lock Bar
2 3 Gal. Gas Can
2 Rotopax Spin Mount w/Hardware
1 Hardware Bag, (Tire Carrier)
1 Bolt, M8 x 60mm
9 Bolt, M8 x 50mm
2 Bolt, 1/2” x 5-1/2”
1 Bolt, 1/2” x 2”
2 Bolt, 3/8” x 1”
4 Bolt, 5/16” x 1”
1 Bolt, 1/4” x 3/4”
4 Washer, M8
1 Washer, 1/2” SAE (Hardened)
16 Washer, 1/2” Brass
2 Washer, M12
4 Washer, 1/2” SAE
2 Washer, 7/16” USS
2 Washer, 5/16” USS
3 Washer, 1/4” USS
6 Washer, M8 (90 degree)
1 Nut, 1/2” Flange
2 Nut, 1/2” Stover
2 Nut, 3/8” Flange
2 Nut, 5/16” Flange
1 Nut, 1/4” Flange
6 Nut, M8 Flange
6 Nut, 3/8 Wing
1 Spacer, Landing Block (.5 x 1.0)
2 Spacer, Pivot (1.395 x 1.0)
2 Spacer, Pivot (1.008 x 1.0)
1 End Cap, Urethane
1 Bumpstop
1 Self Adhesive 2” x 2” Pad
NOTE
After installing tire and cans to rack, carrier may seem
to sag at latch end. Set pre-load to rack by adjusting
hinge plate landing bar to landing block is just above
center of landing area. This will set pre-load after
weight is applied and will close properly.
NOTE
Hi-lift jacks can be installed on the tire-can/tire carriers
with the use of two bolts (3/8” x 1 1/2”) not provided
with these kits.
2011 OR-FAB©
Performance Automotive Group, Inc.
