ROTOPAX Swing-Away Tire/Can Carrier w/Gas Cans 8 Kit # 85209

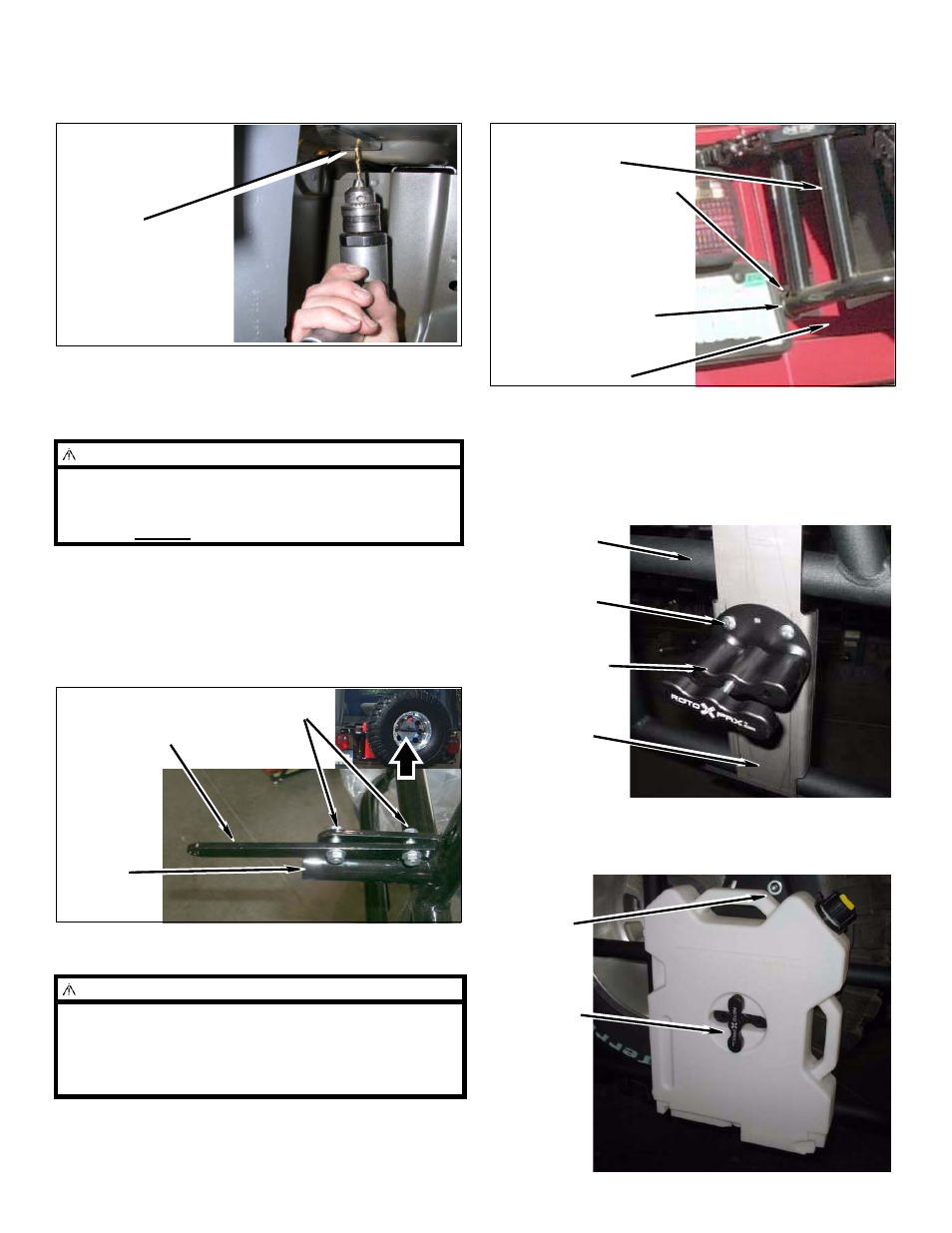

c. From top side inside of body enlarge hole to 3/8”
drill and install kit bolt (3/8” x 1”) with hardware
and tighten.
15. Reinstall quarter panel inner foam liner and tail lights
16. Tire mounting.
a. Install kit lock bar on kit tire carrier with two kit
bolts (5/16” x 1”) and two kit flange nuts (5/16”).
b. Position and install tire and wheel assembly on
kit tire carrier with kit urethane spacer, kit alu-
minum plate, and kit T-bar.
17. Kit bump-stop.
a. Install the kit lower bump-stop on the kit tire
carrier.
b. Use the location of the kit lower bump-stop on
the tire carrier to position the kit 2” x 2” stain-
less steel stick pad on the tailgate.
18. Install Kit Rotopax mount onto Kit carrier bracket.
s. Install the Rotopax mount #RX-PM using four
provided kit hardware 1/4”-20 x 3/4” carrage
bolt and 1/4” flange nut onto the center of the
ORF Tire/Fuel Can Carrier bracket.
t. Install the fuel can on the carrier by inserting the
center of the fuel can on the Rotopax mount and
twist the wing nut until the fuel can is secure.
WARNING
The load rating for these tire-can/tire carriers is a
MAXIMUM of 200lbs. Please be aware that some tire
and wheel combinations along with gas cans and hi-lift
jacks can exceed this MAXIMUM rating.
CAUTION
In the step below you may need to slightly grind the
face of the kit lower bump-stop so that it will not dent
the tailgate. When adjusted properly the kit lower
bump-stop should just touch the tailgate and the kit 2”
x 2” stainless stick pad.
Drill to 3/8” and
install kit 3/8” x
1” bolt
Kit Lock Bar
Kit Tire
Carrier
Kit Bolts 5/16” x 1”
Kit Flange Nuts 5/16”
Kit Lower Bump-stop
Kit Tire Carrier
Tailgate
Kit 2” x 2” Stainless
Steel Stick Pad
Kit Fuel Can
Carrier
Bracket
ORF Carrier
Kit 1/4-20x3/4”
Carrage Bolt
Nylon Nuts
Rotopax Mount
# RX-PM
Rotopax
Fuel Can
Bracket
Rotopax
Wing Nut
