OR-Fab 85209 JEEP WRANGLER JK SWING AWAY SPARE TIRE CARRIER WITH ROTOPAX CONTAINERS User Manual
Page 3
ROTOPAX Swing-Away Tire/Can Carrier w/Gas Cans
3
Kit # 85209

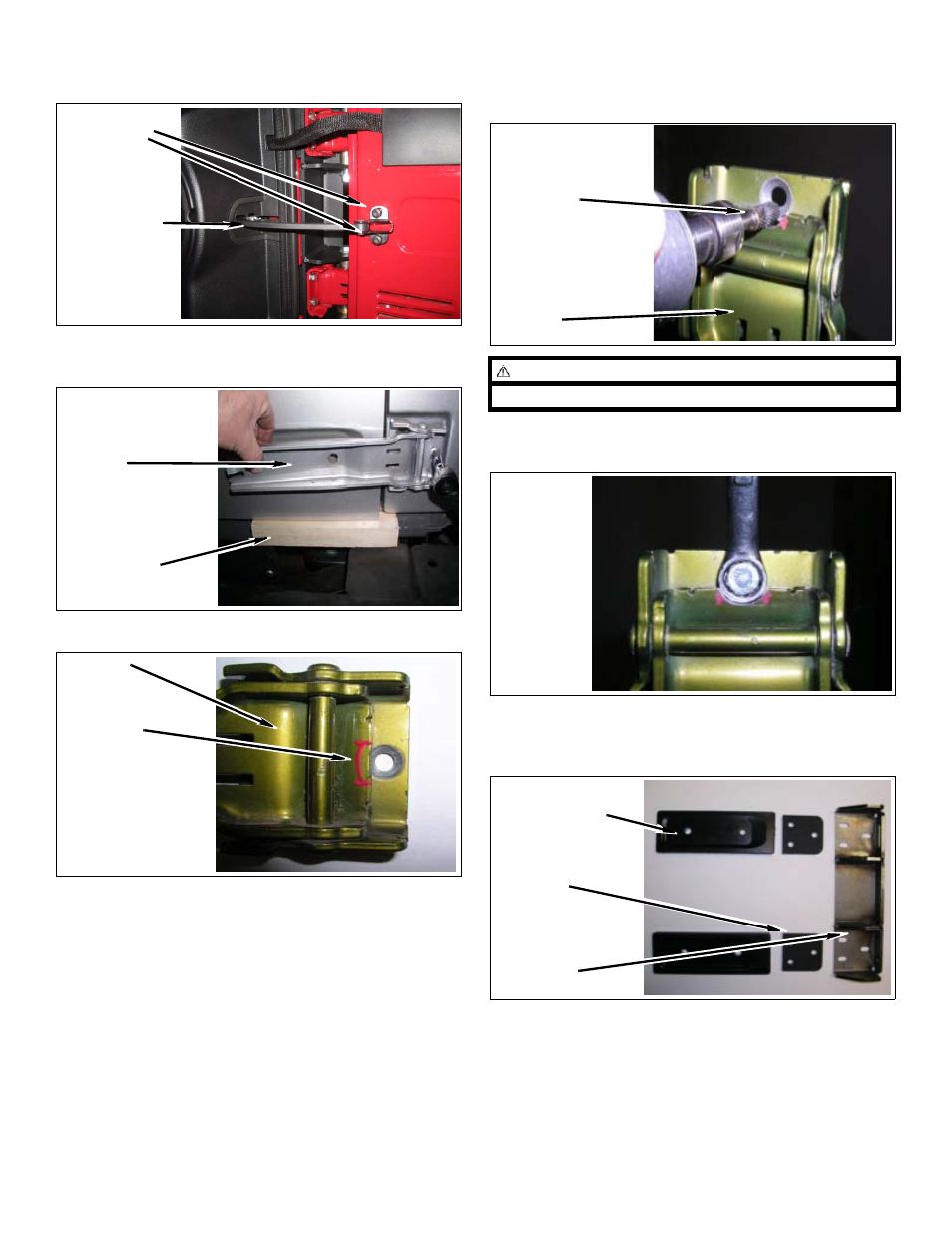

will no longer be able to to be used due to new tail
gate position when tail gate is fully opened. .
a. Remove both upper and lower tailgate hinges
with a T50 Torx bit.
6. Clearance hinges for wrench
a. Mark and grind out area shown on factory tail-
gate hinges to allow clearance for kit bolt (8mm
& tapered washer) and wrench during install.
b. Hinge should open and close with clearance of
bolt head and 13mm wrench.
7. Install tailgate hinges, spacers, hinge plate spacers
and hinge plate to jeep body. Make sure rounded
edges of hinge spacer blocks are toward body.
Remove Two
T30 Bolts
Door Guide
Tailgate
Hinge
Wood Black
Hinge
Clearance
this area
NOTE
Die grinder and rotary file work best for this task.
Clearance
this area
Hinge
kit Tailgate
Hinge Spacer
kit Hinge Plate
Spacer
kit Hinge Plate
Bracket
