OR-Fab 85209 JEEP WRANGLER JK SWING AWAY SPARE TIRE CARRIER WITH ROTOPAX CONTAINERS User Manual
Page 7
ROTOPAX Swing-Away Tire/Can Carrier w/Gas Cans
7
Kit # 85209
c.

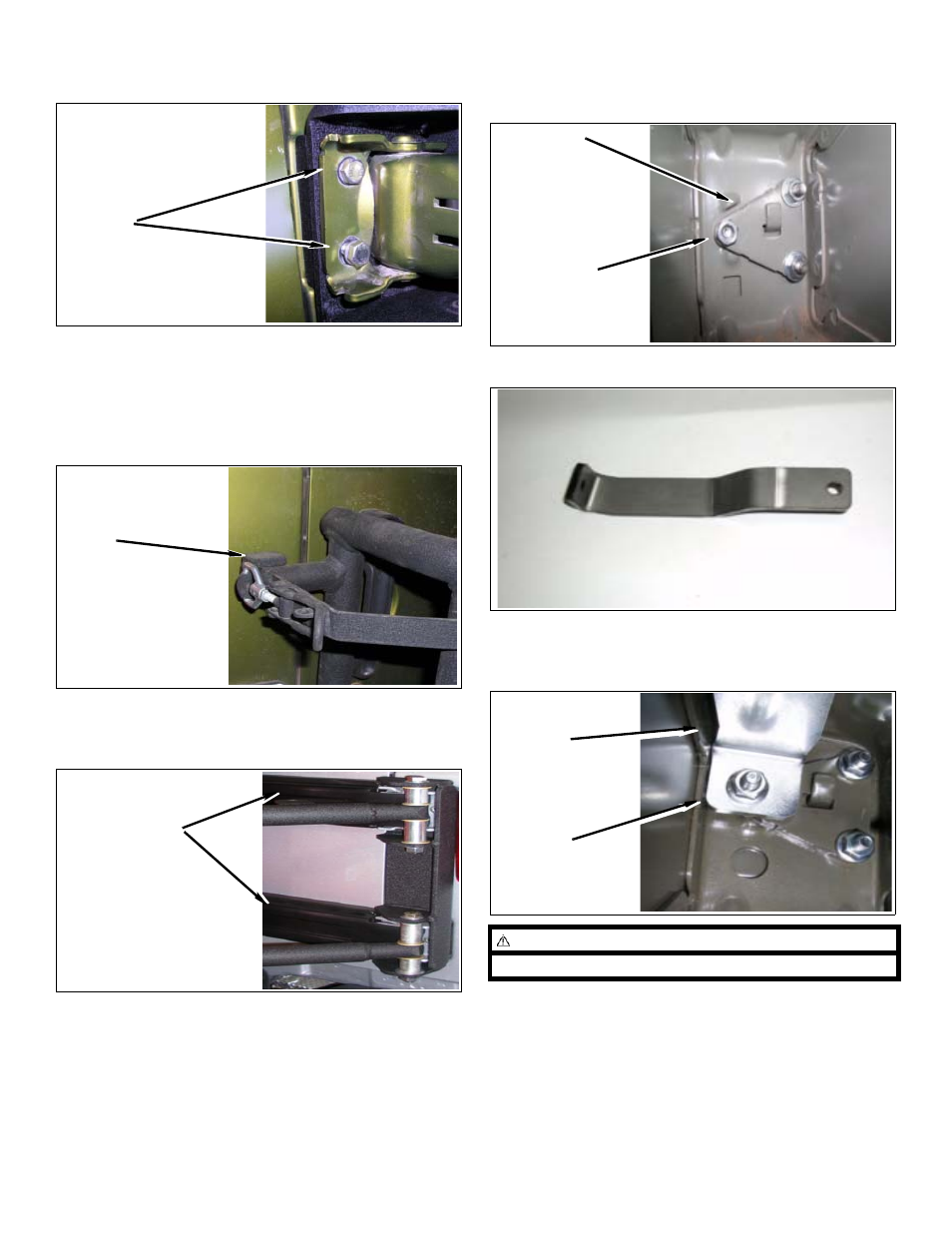

Now open carrier rack and tailgate to tighten
inner hinge plate bolts.
d. Tighten Landing block position so hook area of
block just has enough clearance for landing bar
of rack, block is slotted for this adjustment.
Adjust rack latch hoop and tighten jam nut, this
will allow the latch to properly cam-lock itself
when in closed position.
e. Adjust tail gate for proper closing and tighten all
remaining bolts inside body. Reinstall tail gate
hinge plastic covers.
f.
Install on the back side of upper and lower hinge
plate using kit nut (8mm flange) and tighten
(exclude upper outer longer bolt for next step.)
14. Install kit hinge plate upper support bracket
a. On underside of body top mount plate, place
bracket end on upper outer long hinge bolt
shown. Secure with kit nut (8mm flange)
b. On opposite end of bracket center punch and
pilot drill 1/8” hole up through the body.
Tighten
Clearance
Area
Plastic Covers
NOTE
Mechanics mirror will greatly help in this step.
kit Hinge
Plate
kit 8mm
flange nuts
kit hinge plate
upper support
bracket
kit nut (8mm
flange)
