Swing-Away Tire/Can Carrier 6 Kit 85207 & 85208

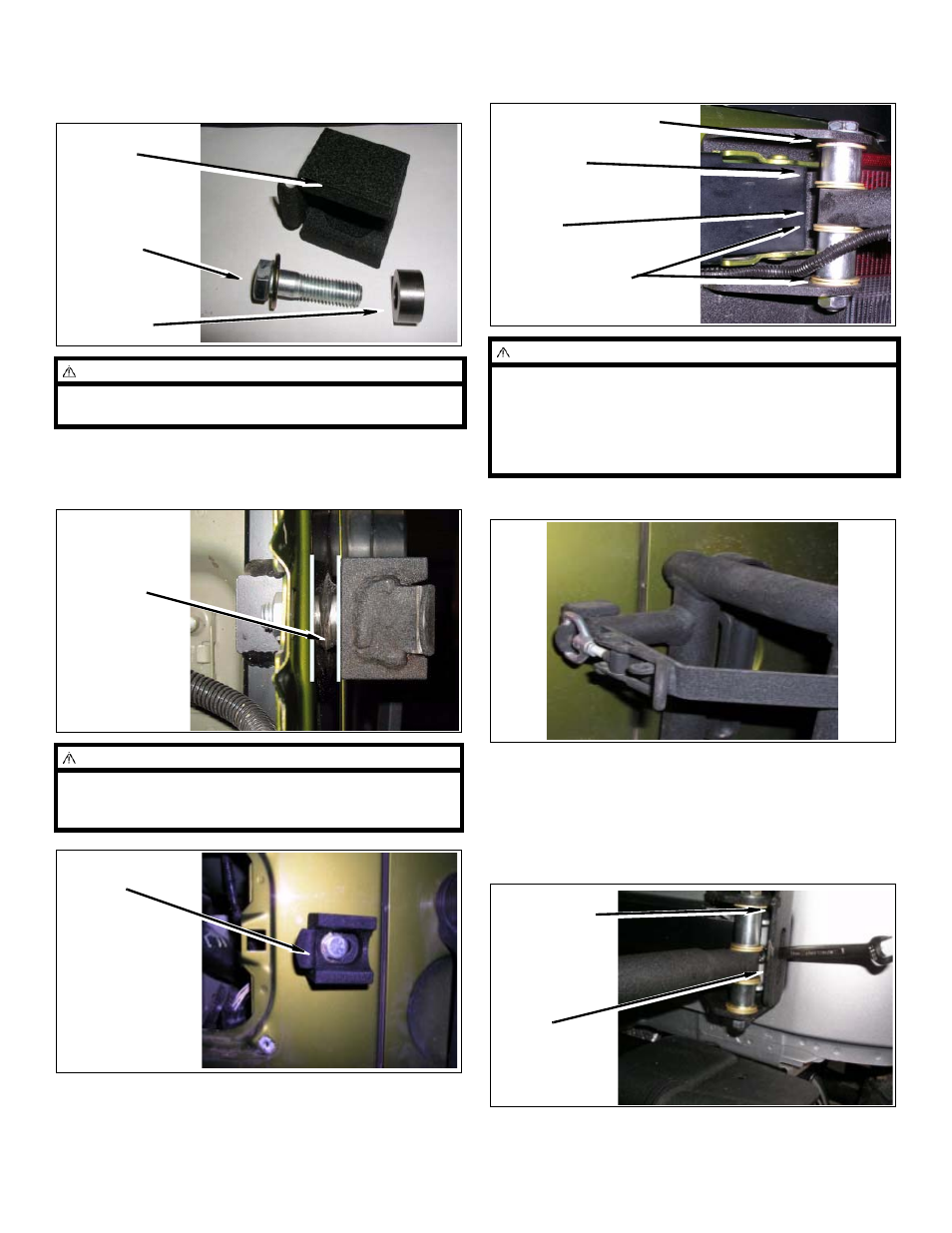

10. Install kit landing block to new hole in body support
bracket with kit bolt (1/2” x 2”), spacer (1/2” x1”),
and hardware. Snug but do not tighten.
11. NOTE: The gap between the body and the landing
block is required due to the contours of the body.
This gap will help the rack align properly.
12. Install tire carrier rack to hinge plate with kit bolts (1/
2” x 5-1/2”) with hardware (1/2” brass washer, 1/2”
wave washer “shim”, 1/2” sae washer, 1/2” lock nut,
1” spacer & 1.395” spacer)
13. Adjust and tighten
a. Close and latch rack.
b. Hinge plate has cut-out for 13mm box wrench to
tighten and for adjustments. Tighten both upper
and lower outside hinge plate bolts through cut-
outs.
NOTE
Use RTV silicone sealer around spacer to make water-
tight seal to body.
WARNING
Careful to keep drilling straight through as you will drill
two layers of body. An angle drill is highly recom-
mended.
kit landing
block
kit Bolt,
(1/2” x 2”)
kit Spacer
Gap between
body & landing
block
kit landing
block
NOTE
Place washers and spacers in order shown below. If
you have space or gap in the pivot washers use wave
washers or extra washers included for shimming. On
lower pivot spacers will be opposite position as top.
Use small amount of lithium grease on face of brass
washers to give better movement.
kit Spacer
kit Tire
Carrier
kit Brass Washer
kit Wave Washer
kit Hinge
Plate
Slot
