Swing-Away Tire/Can Carrier 2 Kit 85207 & 85208

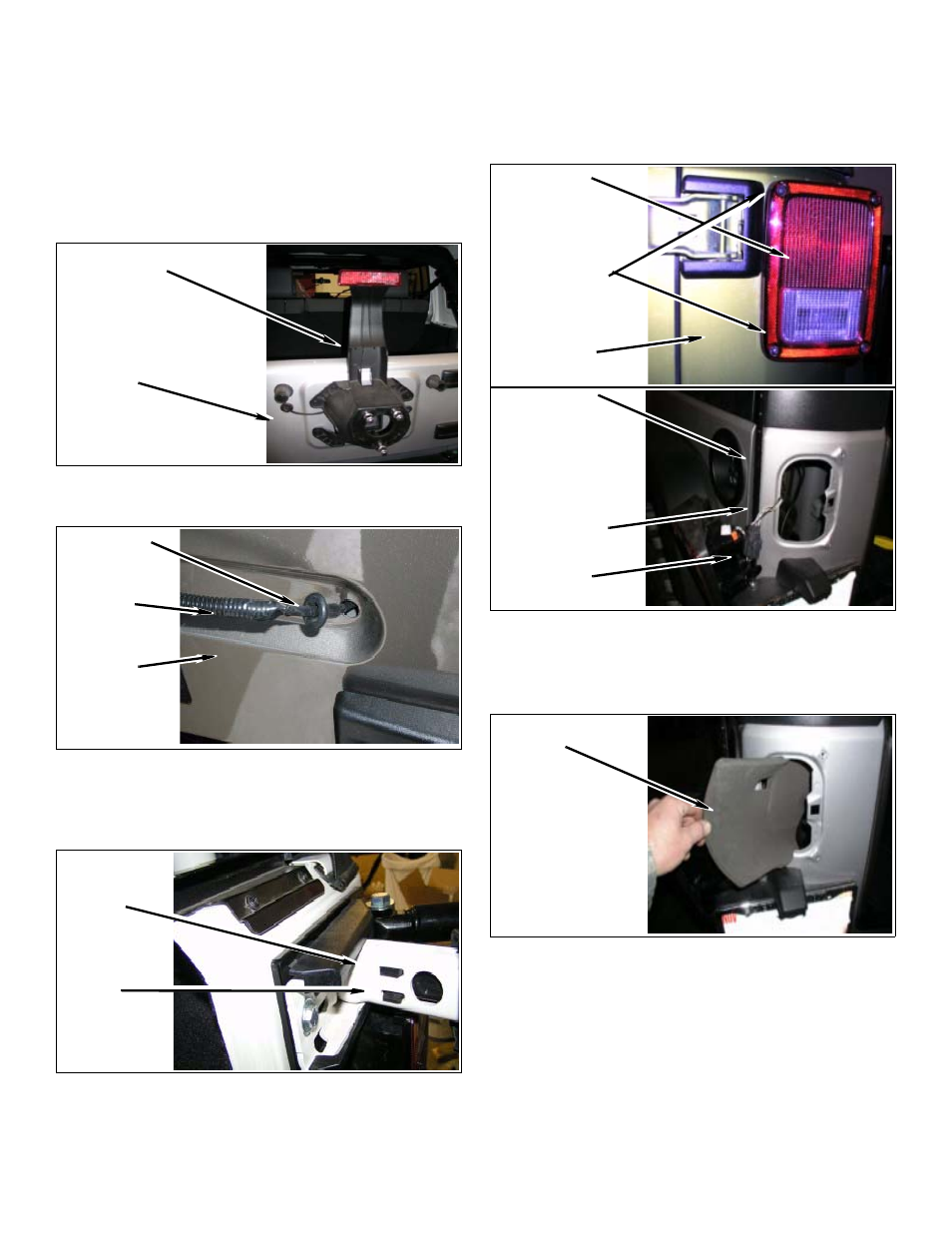

Prepare to install kit
1. Remove spare tire.
2. Remove 3rd tail light and prep tailgate.
a. Remove factory spacer tire/third brake light
mount.
b. Remove grommet and wire harness from tail-
gate.
c. Open tailgate. Unclip and remove both upper
and lower plastic covers from hinges at tailgate
and body. Make sure to mark upper and lower
for reinstallation.
3. Remove tail lights.
a. Remove Tail lights from body. Only inner screws
toward the tailgate on each light need to be
removed.
b. Unplug lights from Harness.
c. Remove Quarter panel inner foam liner both
sides and save for reinstallation.
4. 2011-2012 Model: Remove two T30 torque bolts
and rear tail gate door guide from tail gate. Guide
Remove factory
assembly
Tailgate
Grommet
Wiring
Harness
Tailgate
Hinge
Clip
Tail Light
Jeep Body
Inner Screws
Jeep Body
Light Opening
Harness
Remove Foam
Liner
