JK Wrangler HD Winch Bumper 2 Kit #83210/83220/83222/83211/83221/83223

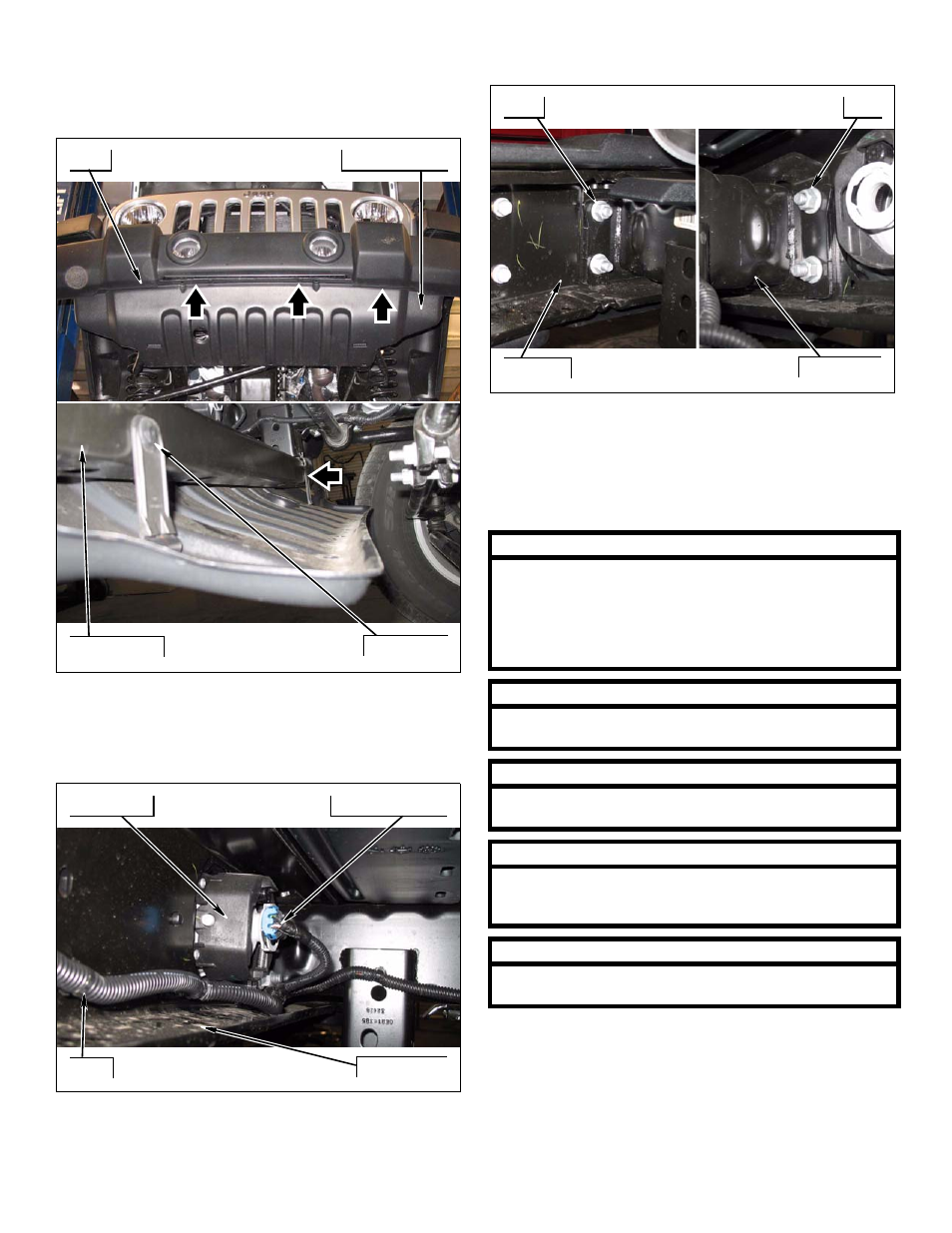

Prepare to Install Bumper
1. Remove four bolts, two push clips and lower splash
guard from lower crush zone and front bumper.
2. Disconnect fog lights wiring harnesses from fog
lights if equipped.
3. Remove wiring harness and clips from lower crush
zone.
Bolts Splash Guard
Push Clips Crush Zone
Fog Lights Wiring Harness
Crush Zone Clips
4. Remove four nuts, four spacer plates and front
bumper from frame horns.
5. Remove eight screws and two fog lights from front
bumper.
Install Bumper
1. Note: 2010 & 2012 Models require a small
amount of trimming to lower crash bar. Mark and
trim (using a cut off wheel) a small amount of over-
NOTE
Bumper is designed to work with many Mile Marker
and Warn Winches. Check measurements to verify fit-
ment of winches before purchase. In general this
bumper will fit smaller-midsized winches. For larger
winches bumper P/N #83211/83221/83223 may be
needed.
NOTE
Bumper can be installed without winch. Follow direc-
tions excluding winch install step directly below.
NOTE
Rear bend on winch plate may be opposite of pictured
below.
NOTE
Center bumper plate shown below. Winch mount plate
for offset bumper P/N #83211/83221/83223 does not
have triangle shaped tabs and holes are offset.
NOTE
2012 Model: Will require installion steps & kit 87046
Vacuum Pump Relocation Kit
Nuts Nuts
Frame Rail Bumper
OUTSIDE
INSIDE
