6 ‘84-’01 XJ Front Bumper - Kit 83202, 83203
Front of Vehicle

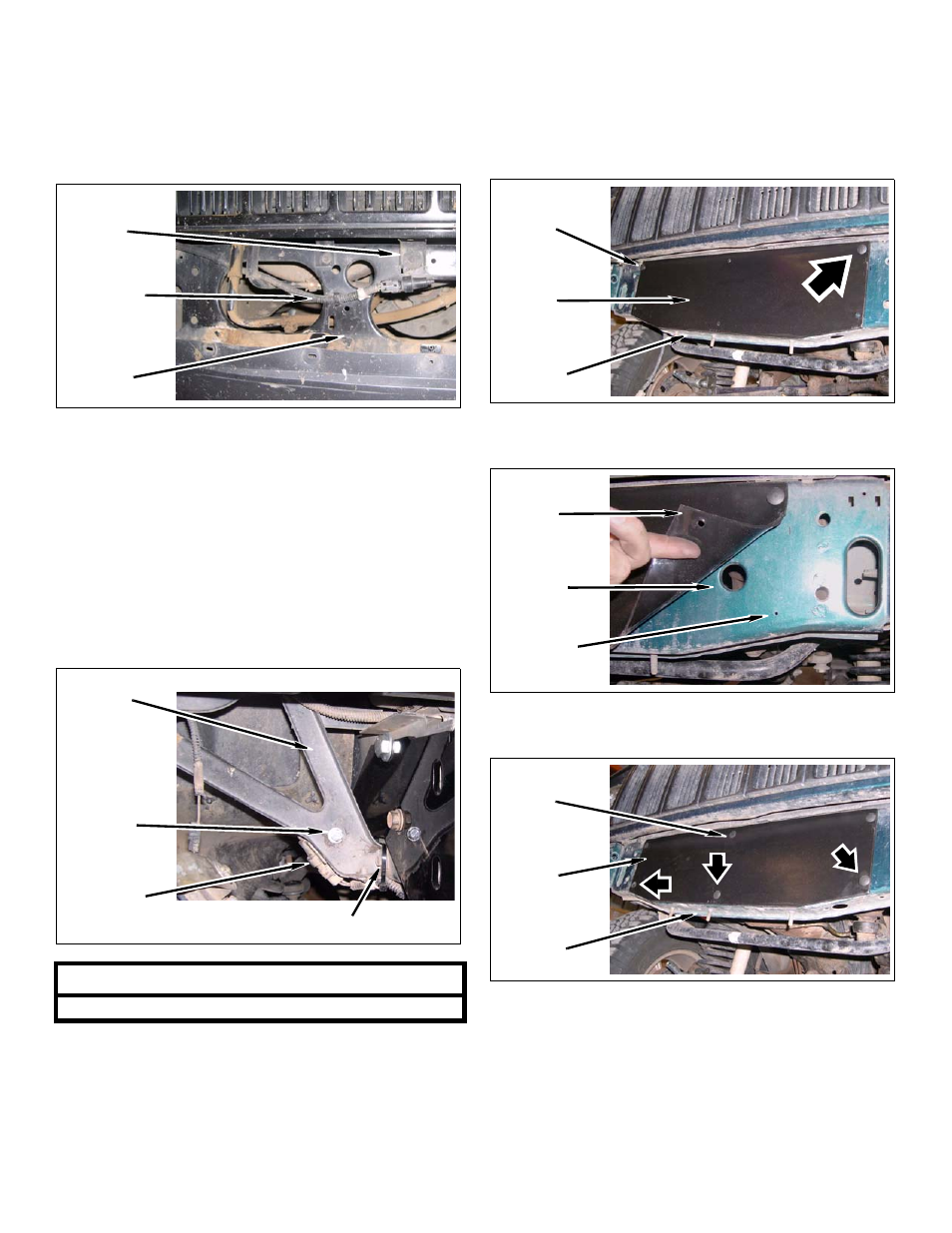

1. Air temp sensor
a. Remove bolt and sensor from core support.
Install bolt back into core support.
b. Disconnect wiring harness from sensor.
c. Remove sensor wiring harness and clip from
core support.
d. Route wiring harness connector next to passen-
ger side horn.
e. Install sensor onto passenger side bracket with
kit bolt (1/4” x 1”), two kit washers (1/4” SAE),
and kit nut (1/4” Nylock).
f. Connect wiring harness onto sensor.
g. Install wiring harness onto bracket with kit tie
(zip).
NOTE
Drill 1/4” hole into bracket, if necessary.
Bolt &
Sensor
Wiring
Harness &
Clip
Core
Support
Bracket
Kit Bolt
(1/4” x 1”),
Kit Washers
(1/4” SAE),
Kit Nuts
(1/4” Nylock)
Sensor &
Wiring Harness
Kit Tie (Zip)
2. Gap guard
a. Install kit gap guard, dull side out, onto core
support with two kit clips (push) through top
driver and passenger holes of kit gap guard and
corresponding holes in core support.
b. Drill four 7/32” holes into core support corre-
sponding to kit gap guard holes.
c. Install 4 kit clips (push) into previously drilled
holes.
Kit Clips
(Push)
Kit Gap
Guard
Core
Support
Kit Gap
Guard
Core
Support
Drill Here
Kit Clip
(Push)
Kit Gap
Guard
Core
Support
