Camera, Camcorder, Game
&

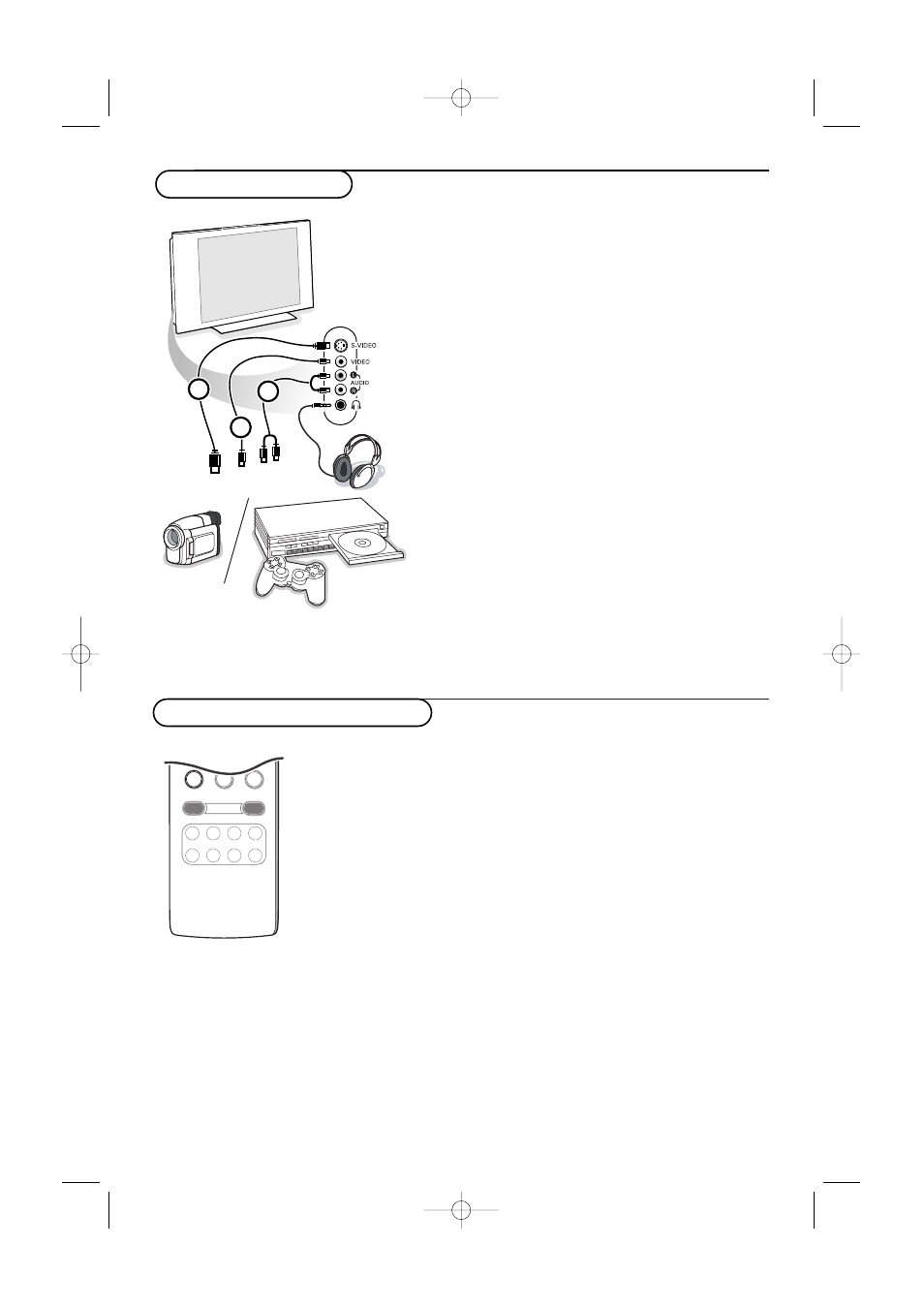

Connect your camera, camcorder or game as shown.
é
Connect to
VIDEO
2 and
AUDIO L
3 for mono
equipment. For stereo equipment also connect
AUDIO
R
3.
S-VHS quality with an S-VHS camcorder is obtained by
connecting the S-VHS cables with the
S-VIDEO
input
1 and
AUDIO
inputs 3.
Do not connect cable 1 and 3 at the same time. This
may cause picture distortion !
Headphone
&
Insert the plug into the headphone socket L as
shown.
é
Press
MUTE
on the remote control to switch off the
internal loudspeakers of the TV.
The headphone impedance must be between 8 and 4000
Ohm. The headphone socket has a 3.5 mm jack.
In the Sound menu select
Headphone volume
to
adjust the headphone volume.
&
Press the
AV+
button repeatedly or select
Source
in the Settings
menu, see p. 23, to select
AV1
,
AV2
,
AV3
,
HDMI1
,
HDMI2
,
Side
or
TV
,
according to where you connected your devices.
é
Press the cursor up/down.
“
Press
OK
.
✓
MODE
ON/OFF
Ambilight
7
8
9
0
Ò
®
‡
π
º
†
- FAVORITES -
FORMAT
VIEW
AV+
-
SCREEN
.@
To select connected devices
