English, Recorder – Philips 50PF9830A-37B User Manual
Page 55
51
51
English
Note: Do not place your recorder too close to the screen as some recorders may be susceptible for signals from the
display. Keep a minimum distance of 20” from the screen.
&

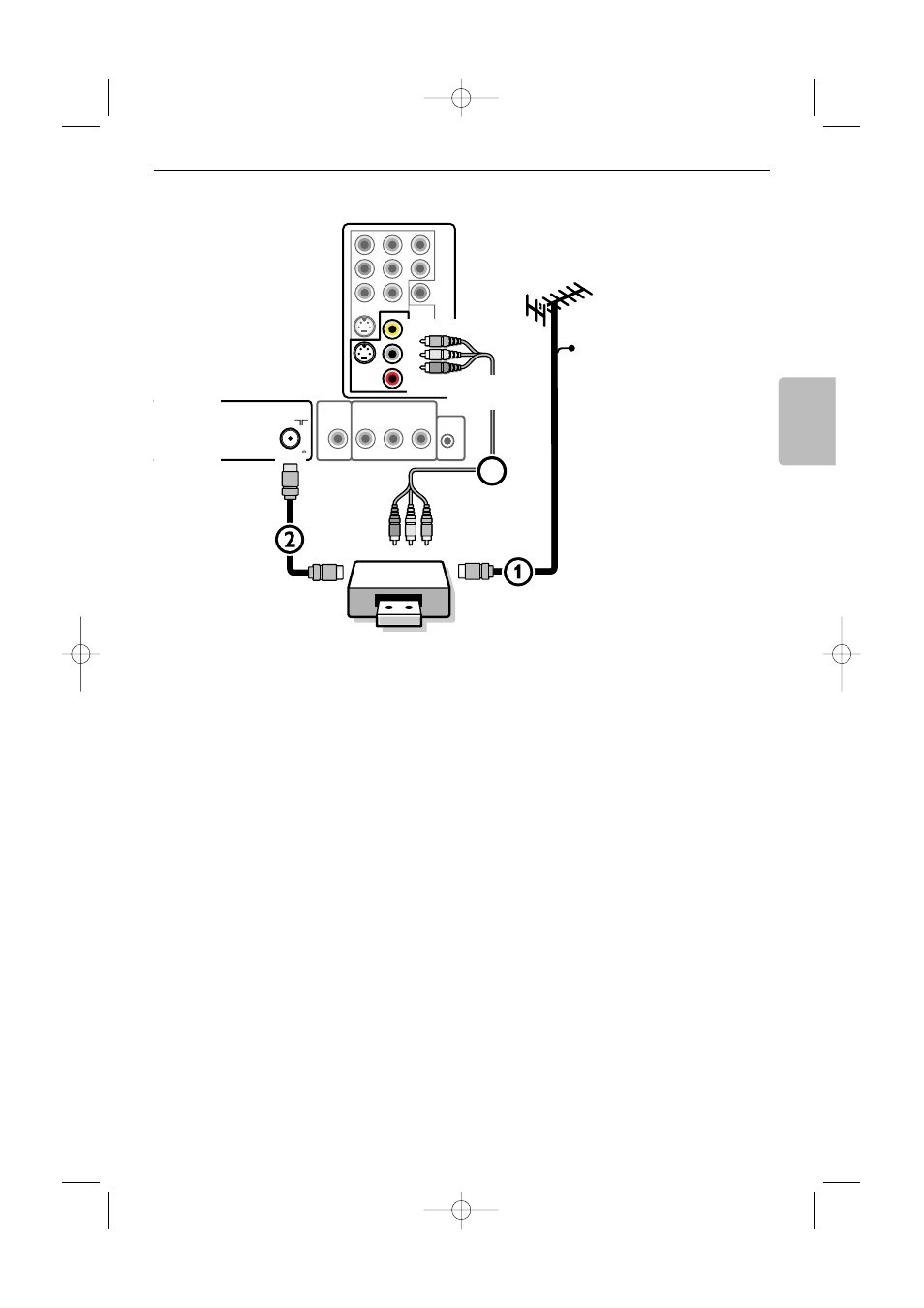

Connect the RF Antenna or Cable TV cable (eventually via an optional two-way signal splitter and/or
Cable TV converter box) 1 to the
RF IN
socket of your recorder.
é
Connect another RF cable 2 from the output
OUT
of your recorder to the TV’s
CABLE/ANTENNA 75 Ω
x jack.
“
Better playback quality can be obtained if you also connect the Video, Audio Left and Right (only for
stereo devices) AV cables 3 to the
VIDEO
,
AUDIO L
and
R
input jacks of
AV2
.
If your recorder has an S-VHS video jack:
For improved picture quality, connect an S-video cable with the
S-VIDEO
input instead of connecting
the recorder to the
VIDEO
jack of
AV2
.
S-Video does not provide audio, so audio cables must still be connected to provide sound.
Recorder (
VCR
-
DVD
+
RW
)
CABLE / ANTENNA
L
Pr
H
R
Pb
V
DIGITAL
AUDIO
IN
Y
Pr
Pb
Y
S-VIDEO
S-VIDEO
AV2
AV3
AV1
VIDEO
L
R
VIDEO
R
L
MONITOR OUT
VIDEO
G-LINK
DIGITAL
AUDIO
OUT
75
CABLE
RECORDER
OUT
IN
OUT
3
AV2 :
L + R + VIDEO
