42
G Wireless Modem Router
sections table of contents 1 2 3 4 6 7 8 9 10 5
ManUallY ConfIGURInG YoUR RoUTeR

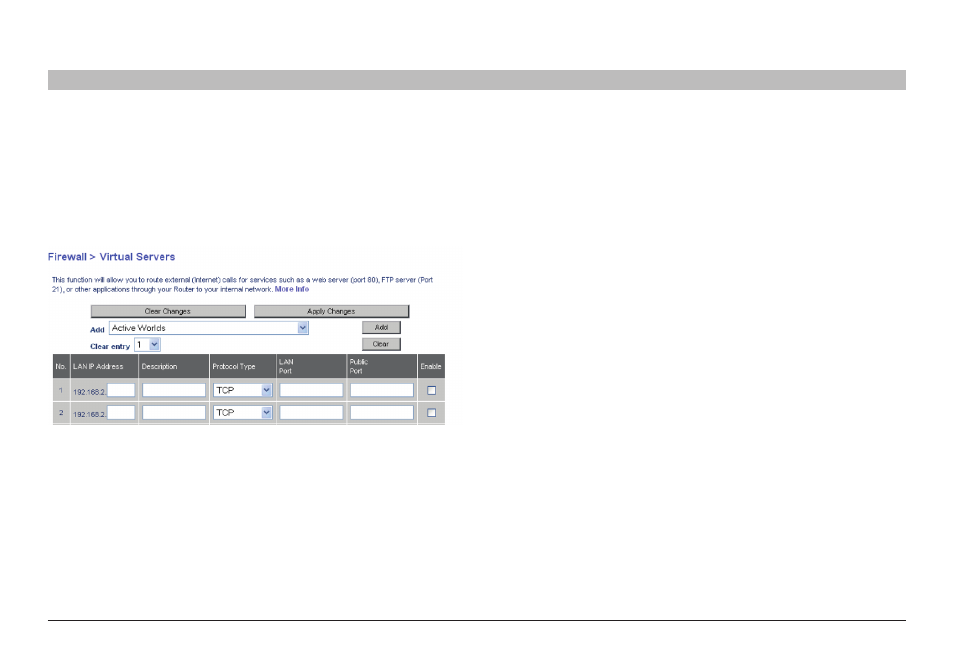

Manually entering settings into the Virtual server
To manually enter settings, enter the IP address in the space provided
for the internal (server) machine, the port(s) required to pass, the port
type (TCP or UDP), and click “Apply Changes” Each inbound port entry
has two fields with five characters maximum per field that allows a start
and end port range (eg, [xxxxx]-[xxxxx]) For each entry, you can enter
a single port value by filling in the two fields with the same value (eg,
[7500]-[7500]) or a wide range of ports (eg, [7500]-[9000]) If you need
multiple single-port values or a mixture of ranges and a single value,
you must use multiple entries up to the maximum of 20 entries (eg, 1
[7500]-[7500], 2 [8023]-[8023], 3 [9000]-[9000]) You can only pass one
port per internal IP address Opening ports in your firewall can pose
a security risk You can enable and disable settings very quickly It is
recommended that you disable the settings when you are not using a
specific application
Choosing an application
Select your application from the drop-down list Click “Add” The
settings will be transferred to the next available space in the screen
Click “Apply Changes” to save the setting for that application To remove
an application, select the number of the row that you want to remove,
then click “Clear”
