THE MENU SYSTEM
80 p/n 12858 Rev. 0717A
ADVANCED ZONE A SETTINGS 1 Max Level +15 dB 2 Product ID 1 3 On Screen Display Enabled 4 V1 Output Tape 5 Surround Modes Auto WARNING Connecting a tape recorder to V1 in LINE mode can cause speaker damage next item adjust MENU advanced setup ADVANCED ZONE B SETTINGS 1 Level Control Variable 2 Maximum Level +15 dB 3 Product ID 2 4 V2 Output Tape WARNING Connecting a tape recorder to V2 in LINE mode can cause speaker damage next item adjust MENU advanced setup POWER ON TITLES 1 Power On Line 1 ' BK Components ' 2 Power On Line 2 ' Pwrd by Motorola ' next item SEL select MENU advanced setup DSP USAGE 1 Remaining free DSP Processing Power is XX MIPS 2 Percentage of DSP Utilized processing Power YY Percent MENU advanced setup
ADVANCED SYSTEM SETUP 1 Zone 1 Setup 'A' 2 Zone 2 Setup 'B' 3 Power On Titles 4 Control Out 5 Security Options 6 DSP Usage 7 RS-232 Control Port next item SEL select MENU setup system SETUP CROSSOVERS + LFE 1 Crossover 80.0 Hz THX 2 High Pass 12.0 dB THX 3 Low Pass 24.0 dB THX 4 Peak Limiter 0.0 dB 5 LFE Level 0.0 dB 6 DTS LFE Mode Movie 7 Subwoofer Phase Normal next item adjust MENU setup speakers SETUP SPEAKER LEVELS 1 Left Front 0.0 dB 2 Center 0.0 dB 3 Right Front 0.0 dB 4 Right Surround 0.0 dB 5 Right Surr Back 0.0 dB 6 Left Surr Back 0.0 dB 7 Left Surround 0.0 dB 8 Subwoofer 0.0 dB next item adjust MENU setup speakers
SETUP SPEAKERS 1 Speaker Size 2 Speaker Location 3 Speaker Levels 4 Crossovers + LFE 5 Room Equalization next item SEL select MENU setup system SETUP DISPLAYS 1 Front Panel Bright 2 Overlay Opaque Bright 3 Background Color Grey 4 Z1 Monitor Video Auto 5 Z1 Monitor Aspect 4:3 next item adjust MENU setup system SETUP DVD INPUT 1 Favorite Mode Surround 2 Favorite Speakers 7 3 Level 0.0 dB 4 Name DVD 5 Component Video 2 6 DVD Audio Input No next item adjust MENU setup system SETUP PRESETS 1 Volume in Presets Yes When recalling a preset volume level changes to Preset Level 2 Preset Names Auto When saving a preset system generates a name next item adjust MENU setup system
MEMORY BACKUP AND RESTORE 1 Memory Operation Backup Save ALL memory settings in EEPROM SEL preform adjust MENU main menu SETUP SYSTEM 1 Speakers 2 Displays 3 Inputs 4 Presets 5 Advanced next item SEL select MENU main menu ZONE 2 FAVORITES Preset 0 Yes 'TV -25 dB ' 0. . 9 +10 Preset recall SEL edit name yes/no MENU main menu ZONE 1 FAVORITES Preset 0 Yes 'TV -25 dB ' 0. . 9 +10 Preset recall SEL edit name yes/no MENU main menu ZONE 2 OPERATION Power
O
N
Source
DVD
Record DVD
Video
DVD
Volume -25.0
next item adjust 0. . 9 +10 recall SAVE preset MENU main menu SEL edit EQ

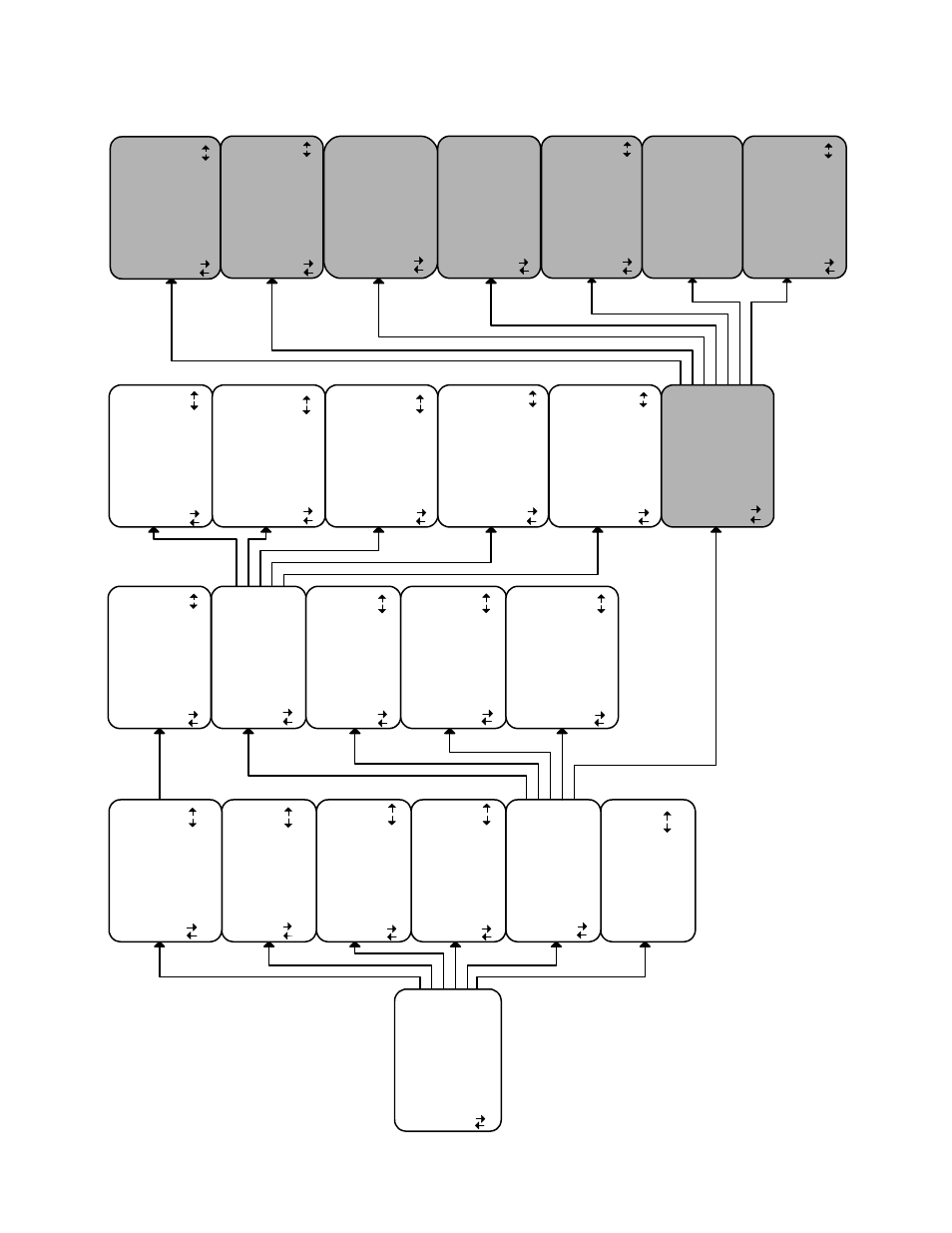

MAIN MENU 1 Zone 1 Operation 2 Zone 2 Operation 3 Zone 1 Favorite Presets 4 Zone 2 Favorite Presets 5 System Setup 6 Memory Backup/Restore next item SEL select MENU exit menu system
SETUP ROOM EQUALIZATION Test Tone 20.0 Hz Off Notch 100.0 Hz 0.0 dB Notch Width 97.6-102.4 Hz Bass 100.0 Hz 0.0 dB Treble 10.0 kHz 0.0 dB next item adjust MENU setup system
ZONE 1 OPERATION Source
D
V
D
Record DVD
Video DVD Volume -25.0 Mode Surround Center 0.0 Spkrs 7 Rear 0.0 Eq 1 Variable Sub 0.0 next item adjust 0. .9 +10 recall SAVE preset MENU main menu SEL edit EQ
SETUP SPEAKER SIZE 1 Front Small THX 2 Center Small THX 3 Surround Small THX 4 Surround Back 2 Small THX 5 Subwoofer YES THX next item adjust MENU setup speakers SPEAKER LOCATION feet 1 Left Front 10.0 2 Center 10.0 3 Right Front 10.0 4 Right Surround 5.0 5 Right Surr Back 5.0 6 Left Surr Back 10.0 7 Left Surround 10.0 8 Subwoofer 10.0 next item adjust MENU setup speakers
CONTROL OUT SETUP 1 Control Out 1 2 Control Out 2 3 Control Out 3 4 Control Out 4 next item SEL select MENU advanced setup SECURITY OPTIONS 1 Advaned Menu Visible 2 Memory Locked No 3 Front Locked No 4 IR Locked No next item adjust MENU advanced setup
VARIABLE EQUALIZATION Frequency Level Bass 100.0 Hz 0.0 dB Treble 10.0 kHz 0.0 dB LFE Level 0.0 dB DTS LFE Mode Movie Dynamic Range Normal next item adjust MENU setup system
RS-232 PORT SETUP 1 Port Enable 2 Baude Rate 9600 3 Echo Enable 4 Update Enable 5 Receive ID 0 6 Transmit ID 0 next item adjust MENU advanced setup
