Bradyprinter 200M-e and 200M-e 300 User’s Guide

35

)DQIROG 0HGLD /RDGLQJ

NOTE: A calibration must be performed when media and ribbon
(if used) are first installed in the printer, or if a different type of
media or ribbon is being used.

Fanfold media feeds through either the bottom or rear access slot from
outside the printer.

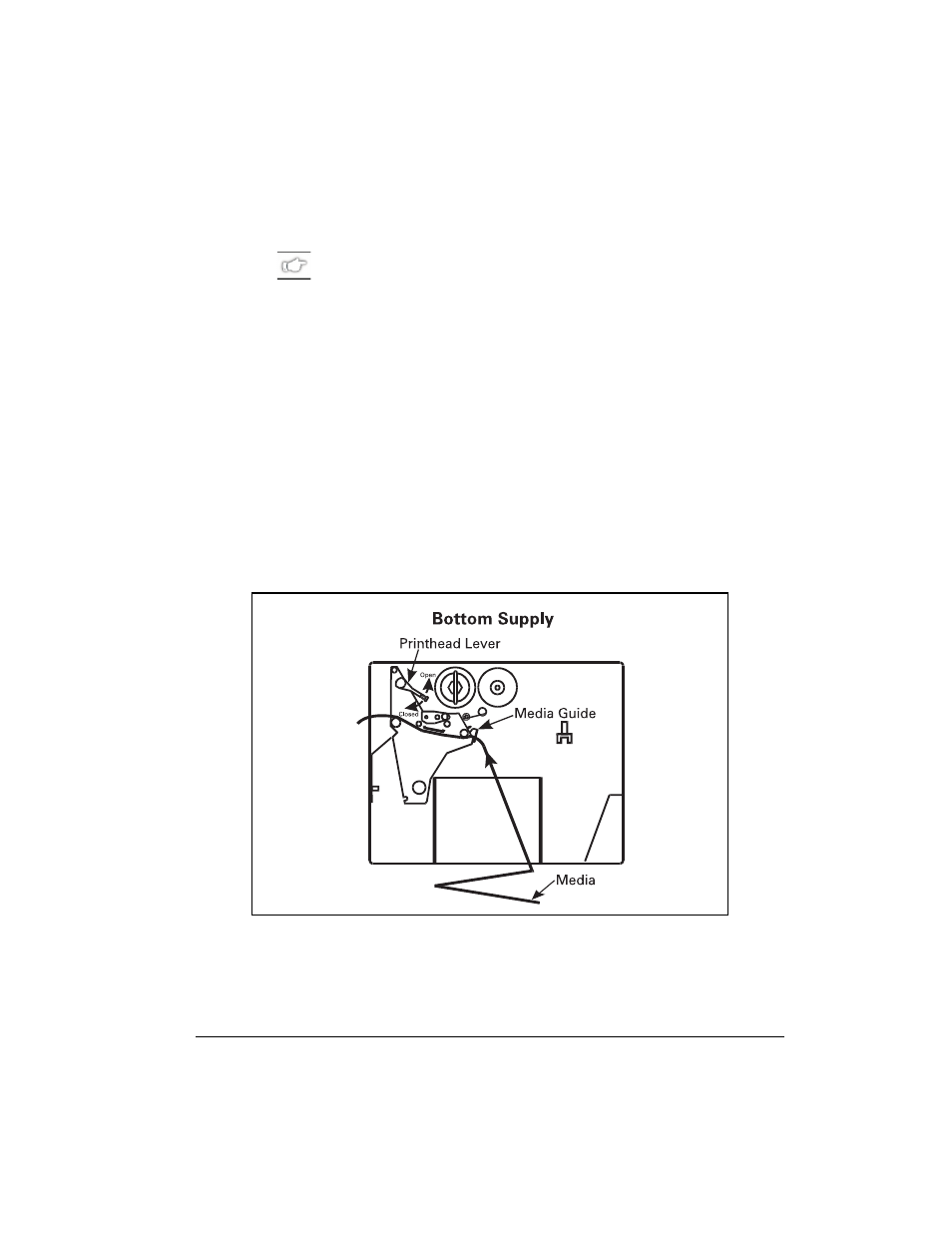

Refer to Figure 20 and Figure 21.

1. Open the printhead.

2. Slide the media guide as far from the printer frame as possible.

3. Load media as shown. If in cutter mode, route media through the

cutter.

4. Slide in the media guide so it just touches, but doesn’t restrict, the

edge of the roll.

5. Close the printhead.

Figure 20
