Bradyprinter 200M-e and 200M-e 300 User’s Guide 27
5ROO 0HGLD /RDGLQJ
NOTE: A calibration must be performed when media and ribbon
(if used) are first installed in the printer, or if a different type of
media or ribbon is being used.
7HDU2II 0RGH

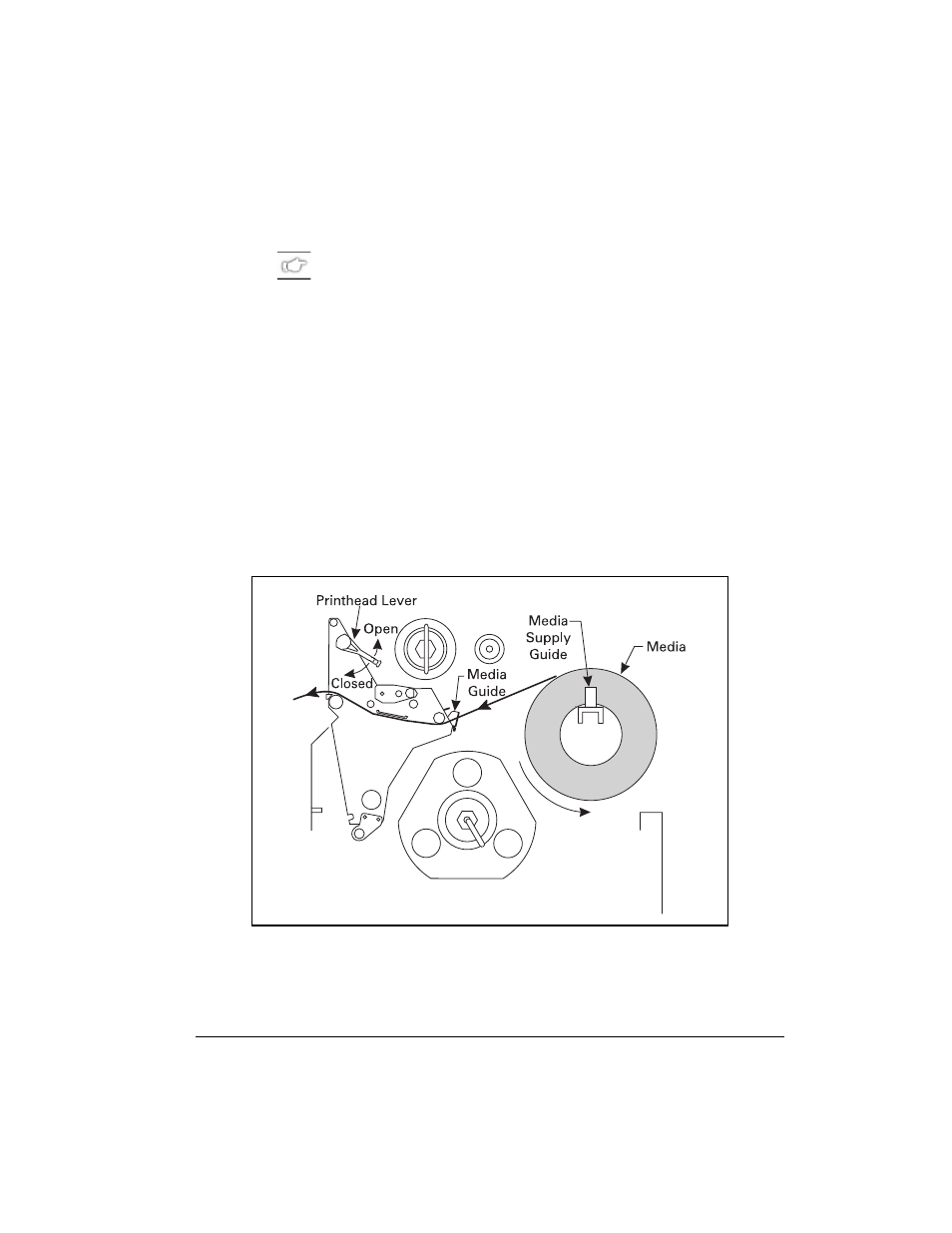

Refer to Figure 15.
1. Open the printhead.
2. Slide the media guide and media supply guide as far from the printer
frame as possible.
3. Load media as shown.
4. Slide in the media guide and media supply guide so they just touch,
but don’t restrict, the edge of the roll.
5. Close the printhead.
Figure 15
