Audio device
The Monitor-in port allows you to connect audio devices other than the
devices described above. This port also functions as a line in port.
Connecting an audio device
Use the Monitor-in cable shipped with this product and a commercially
available audio cable to connect an audio device. The audio cable must be
a one with a 3.5mm stereo mini jack.
1. Insert the plug of the Monitor-in cable into the Monitor-in port of your
computer.

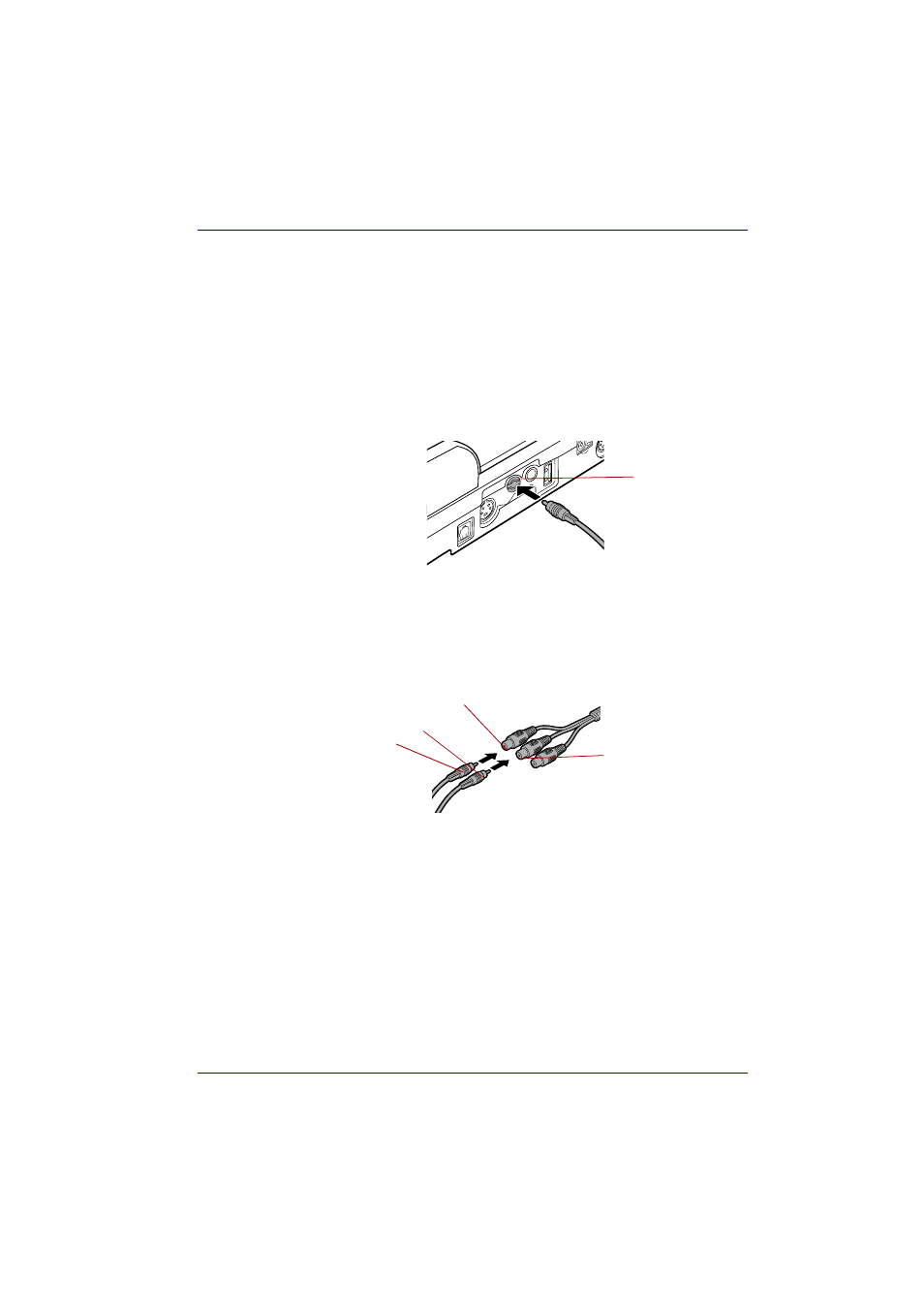

Connecting the Monitor-in port
Check the shape of the connector before inserting into the port.
2. Insert the corresponding plugs of the audio cable into the sound input
terminals (red: sound, right channel, white: sound, left channel) of the
Monitor-in cable.
Connecting the cable
3. Insert the other end of the audio cable into the line out port of the audio
device.
Disconnecting an audio device
When removing the audio device, first disconnect the plugs of the audio
cable from the Monitor-in cable, and then disconnect the Monitor-in cable
from the Monitor-in port.
Monitor-in port
Sound left input (white)
Sound right input (red)
red
white
