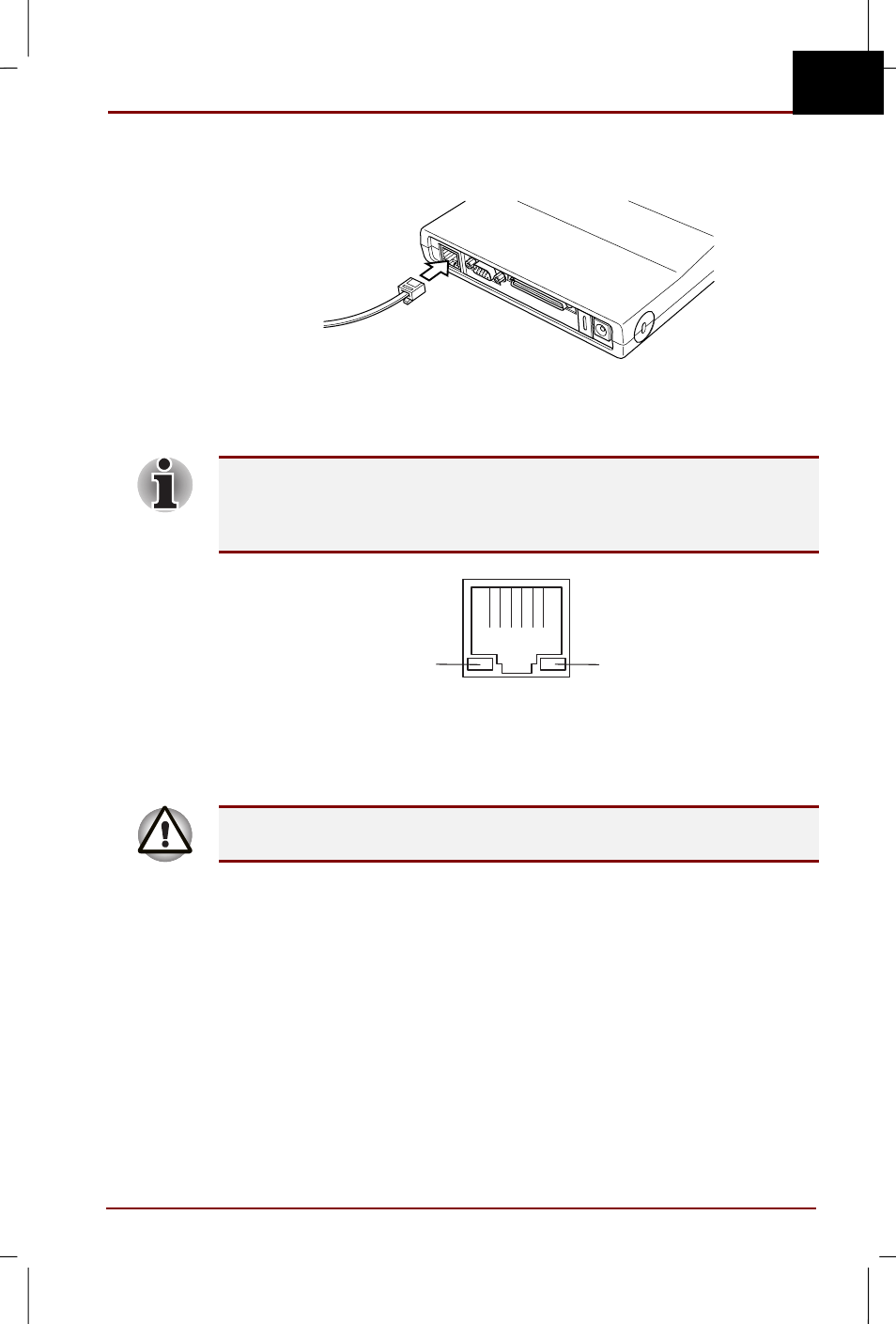

2. Plug one end of the cable into the Multi Media Port Replicator’s LAN
jack. Press gently until you hear the latch click into place.
Connecting the LAN cable
3. Plug the other end of the cable into a LAN hub connector. Check with
your LAN administrator before connecting to a hub.
When the Multi Media Port Replicator is accessing data on the LAN, the
LAN connector’s yellow LED glows. If the Multi Media Port Replicator is
connected to a LAN hub but not accessing data, the LAN connector’s
green LED glows.
GREEN YELLOW
LAN jack LED
Disconnecting
To disconnect the LAN cable, follow the steps below.
Before you disconnect the LAN cable, make sure the computer is not
accessing data. The green LED will glow when it is safe to disconnect.
1. Pinch the lever on the connector in the Multi Media Port Replicator and
pull out the connector.
2. Disconnect the cable from the LAN hub in the same manner. Check
with your LAN administrator before disconnecting from the hub.
