Installing a SelectBay module

To install a SelectBay module follow the steps below.
1. Turn the Multi Media Port Replicator upside down.
2. Slide the release latch to the unlock position.
3. Fit a coin into the notch in front of the release latch and twist to eject

the cover partially.

4. Grasp the cover and pull it out.

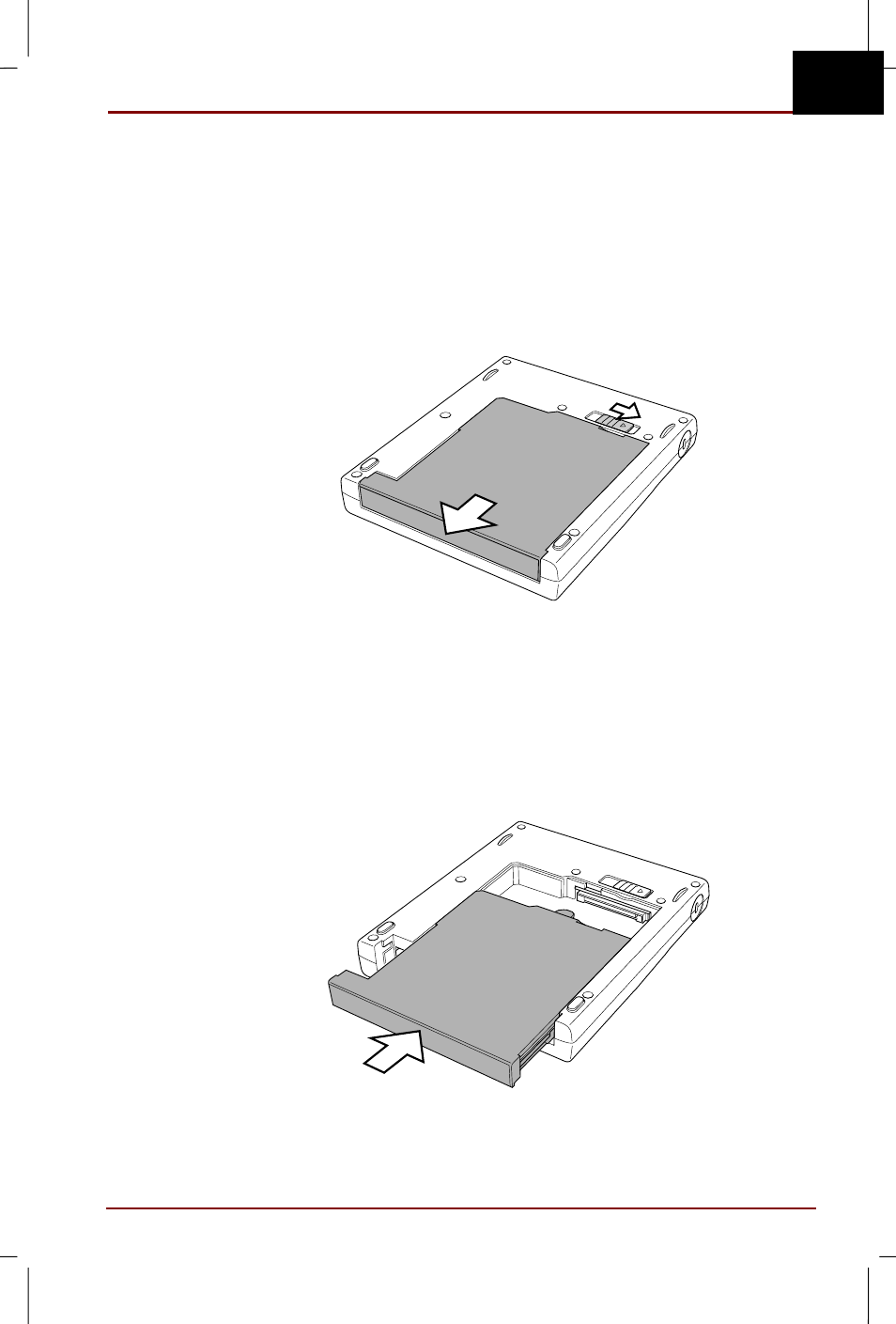

Removing the dummy module

5. If a module is in the cover, hold the module and cover firmly and pull

them a part.

6. Seat the new module in the cover.
7. Seat the module and tray in the SelectBay.
8. Brace the Multi Media Port Replicator with one hand and push the

module firmly toward the connector until the release latch clicks into the

lock position.

Inserting a module
