The figure below shows the Multi Media Port Replicator’s front and
right side.
SelectBay You can install a CD-ROM drive, DVD-ROM drive
or SelectBay HDD Adaptor II with a 6, 12 or 18
GB secondary hard disk drive.
SELECTBAY
LINE-OUT JACK
USB PORT
PS/2 MOUSE/
KEYBOARD PORT
PC CARD SLOT
PARALLEL PORT
SERIAL PORT

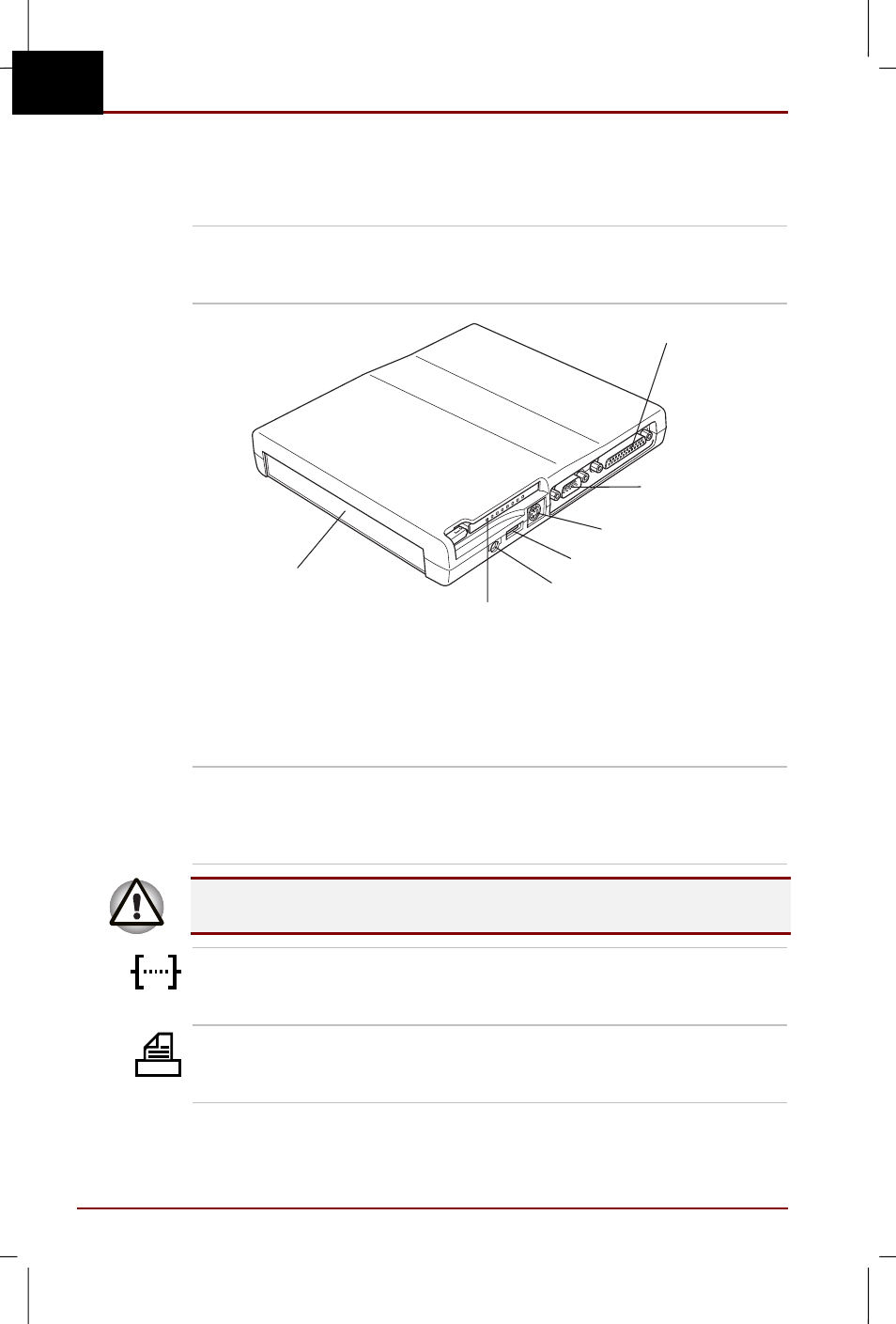

The front and right side
Right side
Refer to figure above for the location of items on the Multi Media Port
Replicator’s right side.
PC card slot A PC card slot can accommodate one 5 mm
PC card (Type II). The slot supports CardBus
PC cards. An AC adaptor must be connected to use
the PC card slot. PC card sound is not supported.
Keep foreign objects out of the PC card slot. A pin or similar object can
damage the Multi Media Port Replicator’s circuitry.
Serial port Use this 9-pin port to connect serial devices such
as an external modem, serial mouse or serial
printer.
Parallel port Use this Centronics®-compatible, 25-pin parallel
port to connect a parallel printer or other parallel
device.
