Multi Media Port Replicator User’s Manual 13
Version
1
Last Saved on 13/03/00 17:13
User's Manual – Port_Rep.doc – PART 01 -- ENGLISH – Printed on 13/03/00 as 01_PRep
GB
PS/2 mouse
keyboard port
Use this port to connect an external PS/2
compatible mouse or keyboard. The computer
automatically recognises which device is
connected when you turn on the power.
Universal Serial Bus
port
A Universal Serial Bus (USB) port enables chain
connection of a number of USB-equipped devices
to one port. You must connect an AC adaptor to
use the USB port.
Line-out jack A standard 3.5 mm mini line-out jack enables
connection of a stereo device for audio output.
Use this jack to play audio CDs. They will not
play through the computer’s internal speakers.
Back

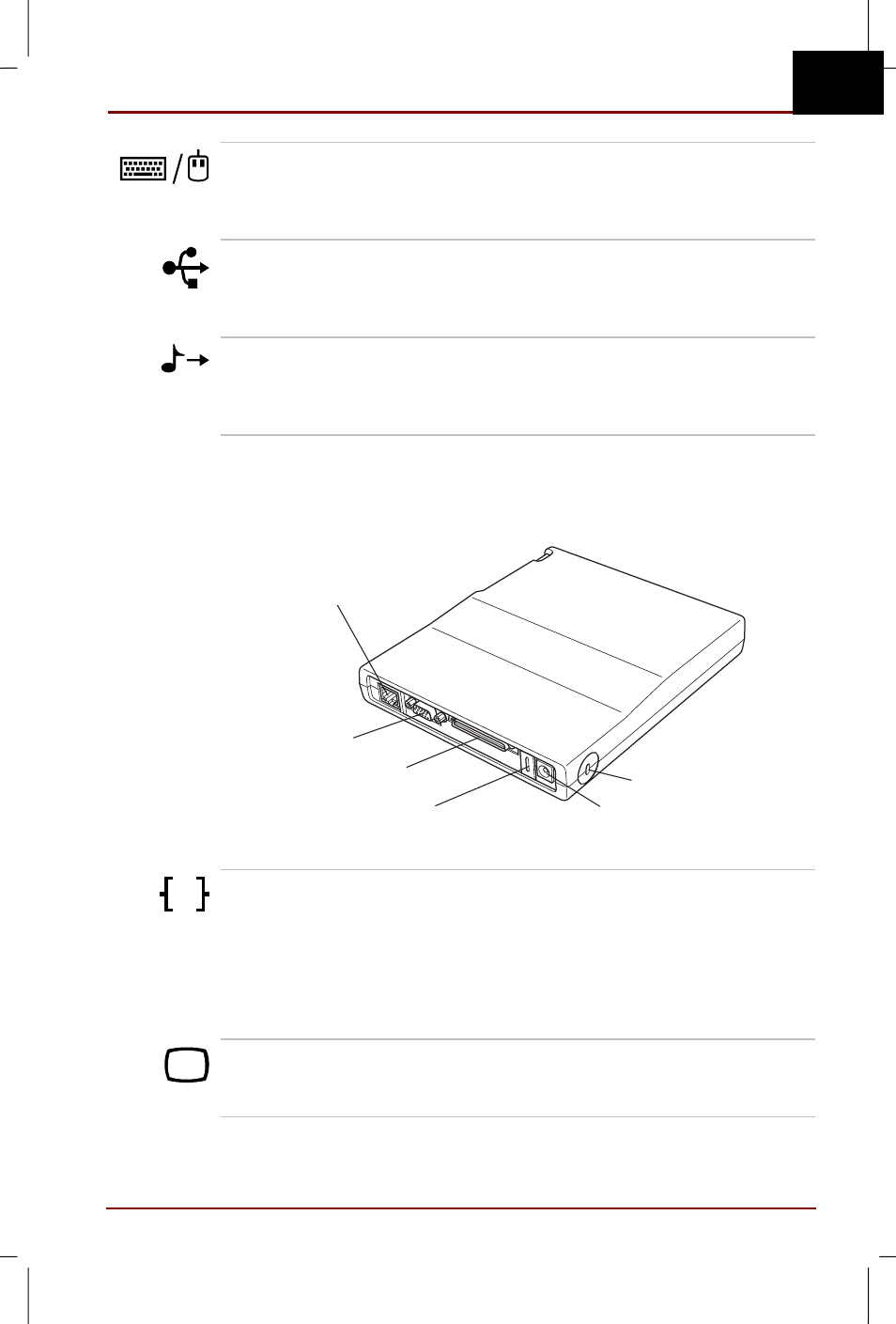

The figure below shows the Multi Media Port Replicator’s back and
left side.
COMPUTER CONNECTOR
SECURITY LOCK SLOT
DC IN DC IN COVER
EXTERNAL MONITOR PORT
LAN JACK
The back and left side
Ether
LAN jack Plug a local-area network connector into this jack.
LEDs on either side of the jack indicate the
condition of a LAN connection.
Green: The Multi Media Port Replicator is
connected to a LAN hub.
Yellow: Data is being transferred to or from
the LAN.
External monitor port This 15-pin port lets you connect an external
video monitor. Note that the Resume feature is
effective with an external monitor.
