2
1
EN
Note
• If you are unable to produce a clear recording
with this recorder even after adjusting the
recording level (☞ P.65), this could potentially
be because the output level for the connected
devices is too high or too low. When external
devices are connected, perform a test recording
and then adjust the output level for the external
devices.
Note
• When you adjust the sound quality settings
related to playback on the recorder, the audio
output signal sent out from the EAR jack will
change as well (☞ P.71).

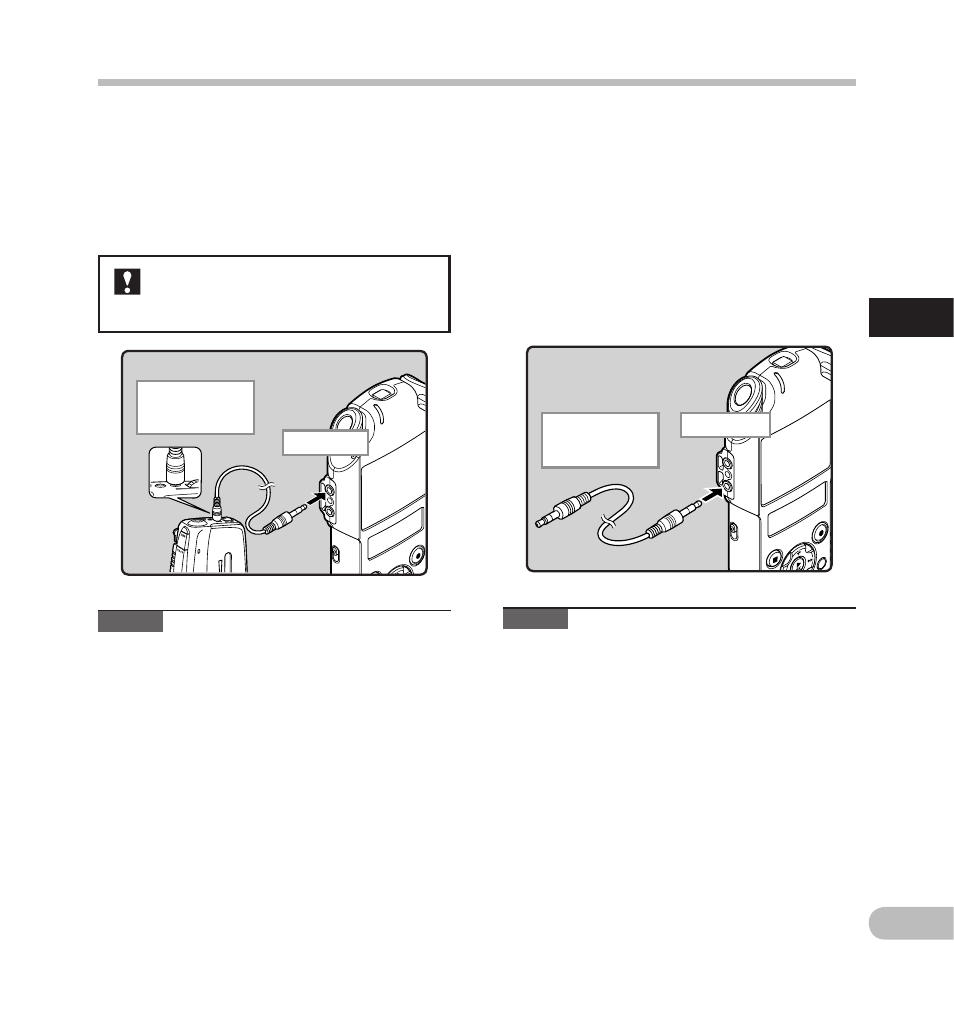

Recording the sound of this recorder with
other devices:
• The sound of this recorder can be recorded
using another device. In order to do so, connect
the recorder’s EAR jack to the other device’s
audio input terminal (MIC jack) using the
connecting cord KA334 (optional) for dubbing.
• When connecting to another device with
no LINE IN jack but only a MIC IN, use the
connecting cord KA333 (optional) equipped
with a resistance attenuator for dubbing.
To EAR jack To audio input
terminal of other
devices
Recording the sound of other devices with
this recorder:
The sound can be recorded when connecting to
the audio output terminal (earphone jack) of the
other device and the MIC jack of the recorder with
the connecting cord KA333 (optional) for dubbing.
Before you connect an external
microphone to the MIC jack, change the
[Input Jack] setting to [Line] (☞ P.67).
To audio output
terminal of other
devices
To MIC jack
Recording A
Re
co
rd
in
g
A
