20
EN
1
C
o
nn
e
c
ti
o
n
o
f th
e XLR
/S
tan
dard P
h
o
n
e C
o
mb
o Ja
ck an
d P
h
an
to
m P
o
wer Sup
p
ly

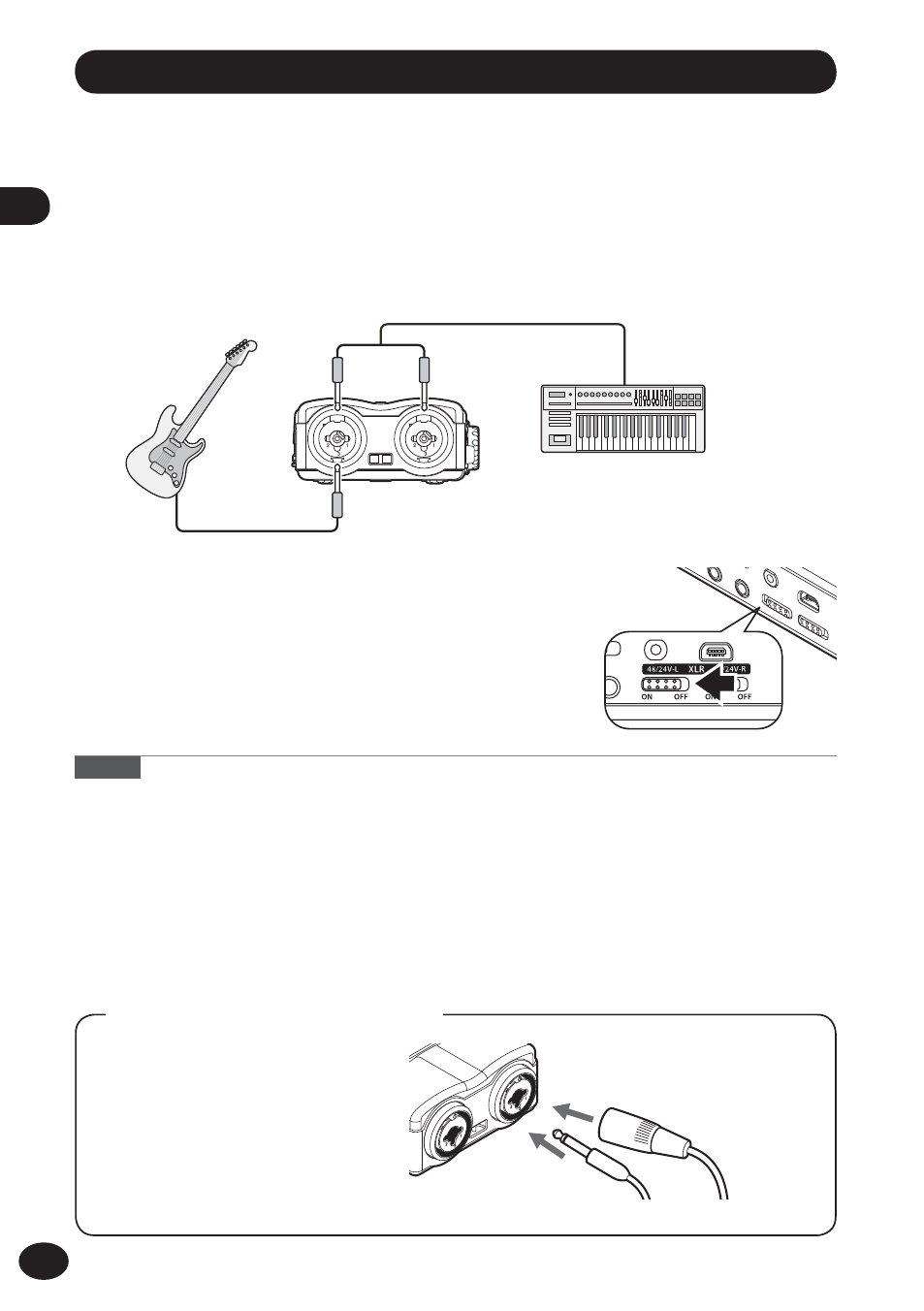

Connecting the instruments
▌
Connect a monaural instrument to the XLR/standard phone combo jack (L).
The guitar, bass guitar, keyboard and other instruments can be directly connected to the XLR/
standard phone combo jack. Some settings are required when connecting a microphone that
needs the phantom power supply, such as a condenser microphone.
Connect a stereo output instrument such as
a keyboard to both the XLR/standard phone
combo jacks (L) and (R).
Connecting the microphone
▌
Connect the dynamic or condenser microphone to the
XLR/standard phone combo jack (L) or (R). If the phantom
power supply is required, slide the XLR Power switch to
[ON] on the XLR/standard phone combo jack to which the
microphone is connected.
Connection of the XLR/Standard Phone Combo Jack and Phantom Power Supply
XLR/standard phone combo jack
The XLR/standard phone combo
jacks of the recorder support
the XLR type and standard type
plugs.
Standard type (unbalanced) XLR type
A
•
For details on the settings, refer to "Microphone power source [Mic Power]" ( ☞ P. 84).
• Slide the XLR Power switch to [OFF] if the condenser microphone that needs the phantom power
supply is not connected.
Notes
• Operation will be unavailable during recording.
• The recording function will be unavailable for three seconds after the XLR Power switch is turned on.
