Connecting a Video Player
1. If your video player uses a round, one-prong composite video
connector, you’ll need only the A/V cable that shipped with
the projector.
• If your video player uses a round, four-prong S-video
connector, you’ll need an S-video cable in addition to the
A/V cable. The S-video cable is sold separately.
2. Plug the A/V cable’s yellow connector into the “video-out”
port on your video player (Figure 9). This port may be
labeled “To Monitor.”
• If you’re using an S-video cable, connect it to the
“s-video out” connector on the video player (Figure 9).
3. Plug the other yellow connector into the composite connector
on the back of the projector.
• If you’re using S-video, plug the other end of the cable
into the “s-video” connector on the projector (Figure 9).

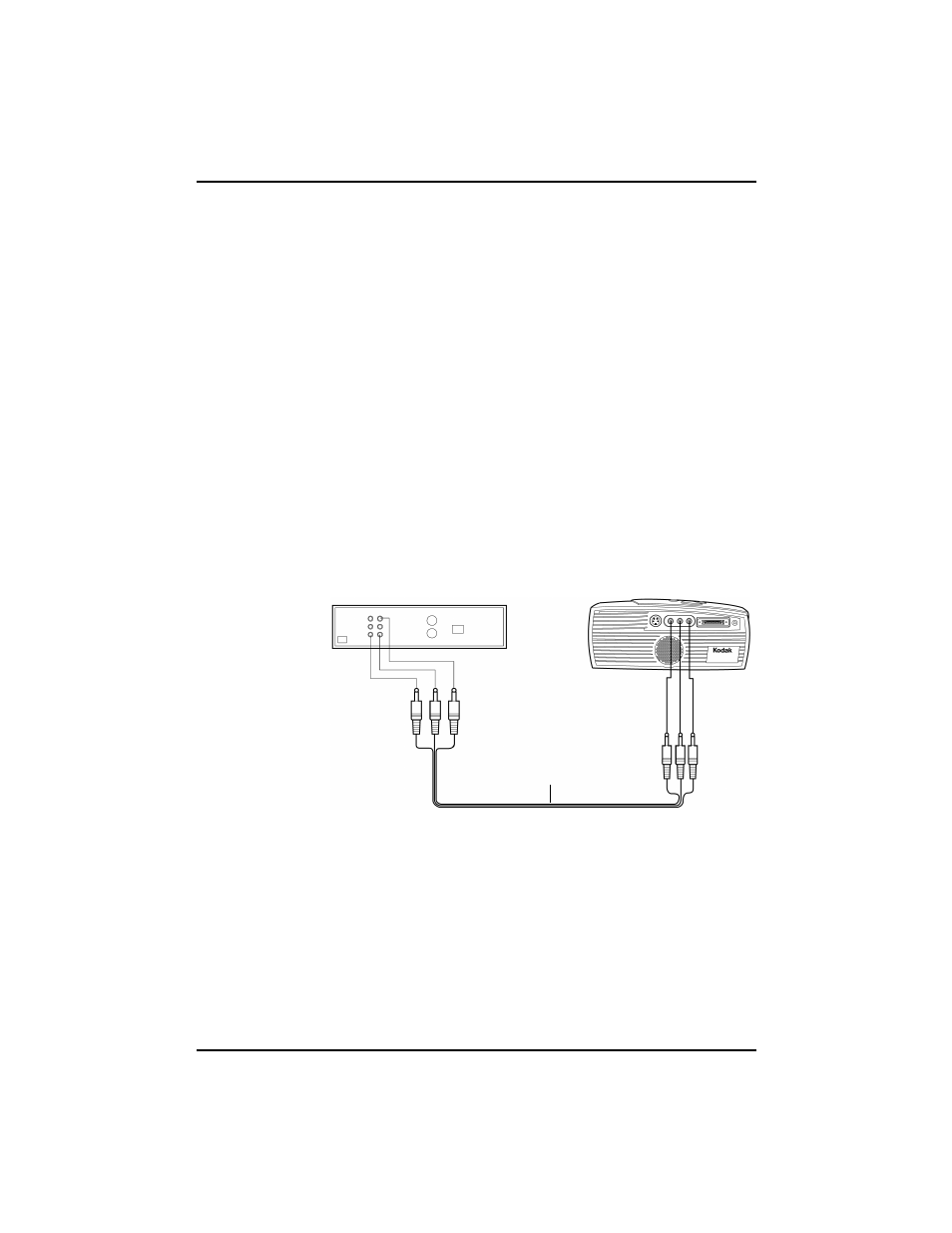

Figure 9 Connecting with the standard A/V cable
audio/video cable
