Setting up the Projector

3/99

Connecting the Cable Hub Connector

&DXWLRQ 7XUQ RII WKH FRPSXWHU PRQLWRU DQG SURMHFWRU

ZKHQHYHU \RX FRQQHFW RU GLVFRQQHFW FDEOHV

The cable hub connector simplifies the connection process by
providing a central hub for all the connections between the
projector and your computer. The connectors on the cable hub are
labeled with icons. The cable hub also has an LED that lights
solid green when the projector is on and the cable hub is
functioning properly. A slowly blinking LED indicates that the
cable hub is waiting to initialize with the projector; a rapidly
blinking LED indicates a problem with the cable hub.

Connect the

end of the cable hub to the

connector on

the projector’s connector panel. (Figure 4)

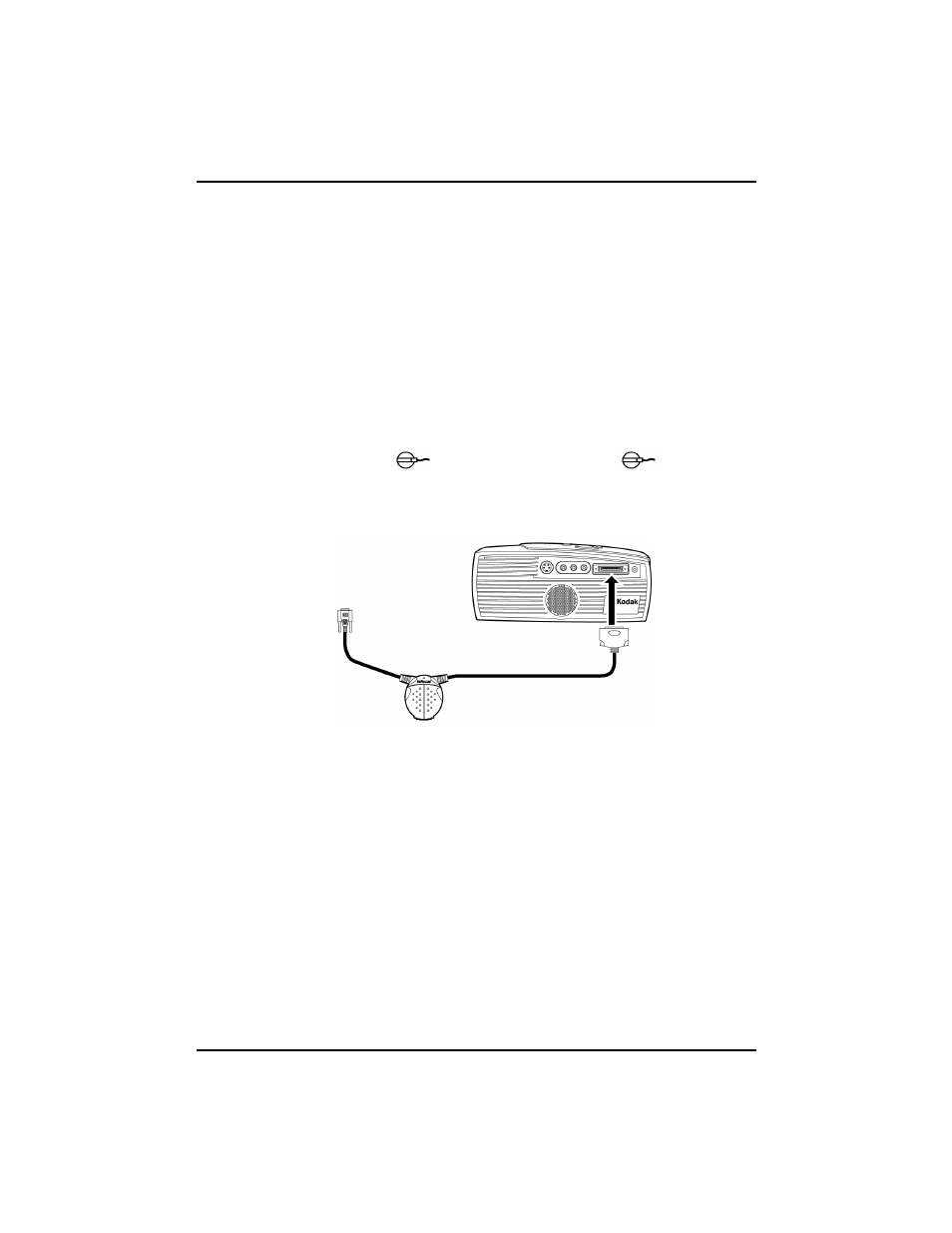

Figure 4 Connecting the cable hub to the projector

Note:

In some older computers, the monitor connector does not
have a hole for Pin 9. If you have trouble connecting the
cable hub to your computer, contact Kodak Support. See
“If You Need Assistance” on page 8
