DP2000 Digital Projector

P/N 3H7570

009-0469-00

Q

uick

S

tart

G

uide

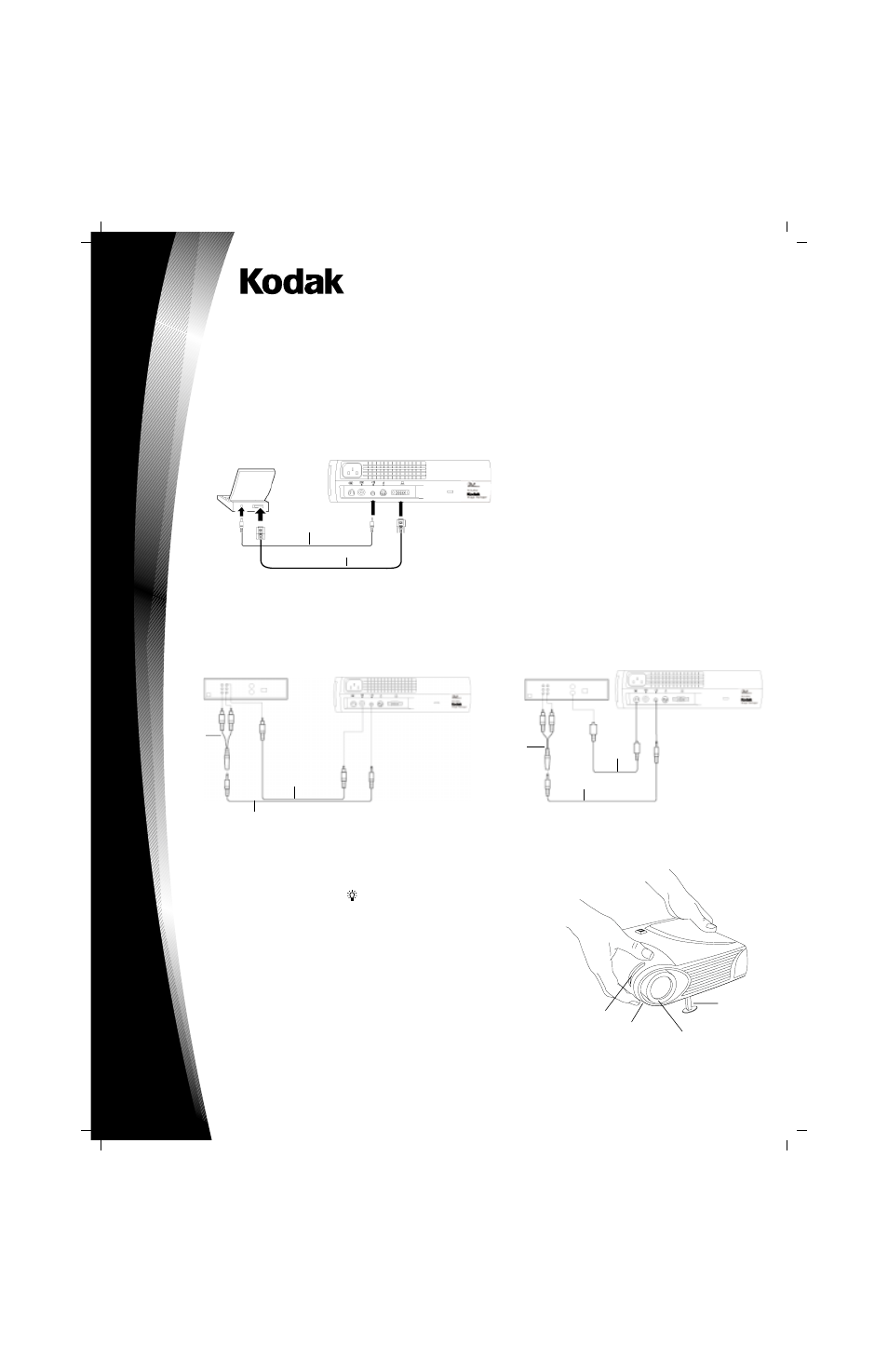

Connecting the Projector

Icons on the projector will aid you when connecting the projector to a computer or video player.

Caution: Turn off the computer, monitor and projector whenever you connect the components.

Connecting to a Computer

Connecting to a Video Player

If your video player uses a round, four-prong S-video connector, you’ll need an S-video cable in addition to the audio cable and audio adapter.
Note: The S-video cable is sold separately.

Connecting with Video Cable

Connecting with S-video Cable

Starting the Projector

1. Remove the lens cap.
2. Plug the power cord into the side of the projector, then plug it into your electrical outlet.
3. Turn on the lamp by pressing the

button on the keypad.

4. Turn on your video source - a video player or a computer.
5. Position the projector and adjust the zoom setting for the image size you want.

• Adjust the zoom ring.
• Focus by rotating focus ring.
• Be sure the projector is at a 90-degree angle to the screen.
• Adjust the height of the projector. Press and hold the elevator button. Raise the projector

to the height you want, then release the button.

Audio cable

Data cable

Video cable

Audio cable

Audio
adaptor

Elevator foot

Elevator button

Audio cable

Audio
adaptor

S-video
cable

Zoom ring

Focus ring
