Layout considerations for the cs8900a, General guidelines, Power supply connections – Cirrus Logic AN83 User Manual
Page 35: Two layered printed circuit board (pcb), Multi-layered printed circuit board, Routing of the digital signals, Routing of the analog signals, General guidelines power supply connections, An83

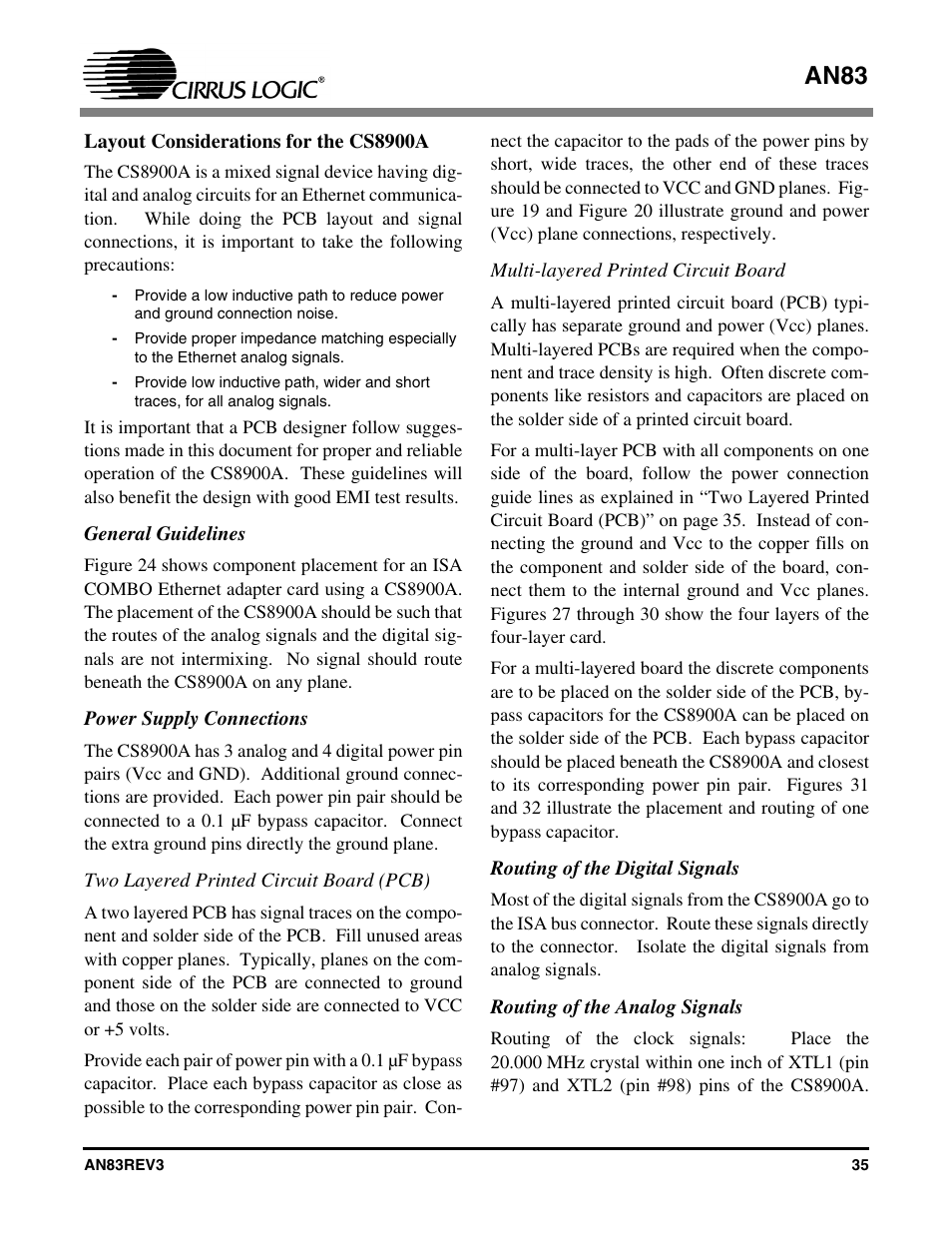

Layout considerations for the cs8900a, General guidelines, Power supply connections | Two layered printed circuit board (pcb), Multi-layered printed circuit board, Routing of the digital signals, Routing of the analog signals, General guidelines power supply connections, An83 | Cirrus Logic AN83 User Manual | Page 35 / 58 See also other documents in the category Cirrus Logic Hardware:
