CS5461A
6 DS661F3

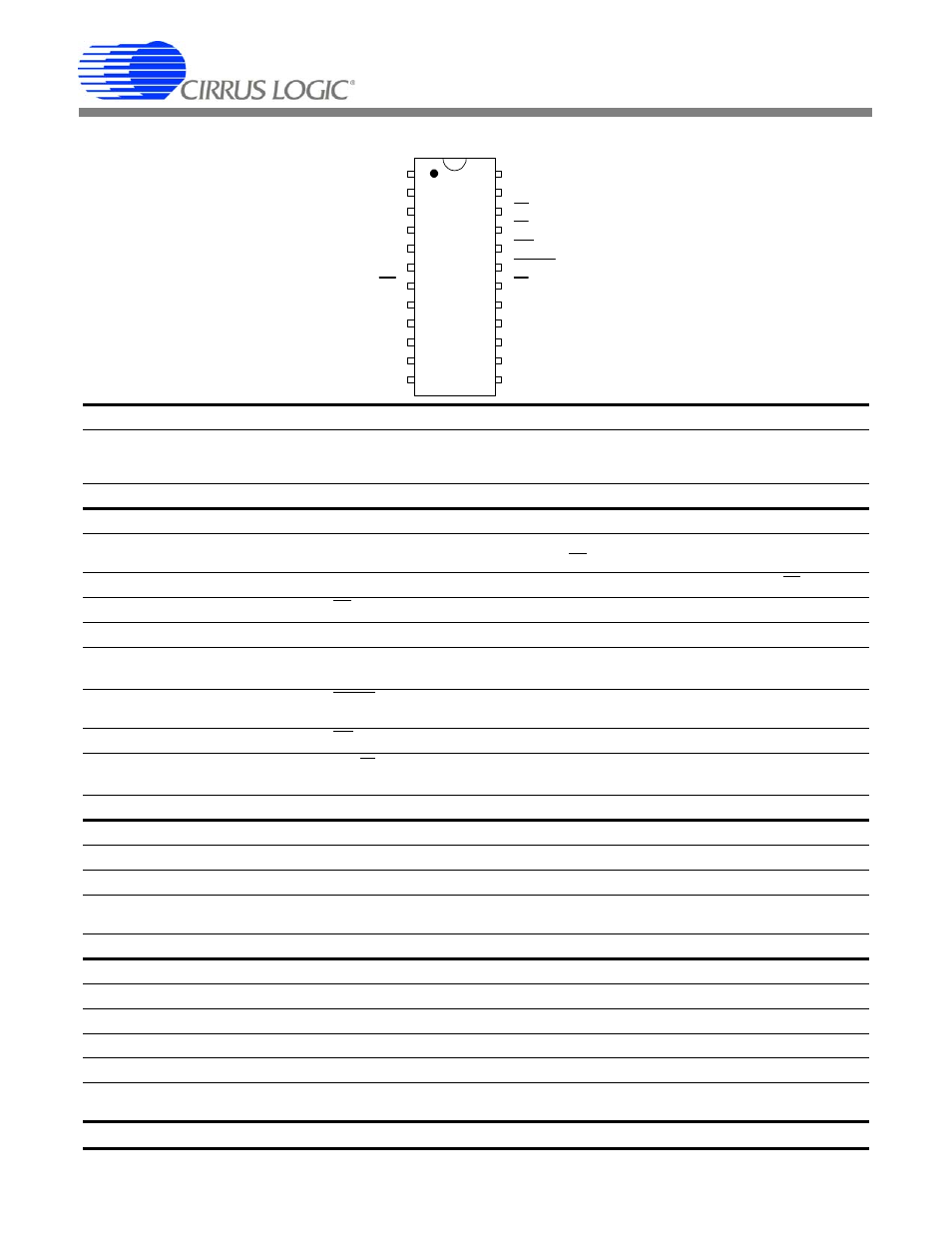

2. PIN DESCRIPTION
Clock Generator
Crystal Out
Crystal In 1,24 XOUT, XIN - The output and input of an inverting amplifier. Oscillation occurs when connected to
a crystal, providing an on-chip system clock. Alternatively, an external clock can be supplied to
the XIN pin to provide the system clock for the device.
CPU Clock Output 2 CPUCLK - Output of on-chip oscillator which can drive one standard CMOS load.
Control Pins and Serial Data I/O
Serial Clock Input 5 SCLK - A Schmitt Trigger input pin. Clocks data from the SDI pin into the receive buffer and out of
the transmit buffer onto the SDO pin when CS is low.
Serial Data Output 6 SDO -Serial port data output pin.SDO is forced into a high impedance state when CS is high.
Chip Select 7 CS - Low, activates the serial port interface.
Mode Select 8 MODE - High, enables the “auto-boot” mode. The mode pin is pulled low by an internal resistor.
High Frequency Energy
Output 18 E3 - Active low pulses with an output frequency proportional to the active power. Used to assist
in system calibration.
Reset 19 RESET - A Schmitt Trigger input pin. Low activates Reset, all internal registers (some of which
drive output pins) are set to their default states.
Interrupt 20 INT - Low, indicates that an enabled event has occurred.
Energy Output 21,22 E1, E2 - Active low pulses with an output frequency proportional to the active power. Indicates if
the measured energy is negative.
Serial Data Input 23 SDI - Serial port data input pin. Data will be input at a rate determined by SCLK.
Analog Inputs/Outputs
Differential Voltage Inputs 9,10 VIN+, VIN- - Differential analog input pins for the voltage channel.
Differential Current Inputs 15,16 IIN+, IIN- - Differential analog input pins for the current channel.
Voltage Reference Output 11 VREFOUT - The on-chip voltage reference output. The voltage reference has a nominal magni-
tude of 2.5 V and is referenced to the AGND pin on the converter.
Voltage Reference Input 12 VREFIN - The input to this pin establishes the voltage reference for the on-chip modulator.
Power Supply Connections
Positive Digital Supply 3 VD+ - The positive digital supply.
Digital Ground 4 DGND - Digital Ground.
Positive Analog Supply 14 VA+ - The positive analog supply.
Analog Ground 13 AGND - Analog ground.
Power Fail Monitor 1 7 PFMON - The power fail monitor pin monitors the analog supply. If PFMON’s voltage threshold is
not met, a Low-Supply Detect (LSD) bit is set in the status register.
VREFIN 12 Voltage Reference Input
VREFOUT 11 Voltage Reference Output
VIN- 10 Differential Voltage Input
VIN+ 9 Differential Voltage Input
MODE 8 Mode Select
CS 7 Chip Select
SDO 6 Serial Data Ouput
SCLK 5 Serial Clock
DGND 4 Digital Ground
VD+ 3 Positive Digital Supply
CPUCLK 2 CPU Clock Output
XOUT 1 Crystal Out
AGND 13 Analog Ground
VA+ 14 Positive Analog Supply
IIN- 15 Differential Current Input
IIN+ 16 Differential Current Input
PFMON 17 Power Fail Monitor
E3 18 High Frequency Energy Output
RESET 19 Reset
INT 20 Interrupt
E1 21 Energy Output 1
22
SDI 23 Serial Data Input
XIN 24 Crystal In
E2 Energy Output 2
