CS5461A
DS661F3 35
7. SYSTEM CALIBRATION
7.1 Channel Offset and Gain Calibration
The CS5461A provides digital DC offset and gain com-
pensation that can be applied to the instantaneous volt-
age and current measurements, and AC offset
compensation to the voltage and current RMS calcula-
tions.
Since the voltage and current channels have indepen-
dent offset and gain registers, system offset and/or
gain can be performed on either channel without the
calibration results from one channel affecting the oth-
er.
The computational flow of the calibration sequences are
illustrated in
Figure 9 . The flow applies to both the volt-
age channel and current channel.
7.1.1 Calibration Sequence
The CS5461A must be operating in its active state and
ready to accept valid commands. Refer to
Section 5.14
Commands on page 23. The calibration algorithms are
dependent on the value N in the Cycle Count Register
(see
Figure 9 ). Upon completion, the results of the cali-
bration are available in their corresponding register. The
DRDY bit in the Status Register will be set. If the DRDY
bit is to be output on the INT pin, then DRDY bit in the
Mask Register must be set. The initial values stored in
the AC gain and offset registers do affect the calibration
results.
7.1.1.1 Duration of Calibration Sequence
The value of the Cycle Count Register (N) determines
the number of conversions performed by the CS5461A
during a given calibration sequence. For DC offset and
gain calibrations, the calibration sequence takes at least
N + 30 conversion cycles to complete. For AC offset
calibrations, the sequence takes at least 6N + 30 ADC
cycles to complete, (about 6 computation cycles). As N
is increased, the accuracy of calibration results will in-
crease.
7.1.2 Offset Calibration Sequence
For DC- and AC offset calibrations, the VIN
 pins of the
voltage and IIN
 pins of the current channels should be
connected to their ground-reference level.
See
Figure 10 .
The AC offset registers must be set to the default
(0x000000).
7.1.2.1 DC Offset Calibration Sequence
Channel gain should be set to 1.0 when performing DC
offset calibration. Initiate a DC offset calibration. The DC
offset registers are updated with the negative of the av-
erage of the instantaneous samples taken over a com-
putational cycle. Upon completion of the DC offset
calibration the DC offset is stored in the corresponding
DC offset register. The DC offset value will be added to
each instantaneous measurement to cancel out the DC

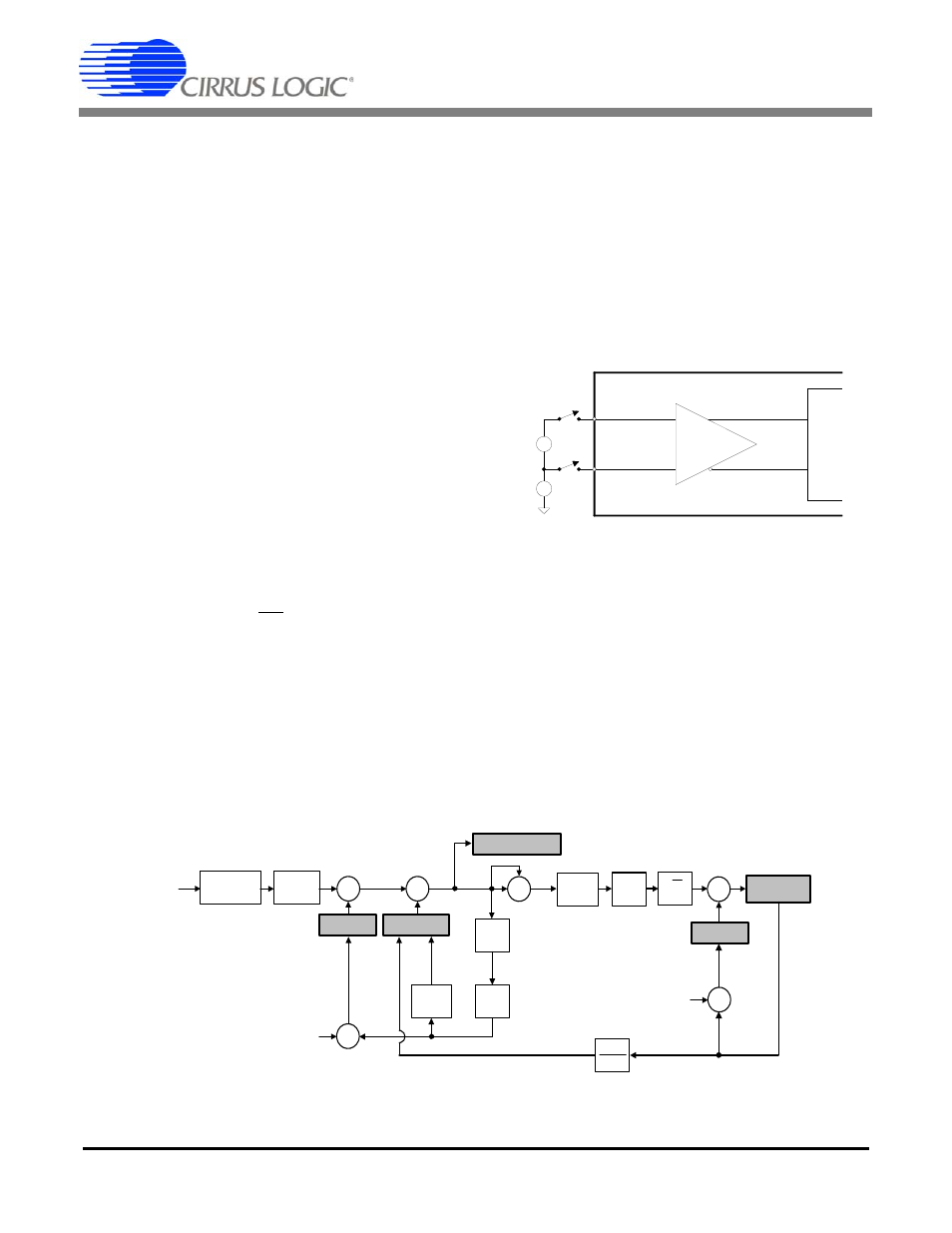

Figure 9. Calibration Data Flow
In Modulator + X
to V*, I* Registers
Filter
N
V
RMS
*, I
RMS
*
Registers

DC Offset* Gain*
0.6
+ +
+
* Denotes readable/writable register
N  + X

 N
Inverse
X -1
RMS
AC Offset*
 N
X -1
+
+
-
XGAIN
+
-
External
Connections
0V +
-
AIN+
AIN-
CM + -
Figure 10. System Calibration of Offset.
