1. PIN DESCRIPTIONS

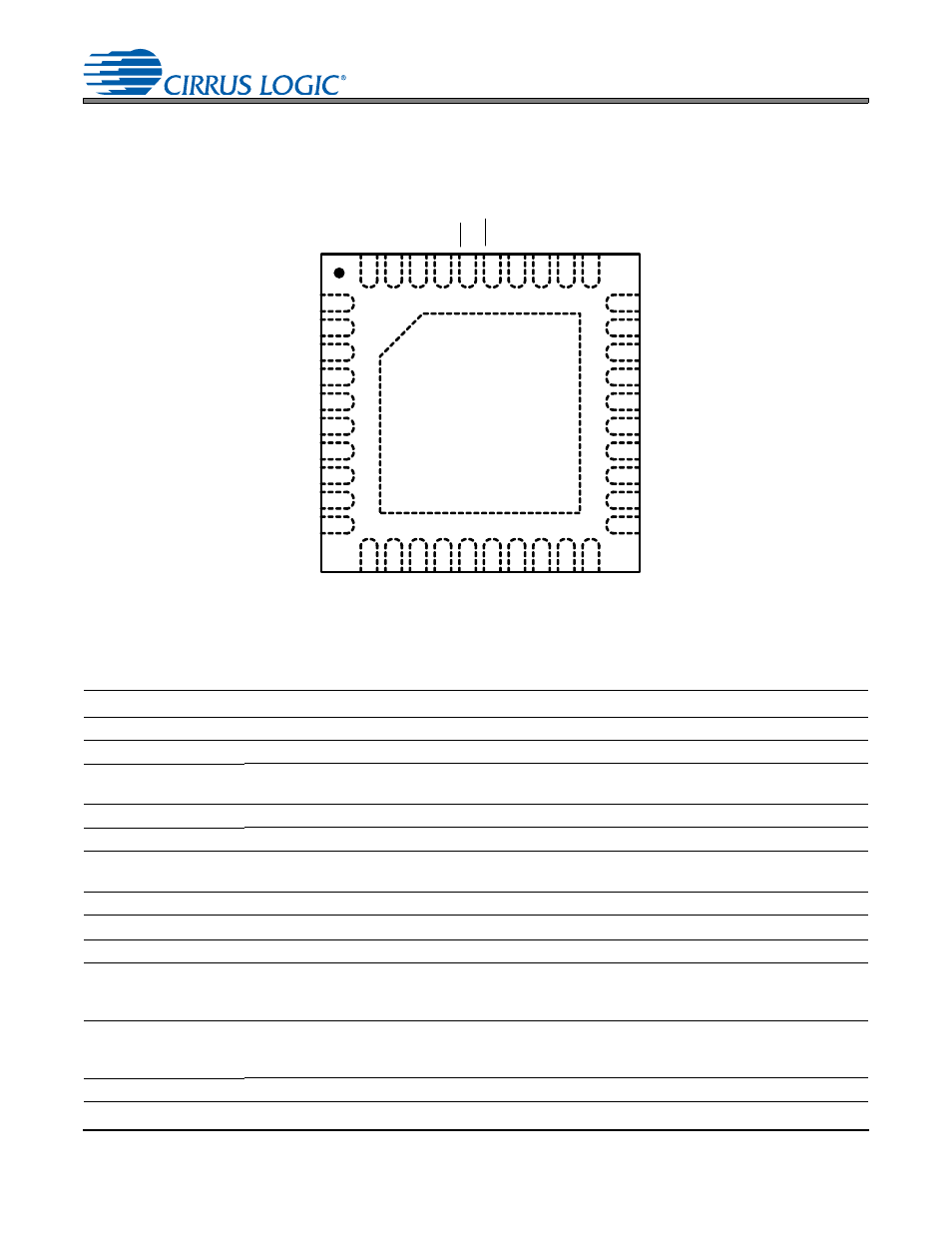

Figure 1. CS4244 Pinout
Pin Name Pin # Pin Description
SDA 1 Serial Control Data (Input/Output) - Bi-directional data I/O for the I²C control port.
SDINx 2,3 Serial Data Input (Input) - Input channels serial audio data.
FS/LRCK 4
Frame Synchronization Clock/Left/Right Clock (Input/Output) - Determines which channel or
frame is currently active on the serial audio data line.
MCLK 5 Master Clock (Input) -Clock source for the internal logic, processing, and modulators.
SCLK 6 Serial Clock (Input/Output) -Serial Clock for the serial data port.
SDOUT1 7
Serial Data Output 1 (Output) - ADC data output into a multi-slot TDM stream or AIN1 and AIN2
ADC data output in Left Justified and I²S modes.
VL 8 Interface Power (Input) - Positive power for the digital interface level shifters.
GND 9,21 Ground (Input) - Ground reference for the I/O and digital, analog sections.
VDREG 10 Digital Power (Output) - Internally generated positive power supply for digital section.
AINx+
11,13,15,
17
Positive Analog Input (Input) - Positive input signals to the internal analog to digital converters. The
full scale analog input level is specified in the Analog Input Characteristics tables on pages
11 and
12 .
AINx-
12,14,16,
18
Negative Analog Input (Input) - Negative input signals to the internal analog to digital converters.
The full scale analog input level is specified in the Analog Input Characteristics tables on pages
11
and 12 .
FILT+ 19 Positive Voltage Reference (Output) - Positive reference voltage for the internal ADCs.
