12 WIKA operating instructions pressure transmitter, model HP-2
11379180.03 09/2013 GB/D/F/E
GB
6. Commissioning, operation
Circular connector M12 x 1 (4-pin)
2-wire 3-wire
4 3
1 2
U
B
1 1
0V 3 3
S+ - 4
Cable outlet
2-wire 3-wire
U
B
brown brown
0V green green
S+ - white
Angular connector DIN 175301-803 A
2-wire 3-wire
U
B
1 1
0V 2 2
S+ - 3
USB connector type A
+5V 1
GND 4
D+ 3
D- 2
Electrical connection Wire cross-section Cable ∅ Cable
lengths
Angular connector DIN 175301-803 A max. 1.5 mm 2 6 ... 8 mm -
Circular connector M12 x 1 (4-pin) - - -
USB connector type A - - 2 m
Cable outlet 0.5 mm 2 (AWG 20) 6.8 mm 1.5 m

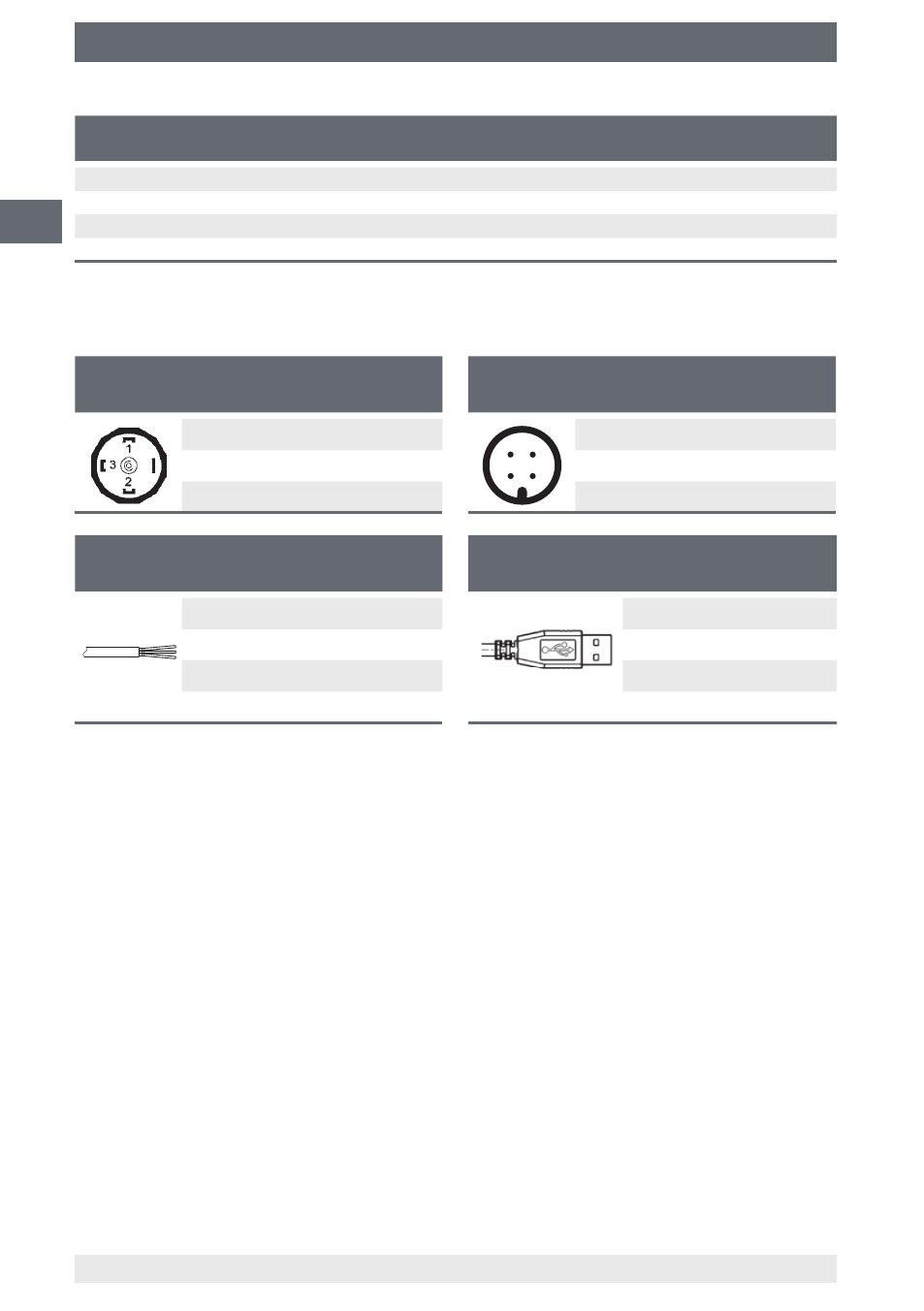

Connection diagrams
For abbreviations see page 5
