Your Composite / s-Video / Audio Switcher
4

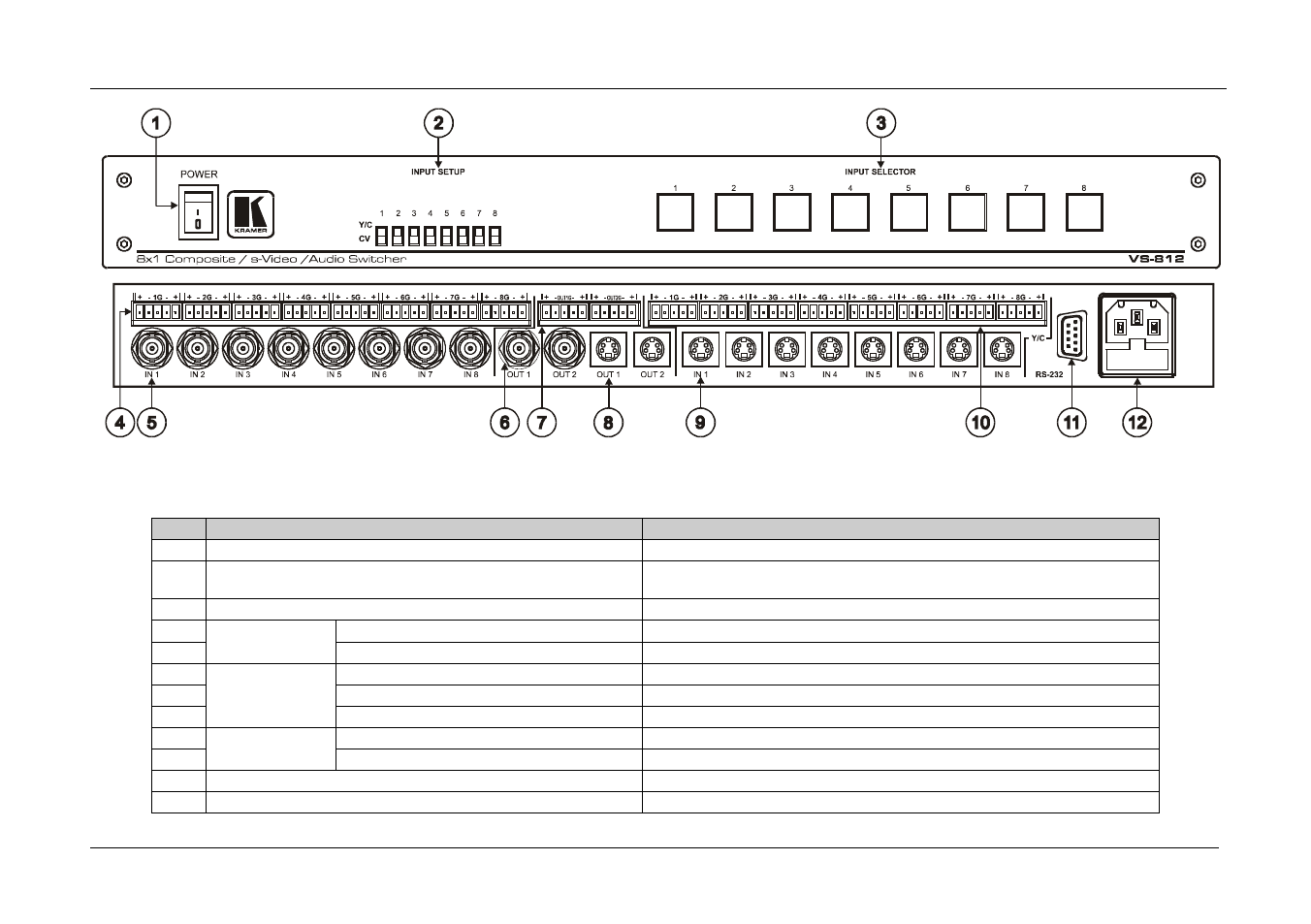

Figure 1: VS-812 8x1 Composite / s-Video / Audio Switcher
Table 1: Front Panel VS-812 8x1 Composite / s-Video / Audio Switcher Features
# Feature Function
1 POWER Switch Switch for turning the unit ON or OFF
2 INPUT SETUP DIP-switches Set the video format, Y/C or CV, for each input (from 1 to 8) selected via an
INPUT SELECTOR button
3 INPUT SELECTOR Buttons Select the video / audio source (from 1 to 8)
4 Composite Video
IN Audio 5-pin Terminal Block Connectors Connect to the eight audio (for the composite video) sources (from 1 to 8)
5 BNC Connectors Connect to the composite video sources (1 to 8)
6 OUT Composite Video BNC Connectors Connect to the composite video acceptors (1 to 2)
7 Audio 5-pin Terminal Block Connectors Connect to the two audio (composite video and s-Video) acceptors (from 1 to 2)
8 s-Video 4-pin Connectors Connect to the s-Video acceptors (1 to 2)
9 IN s-Video 4-pin Connectors Connect to the s-Video sources (1 to 8)
10 Audio (s-Video) 5-pin Terminal Block Connectors Connect to the eight audio (for the s-Video)sources (from 1 to 8)
11 RS-232 9-pin D-sub Connector Connects to PC or Serial Controller
12 Power Connector with Fuse AC connector enabling power supply to the unit
