Figure 36: infrared remote control transmitter – Kramer Electronics VP-771 User Manual

Page 61

VP-771 - Controlling the VP-771

8.5

Controlling via the Infrared Remote Control Transmitter

You can control the VP-771 from the infrared remote control transmitter:

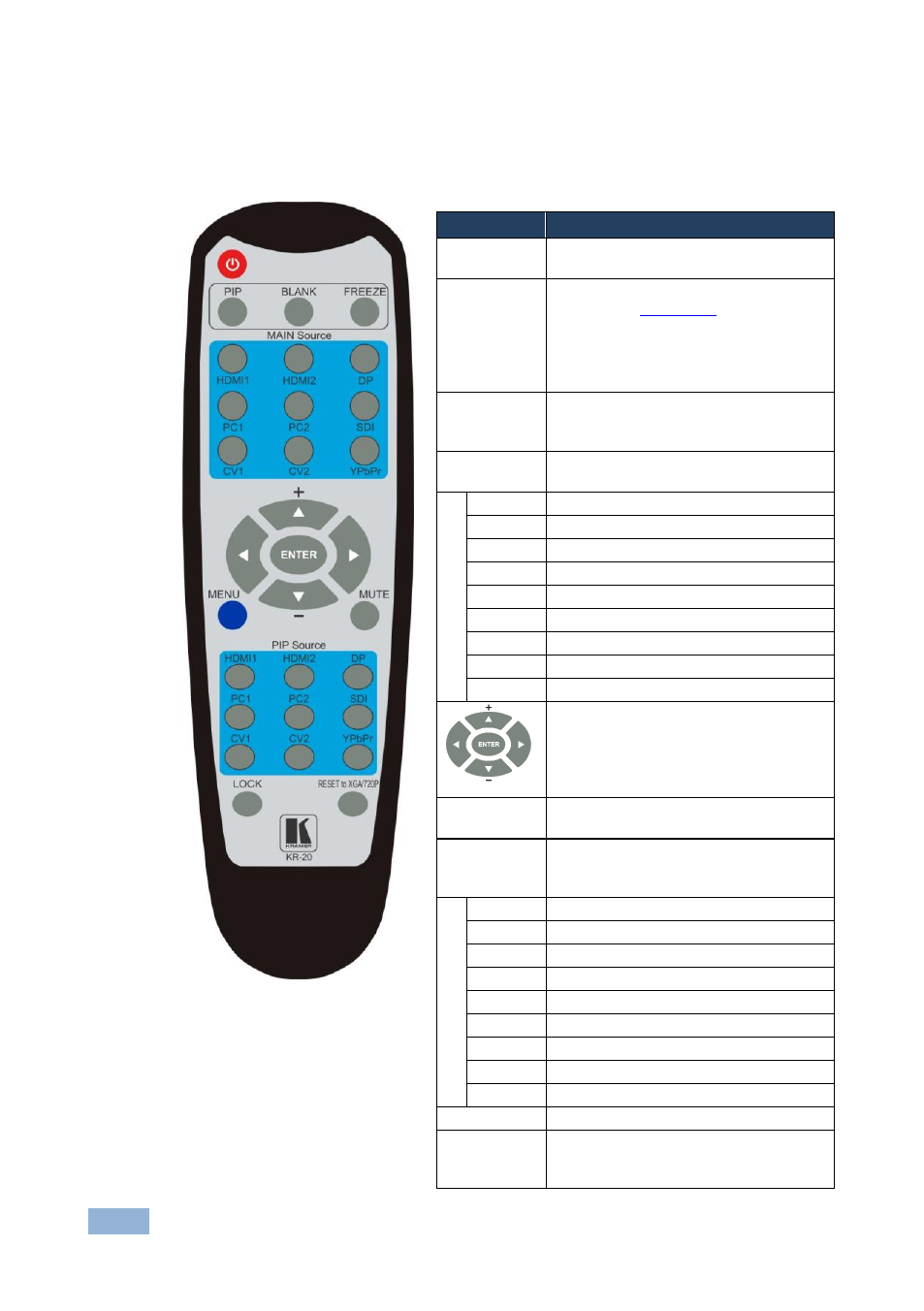

Figure 36: Infrared Remote
Control Transmitter

Keys

Function

POWER

Toggle the power save mode ON or
OFF

PIP

Enter the dual window mode (the latest
setting), see

Section

7.2

Note that while browsing the OSD menu
in the dual window mode, a short press
of the PIP button will instantly toggle the
window control (between Main and PiP)

BLANK

Toggle between a blank screen black
screen and the display (for both
windows)

FREEZE

Freeze/unfreeze the output video image
(for both windows)

IN S

HDMI1

Select the HDMI 1 input

HDMI2

Select the HDMI 2 input

Select the DisplayPort input

PC1

Select the UXGA 1 input

PC2

Select the UXGA 2 input

SDI

Select the SDI input

CV1

Select the composite video 1 input

CV2

Select the composite video 2 input

YPbPr

Select the component video input

Press ENTER to access menu levels
(when in the OSD)
Use the up and down arrows to adjust
numerical values and adjust the output
volume level (when not within the OSD)

Enter/Exit the OSD menu and return to
the previous menu level

MUTE

Toggle between muting (blocking out
the sound) and enabling the audio
output

rce

HDMI1

Select the HDMI1 input

HDMI2

Select the HDMI2 input

Select the DisplayPort input

PC1

Select the UXGA 1 input

PC2

Select the UXGA 2 input

SDI

Select the SDI input

CV1

Select the composite video 1 input

CV2

Select the composite video 2 input

YPbPr

Select the component video input

LOCK

Lock the front panel buttons

RESET to
XGA/720P

Press and hold to reset to the default
resolution (toggles between RESET TO
XGA and 720p)
