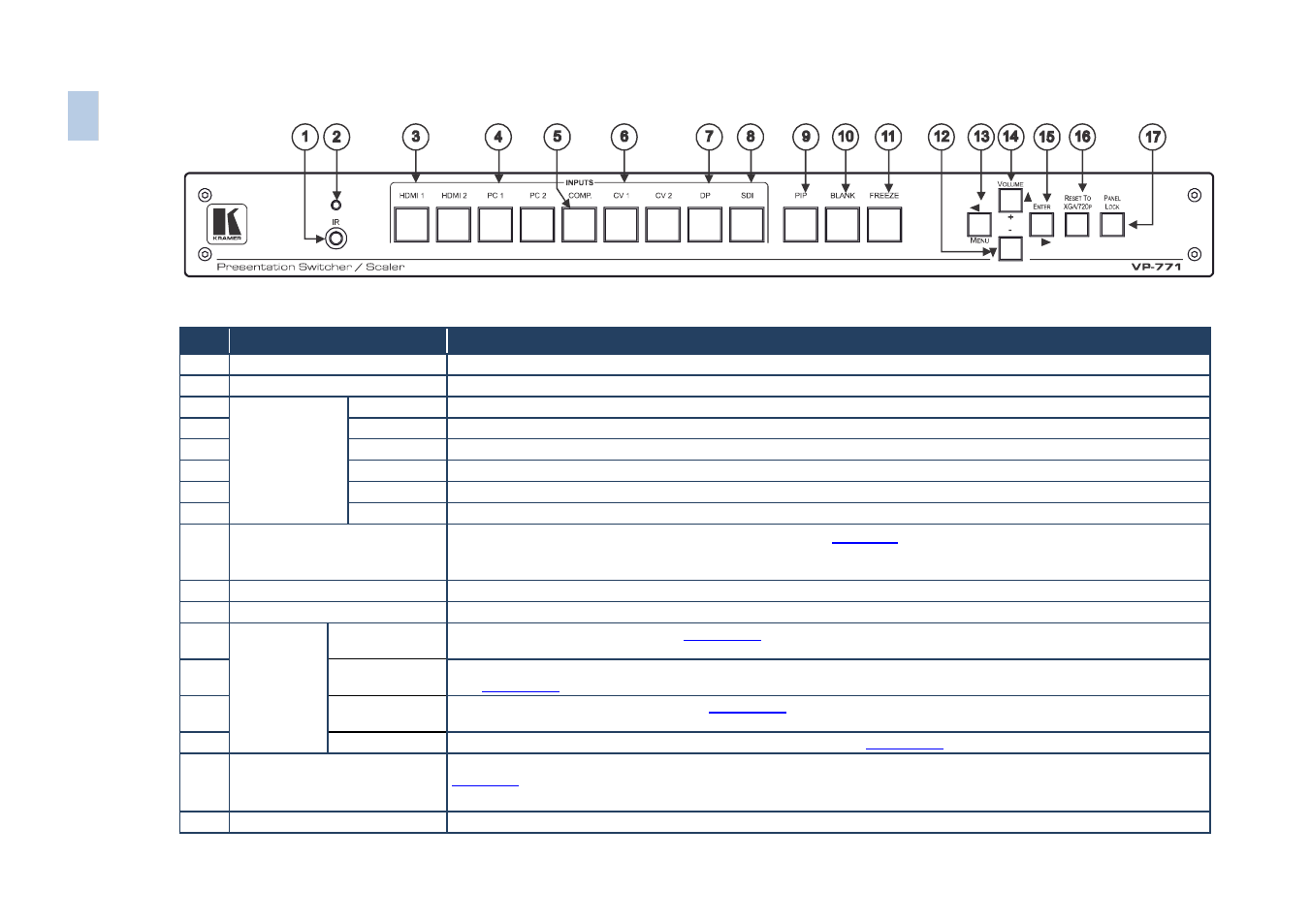

Figure 1: VP-771 Presentation Switcher/Scaler Front Panel
# Feature Function
1 IR Receiver Accepts IR remote commands
2 IR LED Lights red when the unit accepts IR remote commands
3 INPUT Selector
Buttons HDMI Press to select the HDMI input (from 1 to 2)
4 PC Press to select the computer graphics input (from 1 to 2)
5 COMP. Press to select the component video input
6 CV Press to select the composite video input (from 1 to 2)
7 DP Press to select the Display Port input
8 SDI Press to select the SDI input
9 PIP Button Toggles the dual window mode (Picture-in-Picture) function (see Section 7.2 )
Note that while browsing the OSD menu in the dual window mode, a long press of the PIP button will instantly toggle the window
control (between Main and PiP)
10 BLANK Button Press to toggle between a blank screen (blue or black screen) and the display
11 FREEZE Button Press to freeze/unfreeze the output video image
12 Navigation
Buttons /- Button Press to move down the menu list (see Section 8.1.1 ) and to decrease numerical values. When not within the OSD menu mode,
press to reduce the output volume
13 /MENU Button Press to access the OSD menu, exit the OSD menu and, when in the OSD menu, move to the previous level in the OSD screen
(see
Section 8.1.1 )
14
/+ /VOLUME
Button Press to move up the menu list values (see Section 8.1.1 ) and to increase numerical values. When not within the OSD menu
mode, press to increase the output volume
15 /ENTER Button Press to access sub-menu items and select from several settings (see Section 8.1.1 )
16 RESET TO XGA/720P Button Press to reset the video output resolution to XGA or 720p and change the deep color settings to Off on the output (see
Section 6.7 )
Press and hold for about 3 seconds to toggle between reset to XGA and reset to 720p
17 PANEL LOCK Button Press and hold for about 3 seconds to lock/unlock the front panel buttons
