Page 33

VP-771 - The OSD Menu

Setting

Function

Embedded

Set:
Pass-through

– to On to pass the digital audio input directly to the output

without any processing or set to Off to process the digital audio input

Note that this feature is disabled for the non-embedded audio
inputs (PC, CV, YUV).
In case the audio signal is encrypted or compressed set the
Pass-through to On. Note that in some cases there may not be
sufficient capacity to accurately transmit the audio.

Analog Takeover

– to On for the analog inputs of the HDMI and DP inputs

to take over the embedded inputs; select Off to use the embedded inputs

Analog takeover is available only if an unbalanced audio signal is connected
(via 3.5mm connecter). When set to On, the embedded audio is disabled as
long as the 3.5mm cable is connected to the 3.5mm mini jack

Delay

Set:
Lip Sync delay value [msec]

Mic Delay value [msec]

Power
Amplifier

Set the power amplifier (SPKR) level to Off or to levels 1 to 4

This submenu item is specific for the power amplifier, on top of the general volume
level

SDI
Channeling

Set the SDI channeling for groups A, B, C and D and connect the active and
the bypassed channels (see

Section

6.3.1

)

By default, groups A and B are connected and groups C and D are disconnected

Set the SDI channeling for groups A, B, C and D to Activate CH1, Activate
CH2 or Bypass. If other groups are set to Activate or Bypass, the remaining
groups are read as None

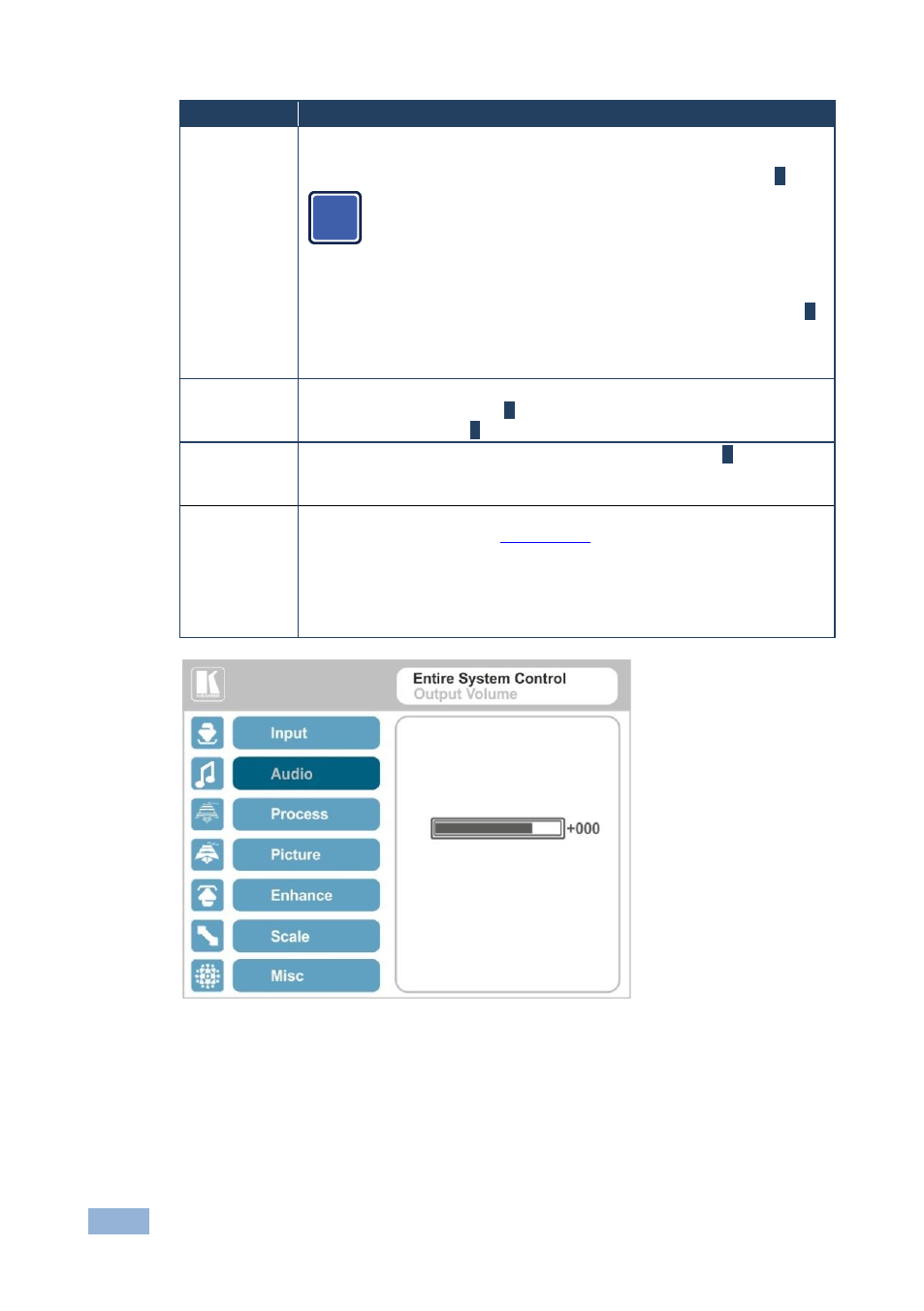

Figure 18: Set the Output Volume Level

6.3.1

SDI Channeling

SDI channeling includes four groups with two stereo channels each. Two of the

groups are always connected and the other two disconnected. You can select (via
