VP-771 - The OSD Menu 29
29
the OSD) one of the eight SDI embedded stereo audio channels, together with
three bypassed channels, to be routed to the input of a connected machine with
SDI audio channels (for example, the Kramer 6810HDXL
SDI/HD−SDI/3G Audio
Embedder/De−embedder, or the Kramer 6809HD HD/SD-SDI AES Embedder).
Within the two connected groups, one channel can be activated and
the remaining three channels are bypassed. The acceptor device
will input the channels as follows: the active channel is input as
Group A, CH1; the bypassed channel in the same group is input as
Group A, CH2; the two remaining bypassed channels are input as
Group B CH1 and CH2.

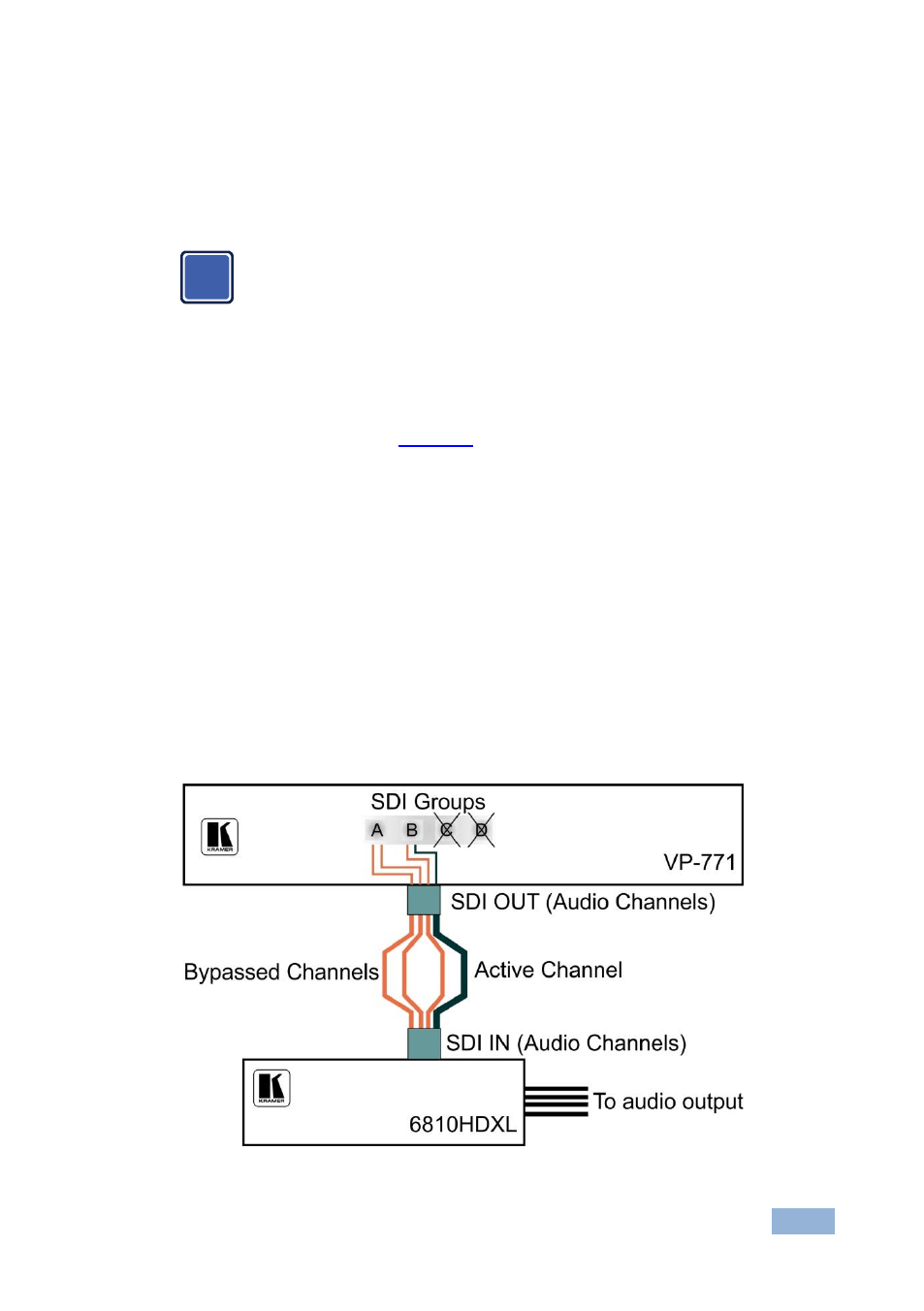

In the example illustrated in Figure 19 , channels C and D are disconnected and
channels A and B are connected (CH1 and CH2 in group A are bypassed, CH1 in
group B is bypassed and CH2 in group B is active).
These channels are input to the Kramer 6810HDXL, processed and output to an
audio acceptor:

The group B active CH2 signal is input as Group A, CH1

The group B bypassed CH1 signal is input as Group A CH2

The group A bypassed CH1 signal is input as Group B CH1

The Group A bypassed CH2 signal is input as Group B CH2
Figure 19: SDI Channeling Example
