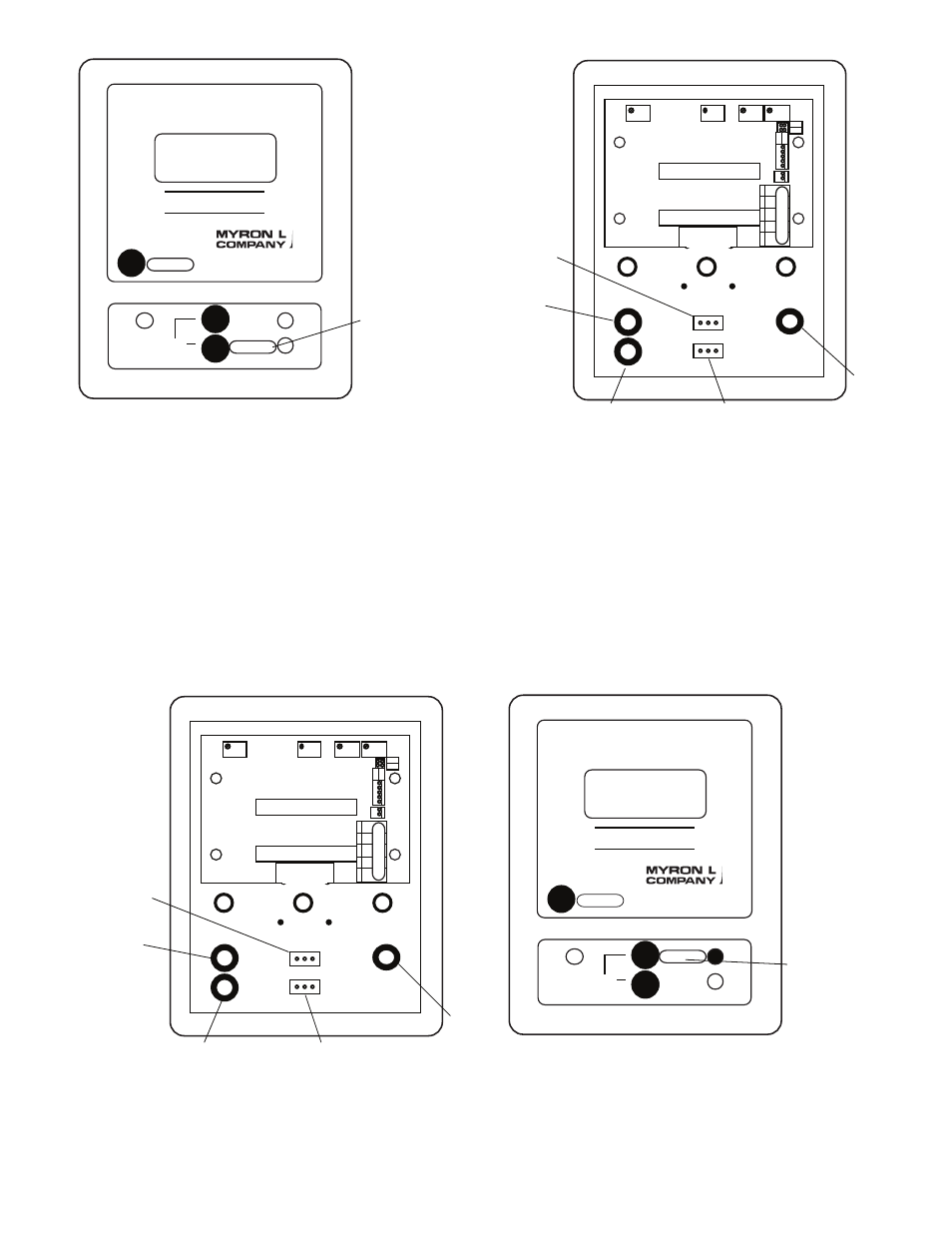

Front panel figure iii.d.10, Front panel rear view, Figure iii.d.11 front panel rear view – Myron L 729II User Manual
Page 41: Figure iii.d.12, Front panel figure iii.d.13, Temperature label location, Primary red led primary set point switch green led, Remove sc/sco set point switch and red led, Install tho set point switch and red led
8. Turn SCO Set Point control fully counter clockwise - it
may be 30 turns - until it clicks. See figure III.D.7 for
location.
9. Locate and remove JUMPER from option to the TPO
Module as shown in figure III.D.5.
10. Attach Brown 5 wire connector to option to be controlled,
i.e. TPO Module as shown in figure III.D.9.
11. Add TEMPERATURE label to UPPER front panel
covering the “HIGH” as shown in figure III.D.13.
12. Attach control leads to RELAY #2 as shown in figure
III.D.7.
13. Continue to Set Point Conversion or skip to “SPECIFIC
OPTION” Module Set Point adjust.
37
720
II
HIGH
SET POINT
FRONT PANEL
Figure III.D.10
TEMPERATURE
LABEL
LOCATION
TEMPERATURE
ORP
TEMPERATURE
TEMPERATURE
FRONT PANEL
Rear View
PRIMARY
RED LED
PRIMARY SET
POINT SWITCH
Green
LED
LOW
REMOVE
SC/SCO
SET POINT
SWITCH
and
RED LED
FS
ZERO
DIS
SP2
HYS2
DISPLAY CONNECTION
DISPLAY
SELECT
TEMP
CONTROL
HARNESS
DISPLAY
BRN
BLU
+
0-5VDC
-
INC
INC
TEMP
SENSOR
TP/TPO - TEMPERATURE MODULE
DEC DEC
BR
B
L
O
R
-
+
SPC
Figure III.D.11
FRONT PANEL
Rear View
Primary/Main CB
Red LED
Primary/Main CB
Set Point Switch
Green
LED
LOW
INSTALL
THO
SET POINT
SWITCH
and
RED LED
FS
ZERO
DIS
SP2
HYS2
DISPLAY CONNECTION
DISPLAY
SELECT
TEMP
CONTROL
HARNESS
DISPLAY
BRN
BLU
+
0-5VDC
-
INC
INC
DEC
TEMP
SENSOR
TP/TPO - TEMPERATURE MODULE
DEC DEC
BR
B
L
O
R
-
+
SPC
Figure III.D.12
720
II
LOW
SET POINT
FRONT PANEL
Figure III.D.13
TEMPERATURE
LABEL
LOCATION
TEMPERATURE
ORP
TEMPERATURE
TEMPERATURE
